4CH HDD & SD Card Mirror Records HD Vehicle DVR 720P Analog
Price:
negotiation
MOQ:
1 Unit
Delivery Time:
5~8 work days
Brand:
RECODA
Product Description

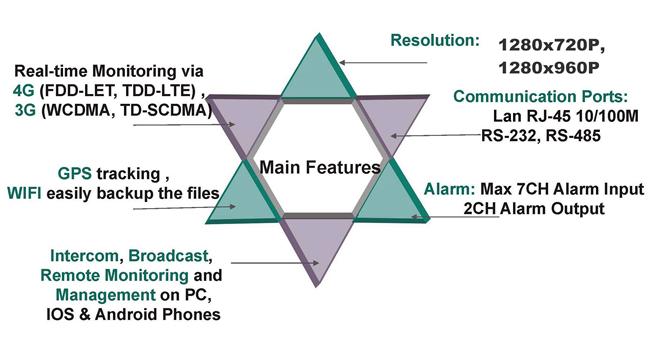

4CH HDD & SD Card Mirror Records 4G GPS WIFI G-SENSOR 720P Analog HD Mobile DVR
Description:
- 4 channel*720P or 1080P
- H.264 compression format
- 128GB SD Card & 2.5“ SATA 2TB Hard disk
- GPS positioning & route tracking
- 4G / 3G remote control
- built-in WIFI for optional
- 6 alarm input, 2 alarm output
- 2 way intercom
- Remote oil & power cut-off
- Mirror recording in SD card
- Patent UPS continuously working to protect data upon sudden power-off
- Customized GPS data format sending (optional)
- Built-in Heater(optional)
- Lockable, metal HDD handle, protect HDD efficiently
- Watermark and Time / Date stamp in exported images
Product Parameters:
| Video Technology | H.264(Data encryption, need to use the playback software to play the videos) |
| Storage interface |
Standard SATA HDD, SD Card and USB devices |
| Storage Capacity | 2.5’’ SATA 2TB HDD & 128GB SD |
| Storage mode | Boot record, cycle recording |
| Camera | AHD standard camera |
| Video Standard | PAL system or NTSC system (Please make sure the camera’s video standard compatible to the DVR) |
| Resolution | 4ch AHD 720P recording, also support the playback function while recording. |
| Frame rate | PAL(1~100FPS optional) and NTSC(1~120FPS optional) |
| Video quality | Multi-grade adjustable |
| Output signal | CVBS (4ch video + 4ch audio,but only support 1ch audio output at a same time) |
| Ethernet Port | One 10M/100M Ethernet port (RJ45) |
| Alarm input | 6ch independent alarm input port (isolating function) |
| Alarm output | 2ch independent alarm output port |
| USB Standard | 1 USB 2.0 port (support USB backup and system upgrade) |
| IR Receiver | One IR receiver(beside the USB port) |
| Power Supply | Car battery / Power adapter(For other applications) |
| Power input | DC12V~DC36V(Standard power input:DC12V~DC24V, ultimate power input: DC6V~DC36V) |
| Power output | DC12V/3A (Provide power for cameras, with built in re-settable fuses. ) |
| Working temperature | - 10℃~ + 50℃ (ultimate working temperature: - 20℃~ + 60℃) |
Notes:
- Smartphone App, Client Management & Server software are free to provide for you.
- For server setup, you need to get a static IP address from your local network provider.
- And we accept you to use our Server, one device will be charged $35 each year.
