1.3MP AHD Camera Sony CMOS Image Sensor Color Waterproof CCTV Vehicle Camera
Price:
negotiation
MOQ:
1
Delivery Time:
3-5days after receiving your payment
Brand:
RECODA
Product Description
1.3MP AHD Camera Sony CMOS Image Sensor Color Waterproof CCTV Vehicle Camera
Main Features:
Sensor: 1/3” CMOS Sensor AR0130
Resolution: 1.3M pixels
Lens: 3.6mm
Pan Adjusting: +/-180 Degree
Tilt Adjusting: 0-62 Degree
Weatherproof: IP67
Specifications:
Model |
CM07-AHD 1.3MP |
| Pick up Device | 1/3” CMOS Sensor AR0130 |
| TV System | PAL |
| Picture Elements | 1280(H)*960(V) |
| Effective pixels | 1.3M pixels |
| Day-night mode | External control (default) / Auto / color / black and white |
| Infrared Spectrum | N/A |
| S/N Ratio | More Than 44 dB, (AGC Off) |
| Auto Gain Control | Auto |
| White Balance | Auto |
| Electronic Shutter | AUTO/ 1/50(1/60)-1/100,000sec |
| Back Light Compensation | Auto |
| Infrared LED | N/A |
| Infrared LED Range | N/A |
| Video output | 1 Vp-p, 75ΩComposite, 4 ways Din Jack |
| Audio Output | N/A |
| Mirror | N/A |
| Lens | Standard f3.6mm Fixed Megapixel Lens |
| Lens Mount | M12XP0.5mm Thread |
| Pan Adjusting | +/-180 Degree |
| Tilt Adjusting | 0-62 Degree |
| Video footage to take up space | 1min≈32MB |
| Power Supply | 12V DC ±10% |
| Power Consumption | 150mA |
| Dimensions(L x W x H) | 73 x 58 mm |
| Net Weight | 168 g |
| Weatherproof | IP67 |
| Operating Temperature | -20°C to +50°C |

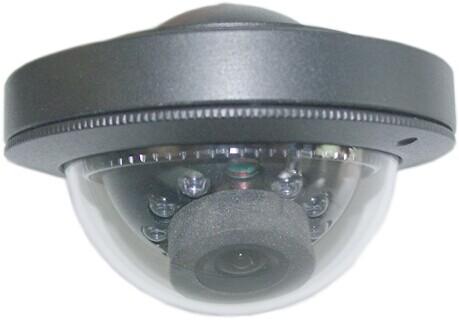

Products's Picture:
Operation procedures:
Fig.1
Fig.2
- Use the torx-key supplied (1) to loosen the torx-type screw (3) then unscrew the top cover (2).
- Attached the mounting base (4) to wall or ceiling, Use the supplied screw (3) to fix camera in position ~ a firm mounting surface is essential for a stable installation.
- Connect the DC jack to 12VDC and connect the BNC jack to video output.
- Adjust camera position by loosening the inner knurled ring (6), adjust the focus sharpness by loosening the focus-lock screw (5).
Fig.1 shows the camera flush-mounted eg. on a ceiling tile, where the surface can be bored to accommodated the back of the camera housing(4).
Fig.2 shows the method for the panning and tilting the camera. Loosen the locked ring (6) and position the camera as required.
Packing list:
Camera 1
Instruction Manual 1
Mounting Screw 4
M2.5 Hex Screw 1
