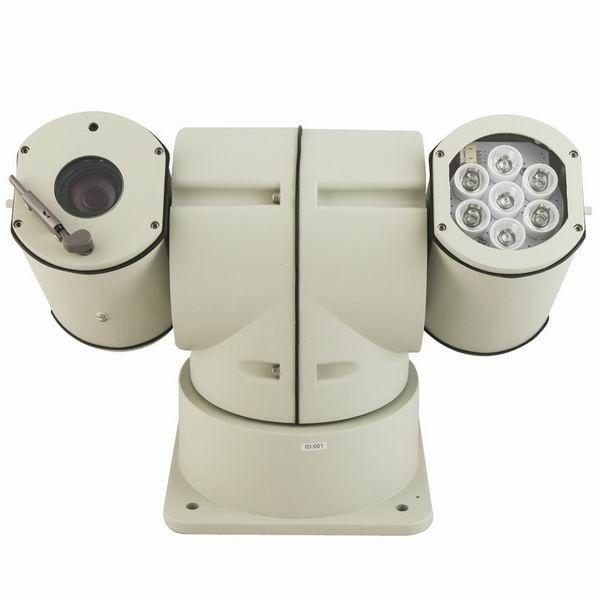

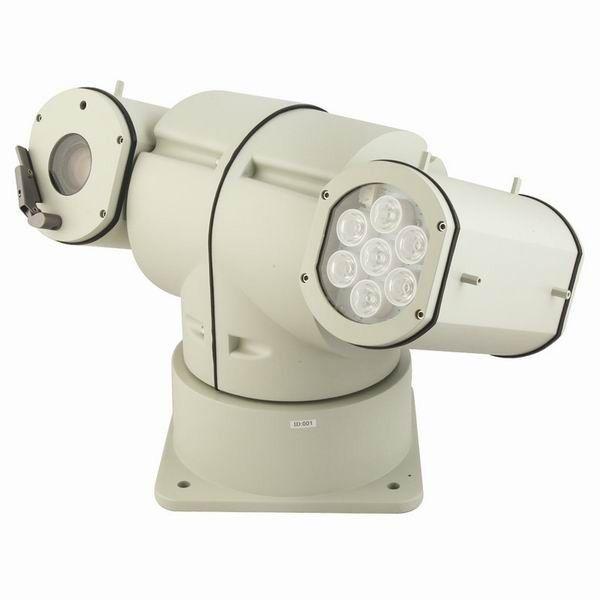

C812 Car PTZ Camera X36 Sony 1010P With 120M IR Distance PTZ Security Camera
C812 Car PTZ Camera X36 Sony 1010P With 120M IR Distance PTZ Security Camera
Specification:
1. Sony 1010P with X36 zoom
2. Built-in wiper function
3. 360 ° endless azimuth rotation , 180 ° angle looking up, without blind spots
4. Built-in defrosting,constant temperature device for using in low temperature location
5. IR Night vision 100-120m
6. Waterproof:IP 67
7. Power supply: DC12V (3.5A vehicle)
| Image sensor | 1/4″ IT EXVIEW HAD CCD |
| Pixel | 752(H) X 582(V) |
| Synchronous System | Internal synchronization |
| Video Output | VBS 1.0vp-p/75 ohm |
| White Balance | Auto/Manual |
| Scanning System | 15.625KHz(H) 50Hz(V) |
| Horizontal Resolution | 480TVL |
| S/N Ratio | ≥50dB |
| Electronic Shutter | 1/50~1/10,000S |
| Minimum Illumination | 0.09LUX;0LUX |
| Focus | 18X optical Zoom, 12X digital zoom |
| Communication | RS485, PELCO-D/P,samsung,SAE,Kalatel |
| Visitatorial track | 8 |
| Self-learning function | Yes,30s |
| Horizontal angle | 360° no limitation |
| Horizotal scan speed | 0.5~120°/s |
| Vertical angel | -90°~+90° |
| Vertical scan speed | 0.5~110°/s |
| Preset point | 255 |
| IR LED | 15W, 810nm wave length, 6~15° |
| Laser&IR night vision | 100-120m |
| Baud rate | 2400～19200 |
| View distance | 1000m(daytime) |
| Preset point setting | PTZ specification |
| Power | DC 12V about 55W |
| Weight | 7 KG |
| waterproof level | IP66 |
| operation temperature | -35℃~+60℃ |
SON FCB-EX980 (27X), EX1010P(36X) optional
Our Company
Shenzhen Recoda is established in 2009, a manufacturer and developer that specializes in vehicle DVR, camera, and vehicle video fleet management system. By 6 years of experience in the security industry, we have developed vehicle-based video recording solutions for a diverse range of applications and industries, from business, families, to commercial fleets of any size.
FAQ
1. When there’s some problem of the product and I can not solve it, what should I do?
Please tell us the model number of what you bought, then submit a detail description of the problem, then our engineer can analyze the problem and tell you how to solve it.
2. What I can do When the car host video input interface is different from camera output interface?
The car uses 4 pin type while camera uses BNC or aviation head type, if not in correspondence. Please use conversion head for connection.
