CM02 AHD Car Reverse Camera 1.3 MP IR LED Waterproof AHD Car Backup Camera
Price:
negotiation
MOQ:
1 pcs
Delivery Time:
3-8 days after confirm the payment
Brand:
Recoda
Product Description

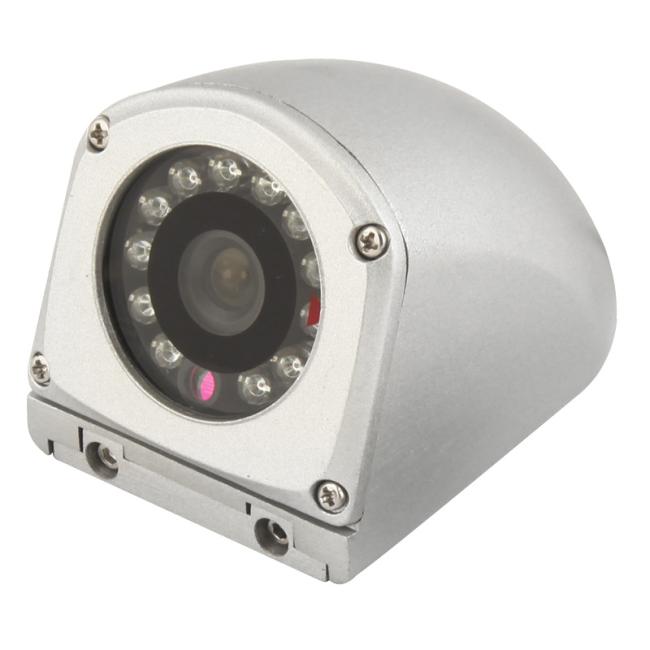

CM02 AHD Car Reversing Camera 1.3 MP IR LED Waterproof AHD Car backup camera
Description:
• Easy Installation Mechanical Design
• Vehicle IR Day/Night Metal Box Camera
• 960P(1280x960) AHD high definition Camera
• Top mounted ,left ,right and rear view optional
• Three colors optional
• Fixed lens 3.6/2.8mm
• 12pcs LEDs • DC12V
| Model | CM02-AHD ,1.3MP |
| Pick up Device | 1/3” CMOS Sensor AR0130 |
| TV System | PAL |
| Picture Elements | 1280(H)*960(V) |
| Effective pixels | 1.3M pixels |
| Day-night mode | External control (default) / Auto / color / black and white |
| Infrared Spectrum | 850nm |
| S/N Ratio | More than 48 dB, (AGC Off) |
| Auto Gain Control | Auto |
| White Balance | Auto |
| Electronic Shutter | AUTO/ 1/50(1/60)-1/100,000sec |
| Back Light Compensation | Auto |
| Infrared LED | 12 LEDs |
| Infrared LED Range | 8 m |
| Video output | 1 Vp-p, 75Ωcomposite ,4 ways Din jack x1 |
| Audio Output | N/A |
| Mirror | N/A |
| Power Consumption | 170mA |
| Lens | Standard f3.6mm Fixed Megapixel Lens |
| Lens Mount | M12XP0.5mm Thread |
| Video footage to take up space | 1min≈32MB |
| Power Supply | 12V DC ±10% |
| Dimensions(L x W x H) | 76.4 x 60.5 x 56mm |
| Net Weight | 203g |
| Weatherproof | IP67 |
| Operating Temperature | -10°C to +50°C |
Certification
School Bus Security Camera Installation Tips
1. Install security cameras inside the buses so you may monitor and record every seat within the cameras field of view. Depending on the buses size and layout you may need several cameras to accomplish this.
2. Install cameras on the outside of the bus facing the drivers view towards the road ahead and behind. You also have the option of installing a dashboard camera looking out from the inside to the road ahead or behind.
3. Consider using cameras to cover blind spots for the driver.
4. Install a small monitor next to or above the driver so they may monitor the children more closely.
