3G 4G WIFI GPS 4ch Hard Disk Car Dvr Analog HD 720P Car Black Box Mobile DVR
3G 4G WIFI GPS 4ch Hard Disk Car Dvr Analog HD 720P Car Black Box Mobile DVR
Feature:
* Supports 4CH 720P
* Standard H.264 video compression, support dual stream network transmission
*Support pentaplex operation: preview, record, playback, backup, network transmission
*Support maximum 2TB 2.5 inch HDD & 128GB SD Card
* Support alarm pre-recording & motion detection

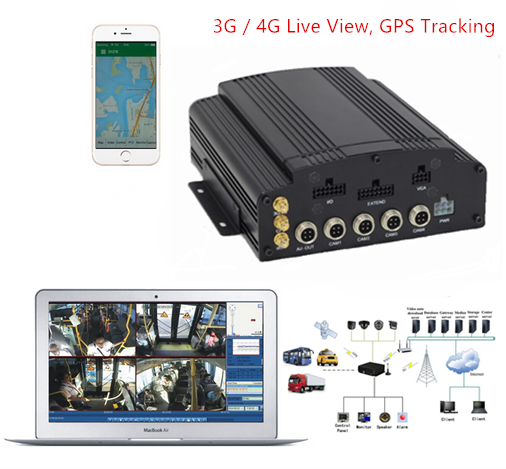

*Supports real-time remote viewing through 3G / 4G / WIFI (optional)
*GPS information embedded in screen (optional), support electronics fence and historical track playback
*Support time-lapse recording after the car is powered off
*Support recording and displaying the license plate number
*With password protection function
*Support PTZ control via RS-485 port
*Support transmitting DATA via network
*Support backup and upgrade with USB flash disk & USB hard disk

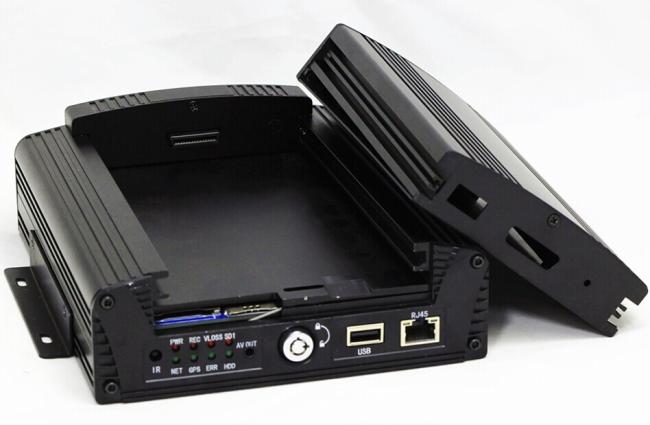

*Stable aluminum alloy structure
Specifications:
| Model | M710 |
| Product Name | 4 Channel AHD Car Mobile DVR ( HDD & SD Card Storage) |
| Operation System | Linux |
| Operation Interface | Graphical Interfaces, Chinese / English optional |
| System Privileges | User Password |
| Video Input | 4CH AHD Independent or CVBS Cameras Input: 1.0Vp-p,75Ω |
| Video Output | 1 Channel Output, 1.0Vp-p,75Ω, |
| Video Standard | PAL:25frames/Sec;NTSC:30frames/Sec |
| Audio Input | 4 Channels Independent Input |
| Recording Mode | Sound And Image Synchronization |
| Audio Compression | G711A |
| Image Compression | H.264 Fixed Code Stream |
| Image Format | 720P / D1 / CIF |
| Storage | Support Max 2TB HDD & 128GB SD Card |
| Alarm in | 6 Channels Independent Input. High Voltage Trigger |
| Alarm out | 2 Channels Independent output |
| Move Detection | available |
| Host Access | One 2.0 USB Disk Backup |
| Wire line Access | One RJ45 Ethernet Port |
| Wi-Fi | Wi-Fi Module optional |
| 3G | FDD-LTE / TD-LTE/ WCDMA / CDMA2000 Module |
| GPS | GPS Module built in |
| RS232 | Extensible, it’s convenient to connect with other vehicle equipment |
| RS485 | Extensible, it’s convenient to connect with other vehicle equipment and PTZ Camera |
| Intercom | Support, can provide the handy microphone if needs |
| G-Sensor | Yes |
| Power Consumption | DC10-36V ≤12W |
| Working Temperature | -20℃ ~ +85℃ ≤80% |
our service
1. Any inquires will be replied within 24 hours.
2. Professional Manufacturer, welcome customized orders.
3. 6 monthes replacement if no damage on the equipment. All our product have 1 year warrantly.

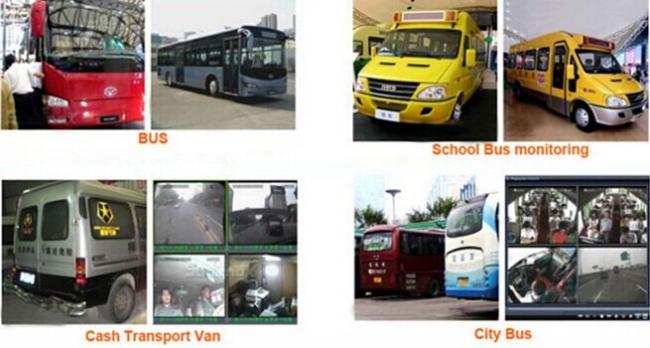

Application:
