Realtime Monitoring 720p 4Ch Full HD Mobile DVR with Max 2TB HDD / 64GB SD Card
Realtime Monitoring 4Ch Full HD 720p AHD GPS 4G 3G Vehicle Recorder Mobile DVR
Main Features:
Resolution: 1280x720P;
6CH Alarm Input, 2CH Alarm Output;
MAX 2TB hard driver & 128GB SD card ;
Built-in 3G / 4G GPS WIFI module;
GPS - Real-time GPS Tracking;
3G / 4G - Real time monitoring;
WIFI - WIFI auto downloading;
6-36V wide voltage ;
Specifications:
| Item | Parameter |
| OS | Linux |
| Language | English/Chinese/Customized |
| Video Compression | H.264 Compression |
| OSD | Overlays information such as date time and vehicle ID |
| Video Input / Output | 4CH 960P/720P AHD input, 1.0Vp-p, 75Ω, 1Ch Output |
| Resolution | 720P/D1/HD1/CIF, MAX:4 channels of 720P and 4 channels of D1 |
| Record Mode |
Timed recording, alarm trigger recording and manual recording are supported. |
| Audio Input | 4CH Aviation Plug Input |
| Audio Compression | G.726 compression, 8KB/s speed |
| Alarm Input | 7CH Alarm Input,1CH AD Input,impulse speed input,Alarm Linkage |
| Alarm Output | 2CH Alarm Output,Support Light/Sound alarm sensor,Oil/Power cut off |
| Interface |
3CH RS232, POS/Fuel Sensor/LED Advertisement Connection |
| Wireless Transmission |
Support Built in 3G ( WCDMA, CDMA2000,GPRS, EDGE); |
| GPS Position | Support Built GPS/BD Module |
| Storage | Max 2.5” 1TB HDD+128GB SD Card |
| Optional Functions | Voice Call,TTS Voice Broadcast,Serial Expand |
| Input Voltage | DC:+6V - +36V |
| Output Voltage | +12V~1.5A,+5V~1.5A |
| Power | Working <5W |
| Size | 200 (D)* 187(W)* 62(H) mm |
| Weight | 2kg |
Product Pictures:

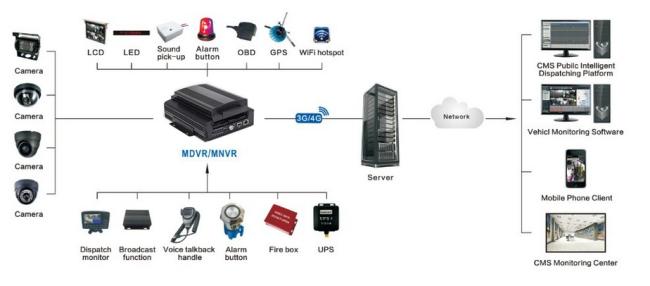

Working System:
Applications:
