IR HD CCTV Infrared Vehicle Camera , AHD Surveillance Vandal Proof Car Mounted Camera
Price:
negotiation
MOQ:
1
Delivery Time:
3 working days after payment confirmation
Brand:
RECODA
Product Description

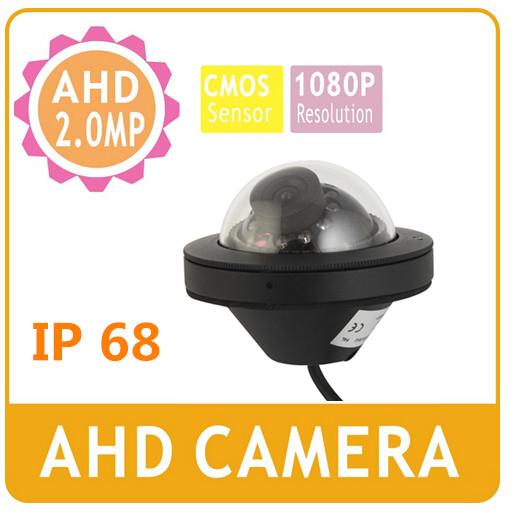

Metal Case AHD surveillance Vandal-proof IR HD CCTV Vehicle Mounted Dome Camera
Features:
- Metal-cased IP68 weatherproof micro dome with fixed lens.
- Low power consumption.
- Easy installation on ceiling or wall, surface or flush mount.
- 10 Infrared LEDs. 5M IR Range
- 1.3MP, 2MP Optional
Specifications:
Model |
C807-AHD ( 2MP ) | C807-AHD ( 1.3MP ) |
| Type | Metal infrared dome camera | |
| Image Sensor | 1/2.8 Sony IMX222 | 1/3” CMOS Sensor AR0130 |
| TV System | PAL/NTSC(OPTIOAL) | |
| Picture Elements | 1920H x 1080 V | 1280(H)*960(V) |
| Sensitivity | 0 Lux (LED on) | |
| Scanning System | progressive scan RGB CMOS | |
| Synchronization | Internal | |
| Infrared Spectrum | 850nm or 940 nm | 850nm |
| S/N Ratio | More than 50 dB, (AGC Off) | More Than 44 dB, (AGC Off) |
| Auto Gain Control (AGC) | Auto | |
| White Balance | Auto | |
| Electronic Shutter | Auto | |
| Back Light Compensation | Auto | |
| Infrared LED | 10LEDs | |
| Infrared LED Range | 5 Meters | |
| Video Output | AHD 1 Vp-p, 75Ω, | |
| Audio Output | N/A | |
| Mirror | N/A | |
| Gamma Ratio | 0.45 | |
| Auto-iris Lens Control | N/A | |
| Lens | f3.6mm Megapixel | |
| Exterior Focus Adjustment | N/A | |
| View Angle | 90° (D) | |
| Pan Adjusting | +/-180 Degree | |
| Tilt Adjusting | 0-62 Degree | |
| Power Supply | 12V DC (9V~18V) | |
| Power Consumption | 150 mA | |
| Dimensions (ø X H) | 77 x 60.3 mm | |
| Net Weight | 200 g | |
| Weatherproof/Water Proof | Weatherproof (IP68 for top side) | |
| Operating Temperature | -25°C to +60°C | |
Product Pictures:
AHD Camera Advantages:
