HD 1080P AHD Infrared Vehicle Mounted Camera for School Bus , Wide View Angle
Wide Angle Side View HD 1080P AHD Infrared School Bus Vehicle Mounted Camera
Main Features:
1) Resolution: 1.3 / 2 Megapixel
2) Lens:3.6mm
3) Min illumination:0Lux (LED ON)
4) IR LED:12pcs
5) Night Vision Distance: 8M
6) Waterproof: IP67
7) Voltage: 12V
Specifications:
Model |
CM02-AHD ,1.3MP | CM02-AHD ,2MP |
| Type | Side view bus camera | |
| Pick up Device | 1/3” CMOS Sensor AR0130 | 1/2.8 Sony IMX222 |
| TV System | PAL / NTSC | |
| Picture Elements | 1280(H)*960(V) | 1920H x 1080 V |
| Effective pixels | 1.3M Pixels | 2M Pixels |
| Day-night mode | External control (default) / Auto / color / black and white | |
| Infrared Spectrum | 850nm | 850nm or 940 nm |
| S/N Ratio | More than 48 dB, (AGC Off) | More than 50 dB, (AGC Off) |
| Auto Gain Control | Auto | |
| White Balance | Auto | |
| Electronic Shutter | AUTO/ 1/50(1/60)-1/100,000sec | Auto |
| Back/Light Compensation | Auto | |
| Infrared LED | 12 LEDs | |
| Infrared LED Range | 8 m | |
| Video output | 1 Vp-p, 75Ωcomposite ,4 ways Din jack x1 | AHD 1 Vp-p, 75Ω, |
| Audio Output | N/A | |
| Mirror | N/A | |
| Power Consumption | 170mA | 160 mA |
| Lens | Standard f3.6mm Fixed Megapixel Lens | |
| Lens Mount | M12XP0.5mm Thread | |
| Video footage to take up space | 1min≈32MB | |
| Power Supply | 12V DC ±10% | 12V DC (9V~18V) |
| Dimensions(L x W x H) | 76.4 x 60.5 x 56mm | |
| Net Weight | 203g | 215 g |
| Weatherproof | IP67 | |
| Operating Temperature | -10°C to +50°C | -25°C to +60°C |

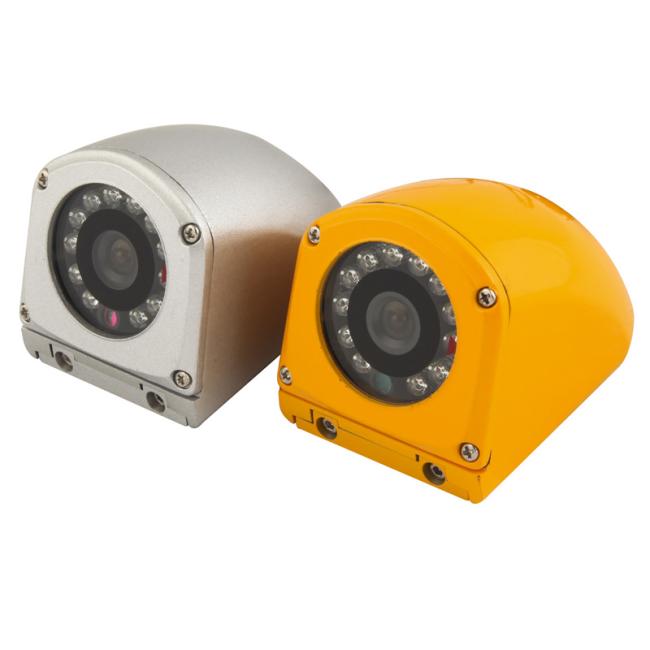

Products' Picture:
Packing list:
Camera 1
Instruction Manual 1
Self Drilling Screw 3
Mounting Plug 3
Hex-key 1
Optional Lens selectable from f2.9mm to f12mm
Operation procedures:
1. Loosen the lock screws (3) by applied hex key, remove the mounting base (2) from the camera (1).
2. Attach the mounting base (1) to the wall or ceiling, wherever you want to install the camera. Locate a wall stud or ceiling joint and secure the base by the supplied mounting screws (4).
3. Connect the 4 ways male din jack to the female jack on the cable, when picture shown up on the monitor.
4. Fix the camera on the mounting plate.
