12V Night Vision Front View / Car Reversing Camera , Vehicle Waterproof Camera
12V Night Vision Front View / Car Reversing Camera , Vehicle Waterproof Camera ( C801-AHD )
Character:
1) Super waterproof for install outside the door of the car
2) High-quality infrared led has excellent night vision result in dark or night
3) 3.6mm wide angel lens view 120degree, or 2.0/2.5/2.8/6.0 mm lens optional.
Specifications:
| Model NO | C801-AHD ( 1MP ) | C801-AHD ( 1.3MP ) | C801-AHD ( 2MP ) | ||
| Type | Front / Rear view waterproof camera | ||||
| Image Sensor | 1/4” CMOS Sensor AR0130 | 1/3”CMOS Sensor AR0130 | 1/3 CMOS Aptina 0230 | ||
| TV System | PAL/NTSC | ||||
| Effective pixels | 1MP | 1.3MP | 2MP | ||
| Picture Elements | 1280(H)*720(V) | 1280(H)*960(V) | 1280(H)*1080(V) | ||
| S/N Ratio | More Than 44 dB | More Than 44 dB | More than 72 dB, (AGC Off) | ||
| Infrared Spectrum | 850nm | N/A | 850nm | ||
| Min. Illumination | 0.01Lux(Color) / 0 Lux IR On | ||||
| White Balance | Auto | ||||
| Infrared LED | 18 LEDS | ||||
| Infrared LED Range | 10-15M | ||||
| Lens | Megapixel fixed Lens 3.6mm/6mm | ||||
| Pan Adjusting | N/A | ||||
| Tilt Adjusting | 0-60 Degree | ||||
| Power Consumption | 110mA | 80mA | 210mA | ||
| Input Voltage | DC12V±10% | ||||
| Weight | 435g | ||||
| Dimension | L69 x W76 x H78 mm | ||||
| Video Output | 1 Vp-p, 75ΩComposite, 4 ways Din Jack | ||||
| Operating Temp | -10°C to +50°C | ||||
| Waterproof Rating | IP68 | ||||
Product's Picture:
Operation procedures:
1) Loosen the lock screws on the sun shield, remove the mounting bracket to the suitable position.
2)Attach the mounting bracket to the wall or ceiling, wherever you want to install the camera. Locate a wall stud or ceiling joint and secure the base by the supplied mounting screws.
3) Connect the 4 ways male din jack to the female jack on the cable.
4) Fix the lock screw.

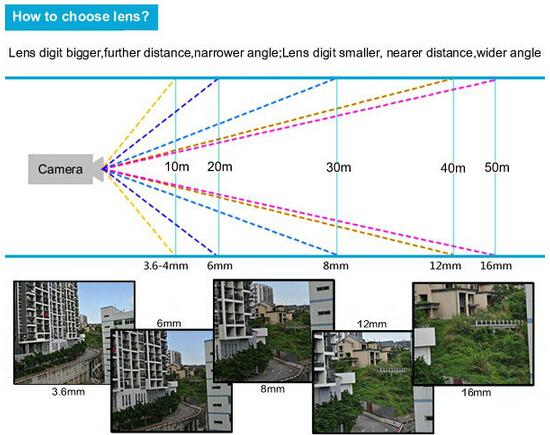

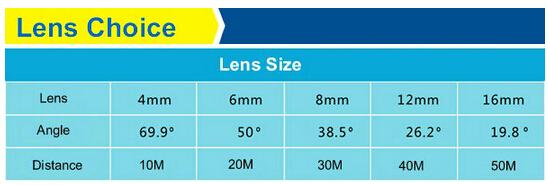

Lens:

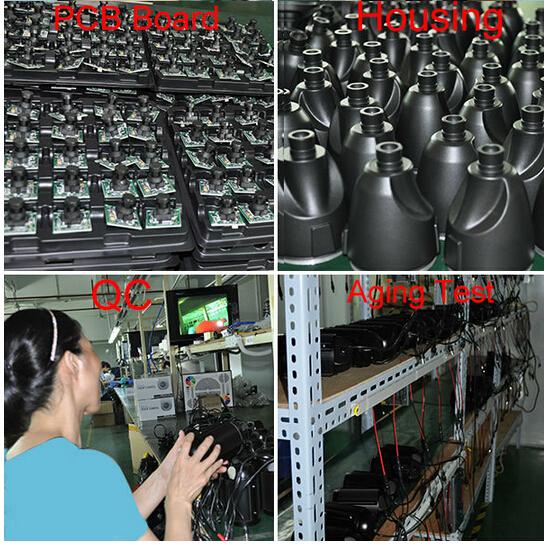

Testing:
Package:
