12 V CCD IP68 Side Rear View Car Reverse Camera for Bus , Truck

Price Negotiable

Price: negotiation

MOQ: 1 Pieces

Delivery Time: Truck Camera Sample is available within 3 weekdays

Brand: RECODA

Product Description

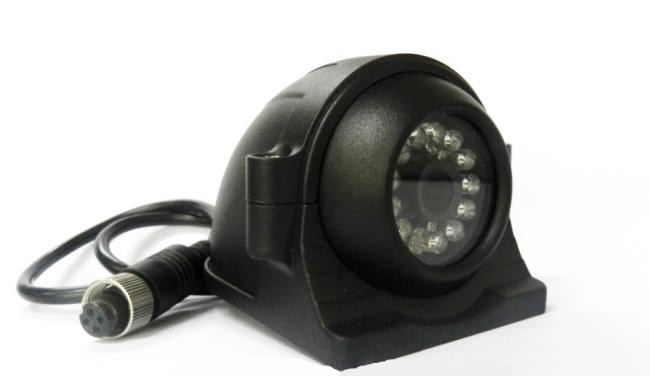

12 V CCD IP68 Side Rear View Car Reverse Camera for Bus , Truck

Description:

1. Side View Camera is designed for Truck, Bus, Van or Vehicle
2. Rear,Celling Mount ,left,Right view optional
3. Metal housing IP68 Waterproof and 10G Vibration
4. Built in 12PCS IR LED lights.
5. F3.6mm Standard Lens
6. TV System PAL/NTSC
7. Horizontal Resolutio: 700TVL
8. White Balance Auto
9. Back Light Compensation Auto
10. Net Weight: 300g
11. Operating Temperature -25°C to +70°C

Specifications:

Model	CM03
Image Pick-up Device	1/3" SONY COLOR CCD
Horizontal Resolution	700 TV Lines
Number of Pixels	NTSC: 510(H)× 492(V); PAL: 500(H)× 582(V)
Scanning System	NTSC: 525 Lines, 60 Field/sec, PAL: 625 Lines 50 Field/sec
Sync System	Internal Synchronization
Gamma Characterlstic	0.45
S/N Ratio	≥ 48dB(AGC Off)
Electronic Shutter Time	On: NTSC 1/60~1/100, 000Sec, PAL 1/50~1/100, 000Sec; Off: NTSC 1/60 Sec, PAL 1/50 Sec
Usable Illumination	0 lux with built-in IR LED
IR projecct distance	10 meters(10 Unit Infrared LED)
IR Status	Under 10 Lux by CDS
IR Power On	CDS Auto Control
Lens	Board Lens 2.9mm/F2.0(optional)
Video Output	1.0Vp-p 75 ohm
Gain Control(AGC)	Auto
Water resistance	IP68
Operation Temperature	-20º C~+50º C RH95% Max
Storage Temperature	-40º C~+80º C RH95% Max
Power Supply	DC12V± 10% 400mA
Dimension	83 (L) × 60 (w) × 55 (H) mm
Weight	300g

For this Side Rear View Bus/Truck Camera, pls notes as follow:

This camera support 12V power, you can connect it with Mobile DVR or monitor.
We can do it with 4-pin Aviation connector or BNC connector, pls help to confirm with us while making the payment .

Images:
