Backup Car Reversing Camera LCD 7 inch Monitor 10M IR Vehicle Camera
Price:
negotiation
MOQ:
1
Delivery Time:
3-5 working days
Brand:
Recoda
Product Description
Backup Car Reversing Camera LCD 7 inch Monitor 10M IR Vehicle Camera
In this backup camera system, there are 7 inch LCD monitor for providing you a claer display in day or night conditions. Then the C801 waterproof camera gives you a 100 degree wide angle view henind the truck.

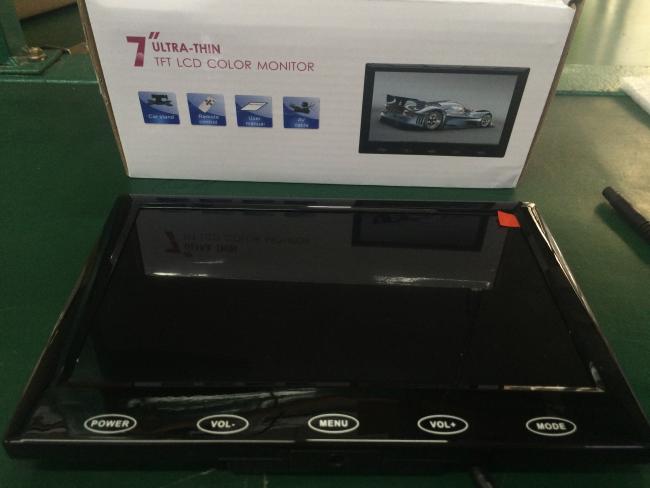

Main features of monitor:
1. Very easy to install
2. Car LCD Monitor with thin design
| Model | 7 inch V901 |
| Ultra thin design | Only 8.8 mm |
| Resolution | 800 x RGB x 480 |
| Input | 2 AV input |
| Multi TV system | PAL/BG. I. DK, NTSC/M, SECAM/BG. DK selected |
| Video system | PAL/NTSC |

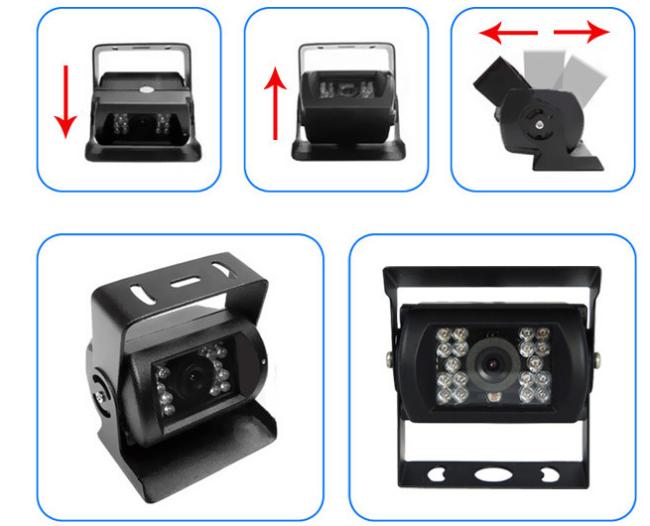

Main features of car camera:
1. Waterproof CCD car camera

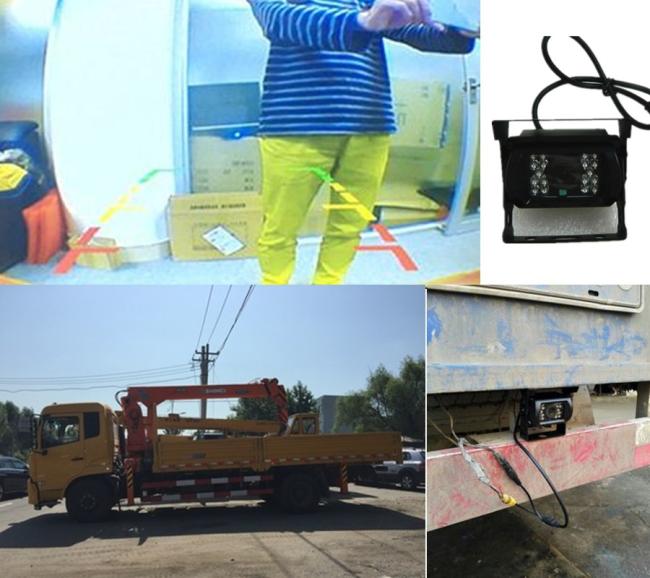

2. Wide application: car reverse camera for Oil tanker, truck or agiculture viewtech.
| Model | C801 |
| Image Device | 1/3" SONY SUPER HAD colours CCD |
| Resolution | 700TVL |
| Effective Pixels |
EIA:510(H)×492(V); CCIR:500(H)×582(V) |
| Scanning System | EIA:525 Lines,60 Field / sec, CCIR:625 Lines 50 Field / sec |
| Sync. System | Internal |
| Gamma Consumption | 0.45 |
| SNR | ≥48dB(AGC Off) |
| Electronic Shutter | On: EIA 1/60~1/100,000Sec,CCIR 1/50~1/100,000Sec; Off: EIA 1/60 Sec, CCIR 1/50 Sec |
| Minimum Illumination | 0.8 Lux(F:2.0),0 lux with built-in IR LED |
| IR Distance | 15 m(18 Infrared lamp) |
| Infrared State | Under 10 Lux by CDS |
| Infrared Power | CDS Auto Control |
| Camera Lens | Board Lens 3.6mm/F2.0(optional) |
| Video Output | 1.0Vp-p 75 ohm |
| Gain Control (AGC) | AUTO |
| Connecting Line | DC JACK |
| Waterproof Level | IP66 |
| Operating Temperature/Humidity | -10℃～+50℃ RH95% Max |
| Storage Temperature/Humidity | -20℃～+60℃ RH95% Max |
| Power | DC12V±10% 600mA |
| Size | 75(W)X45(D)X75(H)mm |
| Net Weight | 300G |

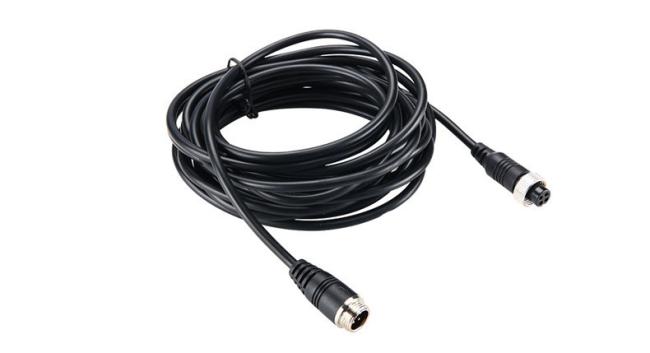

Main features of extension cable:
Different length for choose: 5m, 10 m, or 15m
