8CH Hard Disk H.264 WIFI car dvr vehicle camera video recorder AHD 720P 3G GPS

Price Negotiable
Price: negotiation
MOQ: 1 Unit
Delivery Time: Hard Disk Mobile DVR SAMPLE Available within 3 weekdays
Brand: RECODA
Product Description

8CH Hard Disk H.264 WIFI car dvr vehicle camera video recorder AHD 720P 3G GPS



Model NO: M718



Mobile DVR M718 Series is a high level hard disk & SD Card mobile video recorder specially designed for vehicle surveillance purpose. It adopts high speed processor and embedded operating system, and applies various advanced technologies in IT field, such as A/V codec, high capacity hard disk and SD card storage, network streaming media, A/V noise reduction, wide range voltage design.


Key Features:



1. Support 8CH Video & Audio synchronous input, 1CH Video & Audio synchronous output;

1CH VGA output, 1CH AV Output.

2. Support 8CH 720P real-time local recording.

3. H. 264 video compression, Linux system

4. 8-36V wide voltage power supply.

5. Continued video recording for 4s after sudden power off.

6. With excellent vandal resistant, Splashproof, dustproof functions.

7. Support 2.5 inch hard disk, at maximum 2TB storage and 128G SD Card.

8. Automatic reset: System will recover to video recording state quickly after the power is on again;

Even the instant power off does not affect the recorded video.

9. With full enclosed lock design, it can prevent the man-made sabotage effectively;

10. Support all vehicles, including bus, taxi, truck, school bus, etc



Specifications:

Power Supply Car battery(For mobile monitoring)/Power adapter(For other applications)
Power input DC10V~DC36V(Standard power input:DC12V~DC24V, ultimate power input: DC10V~DC36V)
Power output DC12V/3A (Provide power for cameras,with built in re-settable fuses. )
Working temperature - 10°C~ + 50°C (ultimate working temperature: - 20°C~ + 60°C)
Video Technology H.264(Data encryption, need to use the playback software to play the videos)
Storage interface Standard SATA HDD interface, SD Card and USB devices
Storage Capacity 2.5'' SATA 2TB HDD/128GB SD/SDHC Card
Storage mode Boot record, cycle recording
Camera AHD_M standard cameras
Video Standard PAL system or NTSC system (Please make sure the camera’s video standard compatible to the DVR)
Video input Input standard: input frequency: Vp-p=1.0V, input impedance: 75Ω
Resolution 4ch AHD 720P full real time recording, also support the playback function while recording.
Frame rate PAL(1~100FPS optional)and NTSC(1~120FPS optional)
Video quality Multi-grade adjustable
Output signal CVBS(8ch video + 8ch audio,but only support 1ch audio output at a same time)
3G / 4G module WCDMA/EVDO/TD-SCDMA , TDD-LTE/FDD-LTE optional
WIFI downloading Built-in Wifi optional
GPS

Built-in GPS module optional,

realtime geographic coordinates, speed information

Ethernet Port One 10M/100M Ethernet port (RJ45)
Alarm input 8ch independent alarm input port (isolating function)
Alarm output 2ch independent alarm output port
USB Standard 2 USB 2.0 port(support USB back up and system upgrade)
IR Receiver One IR receiver(beside the USB port)
DVR dimension 200(Length)*187(Width)*62(Height)mm
mainframe weight Around 2.5kg

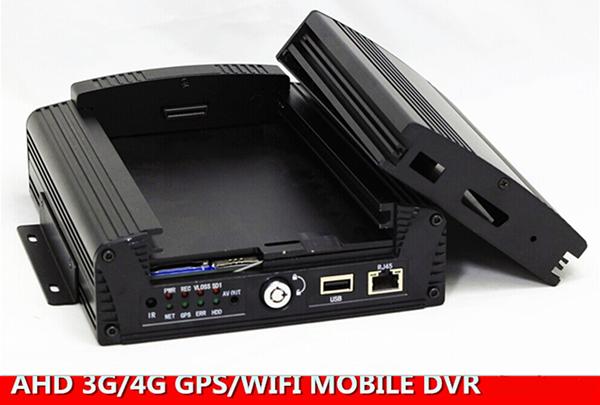

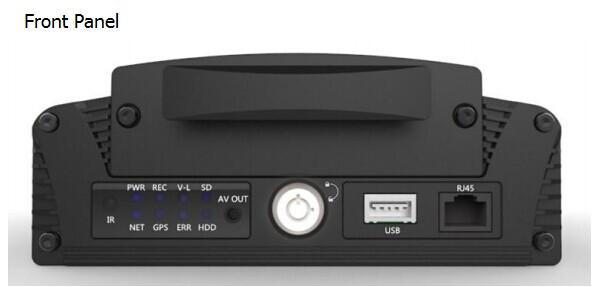

Images:
