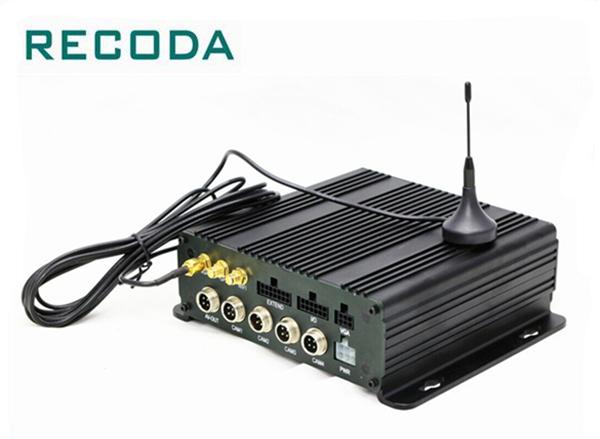

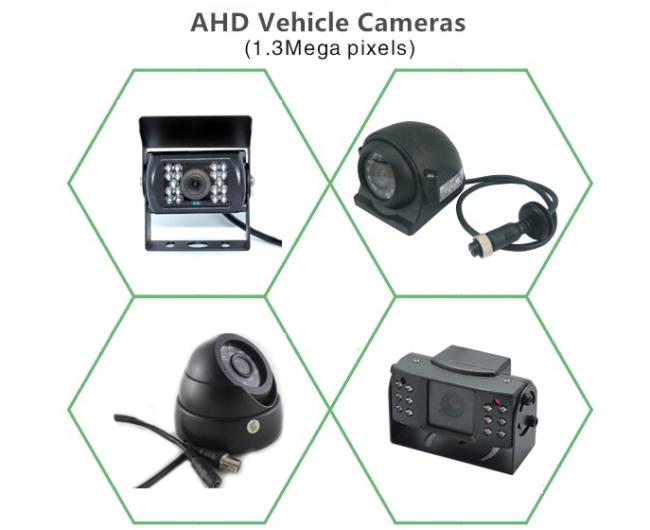

4CH AHD Camera Dual SD card automotive video recorder / Mobile vehicle video surveillance system

Price Negotiable

Price: negotiation

MOQ: 1 Unit

Delivery Time: SD Cards Mobile DVR SAMPLE Available within 3 weekdays

Brand: RECODA

Product Description

4CH AHD Camera Dual SD card automotive video recorder / Mobile vehicle video surveillance system

Features:

^{H.264 Compression,clear image,1~4CH video input,1 composite video output.}

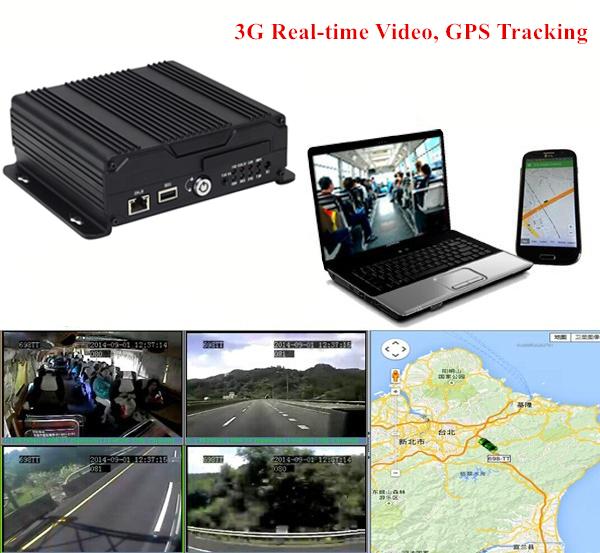

^{Built-in GPS, 3G (support WCDMA or EVDO (CDMA2000))}
^{4CH CIF, HD1, D1 real-time recording, 4CH audio synchronous recording.}
^{GPS,G-sensor acceleration sensor, speed sensor, temperature sensor.}
^{6CH alarm input (level input), 1CH alarm output (relay output).}
^{Recording modes: Power-on recording, timing recording, alarm recording, manual recording.}
^{Real-time recording of clock, date, car number, speed, braking, alarming signal;}
^{With excellent vandal resistant, Splashproof, dustproof functions;}
^{Can set 1-244 minutes delay time for video recording.}
^{Delayed power-off function for data protections}
^{Support all vehicles, including bus, taxi, truck, school bus,etc.}
^{Data Storage:TWO Pieces SD cards with maximun 128GB each}
^{10-36VDC wide voltage input for all kinds of vehicles; DC 5V/0.5A, 12V/2A output.}

Specifications:

	Model	M610AHD
System	Operating System	Linux
	Language	Chinese/English
	Operating Interface	Graphics menu operating interface(GUI), support mouse
	Password Security	Permission settings of administrator & user
Video	Signal System	PAL/NTSC
	Image Compression	H.264 (Main Profile)
	Image Resolutions	720P / 960H / HD1 / D1 / CIF (optional)
	Playback Quality	CIF/D1/720P
	Compound Mode	4 Channels 720P / 4 Channels D1
	Video Input	4 channels
	Video Output	2 channels
	Video Display	Support single picture / 4 pictures display
Audio	Audio Compression	ADPCM
	Audio Input	4 channels,
	Audio Output	1 channel,
	Recording Mode	video & audio recording synchronously
Recording & Playback	Video Mode	Manual, timing, alarming
	Video Rate	1Mbps~4096Mbps, 6 image resolutions for options.
	Audio Rate	8Kb/s
	Storage	1pc SATA hard disk & 1pc SD Card
	Local Playback	By documents; by 1 Channel
Protocol	Regular Report	According to time interval settings to report
	Electronic Fence	ACC delayed off, Power-off by alarm, hard disk locked
	Low Power Alarming	Low power voltage alarming of the battery
	Start-up Alarming	Report to background server when starting up
	Shutdown Alarming	Report to background server when shutting down.
Interface	Video Input	4 Channel aviation port
	Video Output	1 Channel aviation port, 1 Channel lotus port
	Audio Input	4 Channel aviation port,
	Audio Output	1 Channel aviation port, 1 Channel lotus port
	Digital Input	Six digital input ; 3 Positive trigger & 3 Negative trigger ; Built-in over voltage protection.
	Digital Output	2 digital output , 1 lock storage; current : <150mA, built in over current protection
	SD Card	2pc SDXC high speed card, each 128G at maximum.
	USB Interface	1 USB 2.0; support U-Disk/keyboard&mouse
	Hard Disk Interface	1 SATA 2.0 interface ( 2 TB maximum, support hot plug )
	Alarming Input	6 digital input; 3 Positive trigger & 3 Negative trigger ; Built-in over voltage protection.
	IR Interface	built-in 1 IR receiver, 1 external IR receiver
	Communication Port	1* RS485, 2* RS232
	Network Interface	1* RJ45 ; 10m/100m self-adaptive to Ethernet port.
	LED indicators	Power / Video Lost / Recording / SD Card / Network / GPS / Hard Disk / Working Error
	Hard Disk Lock	1
	Debug Serial Port	1pc system debug port
Wireless module	GPS	Built-in GPS module optional, displaying geographic coordinates, speed information
	3G/4G	WCDMA/EVDO/TD-SCDMA , TDD-LTE/FDD-LTE optional
	WIFI	optional
Others	Power Input	DC 108-36V
	Power Output	+12V @ 300mA ;+5V@300mA ; built-in over current protection.
	Operating Temperature	-20~60 degree
	Size	15057168 (mm)
