CCTV Realtime 4 Camera Car DVR Recording / Mobile Bus Car Vehicle DVR Security System
4CH CCTV Realtime Recording SD Card Mobile Bus Car Vehicle DVR Security System
Product Description:
This vehicle DVR is a cost-effective equipment which is designed for on-board video monitoring. It takes embedded Linux platform, combined with the most advanced H.264 video compression technology. With SD card as storage medium, this DVR can provide audio-video recording files with vehicle's information overlaid. SD card design makes it more vibration-proof and easily installed than hard disk version.
Features:
H.264 video compression.
Support SD card up to 64GB, more convenient and vibration-proof than hard disk version
Support four channel 720P video and audio Input, Two channel video and audio Output
Support IR remote control. Special design of encrption to protect recording files
Support wide range of voltage input from 8V to 36V
Note: Please confirm that the battery voltage is between 8V-36V. If surpass the range, it would burn the equipment.
Specifications:
| Mobile Features: | |
| Video Compression | H.264 |
| Video Input / Output | 4CH 720P AHD input, 1CH Output |
| Recording Resolution | 720P/D1/HD1/CIF, MAX:4 channels of 720P and 4 channels of D1 |
| Storage | Dual SD Card, each max 128GB SD Card loop recording |
| Alarm Input/Output | 6Ch Input / 2Ch Output |
| Other functions | 3G/4G GPS WIFI, G-SENSOR |
| Size | 150(W) x57(H) x168(D) mm |
| Net Weight | 1.5kg |
| Camera Features: | |
| Camera Type | Front/ Rear View, Side View, In Car Camera |
| Resolution | 1.0 / 1.3Megapixel |
| Image sensor | 1/4” CMOS Sensor AR0130 / 1/3”CMOS Sensor AR0130 |
| S/N Ratio | ≥50dB |
| Picture Elements | 1280(H)*720(V) / 1280(H)*960(V) |
| Lens | 3.6mm, 2.8mm Fixed Megapixel Lens |
| White Balance | Auto |
| Waterproof level | IP66 |
| Input Voltage | DC12V±10% |

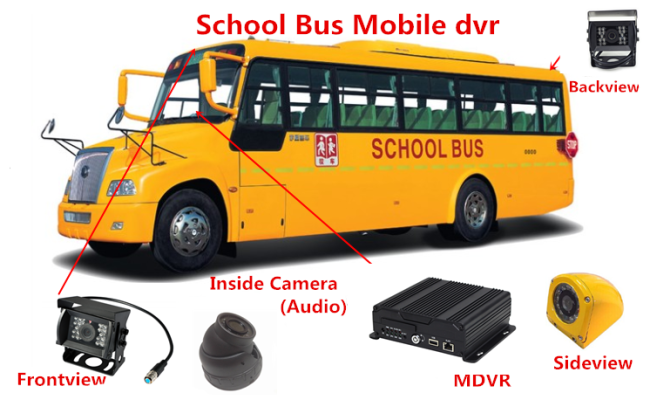

System Picture:

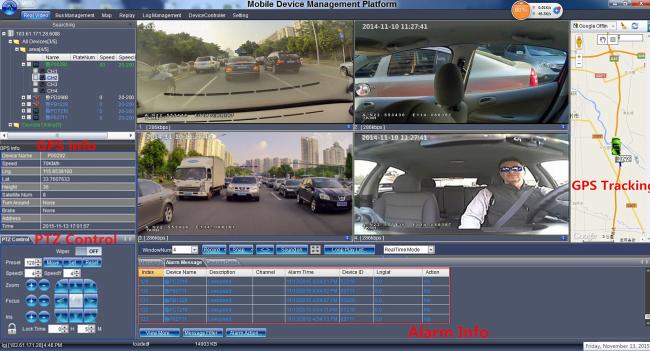

Remote Monitoring:
