School Bus IR car mount camera , Wide Angle Side View vehicle Camera
Price:
negotiation
MOQ:
1
Delivery Time:
3-5days after receiving your payment
Brand:
RECODA
Product Description
School Bus IR Waterproof camera Wide Angle Night Vision Side View vehicle Camera
Introduction:
- Type: Side View Camera
- Resolution: 1.3 Megapixel
- Lens: 2.0/2.5/3.6mm lens optional
- Min illumination:0Lux (LED ON)
- IR LED: 12pcs
- Night Vision Distance: 8M
- Waterproof: IP67
- Voltage: 12V
Specifications:
Model |
CM02-AHD | |
| Type | Side view bus camera | |
| Pick up Device | 1/3” CMOS Sensor AR0130 | |
| TV System | PAL / NTSC | |
| Picture Elements | 1280(H)*960(V) | |
| Effective pixels | 1.3M Pixels | |
| Day-night mode | External control (default) / Auto / color / black and white | |
| Infrared Spectrum | 850nm | |
| S/N Ratio | More than 48 dB, (AGC Off) | |
| Auto Gain Control | Auto | |
| White Balance | Auto | |
| Electronic Shutter | AUTO/ 1/50(1/60)-1/100,000sec | |
| Back/Light Compensation | Auto | |
| Infrared LED | 12 LEDs | |
| Infrared LED Range | 8 m | |
| Video output | 1 Vp-p, 75Ωcomposite ,4 ways Din jack x1 | |
| Audio Output | N/A | |
| Mirror | N/A | |
| Power Consumption | 170mA | |
| Lens | Standard f3.6mm Fixed Megapixel Lens | |
| Lens Mount | M12XP0.5mm Thread | |
| Video footage to take up space | 1min≈32MB | |
| Power Supply | 12V DC ±10% | |
| Dimensions(L x W x H) | 76.4 x 60.5 x 56mm | |
| Net Weight | 203g | |
| Weatherproof | IP67 | |
| Operating Temperature | -10°C to +50°C | |

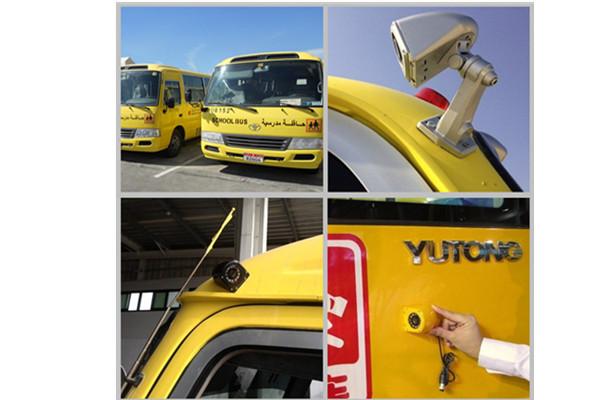

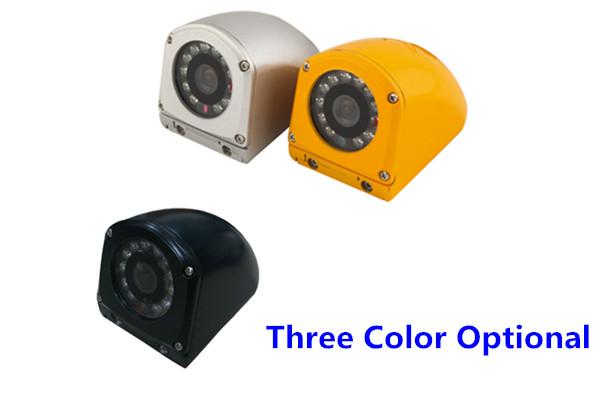

Product's Picture:
Size:

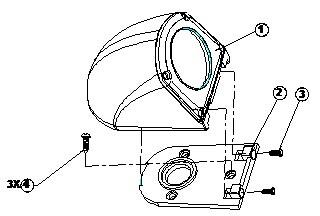

- Loosen the lock screws (3) by applied hex key, remove the mounting base (2) from the camera (1).
- Attach the mounting base (1) to the wall or ceiling, wherever you want to install the camera. Locate a wall stud or ceiling joint and secure the base by the supplied mounting screws (4).
- Connect the 4 ways male din jack to the female jack on the cable, when picture shown up on the monitor.
- Fix the camera on the mounting plate.
Installation:
