4Channel AHD MDVR Support Remote Live View Video On PC And Smartphone
4Channel HDD 720P AHD MDVR Support Remote Live View Video On PC And Smartphone
Overview:
This is a High Definition AHD technology DVR and accepts 4 color cameras. Excellent image quality as 720p (1280*720P) makes this DVR recorder the best option for both commercial and residential use.
Do you need to view remotely? don't worry, this AHD DVR can also be viewed remotely through your smartphone: iPhone and Android, as well tablets or Computer and includes an easy internet setup using an unique ID number, making the configuration much easier for any end user.
Specifications:
| Model | M710AHD |
| System | |
| OS | Linux |
| Operation Interface | On screen display menu |
| Video | |
| Video Input / Output | 4CH 720P AHD input, 1Ch Output |
| Video Compression | H.264 |
| Recording | |
| Resolution | 720P/D1/HD1/CIF, MAX:4 channels of 720P |
| Alarm | |
| Alarm Input / Output | 6CH Alarm Input,2CH Output |
| Network | |
| Ethernet | RJ45 network interface - 100Mbps for external WiFi module or IPC |
| Network Functions | Real time Surveillance with Microsoft Internet Explorer, GPS tracking with RECODA's Apps Included and / or Google Maps |
| G-Sensor | Support G-sensor |
| Storage | |
| HDD + SD Card | Max 2.5” 2TB HDD + Max 128GB SD Card |
| Update | Support USB Updating, SD Card Updating, OTA Remote Updating |
| General | |
| Voltage Input | DC:+10V - +36V |
| Voltage Output | +12V~1.5A,+5V~1.5A |
| Power Consumption | Working <5W |
| Dimension | 168 (D)* 161(W)* 65(H) mm |
| Net Weight | 2.2 Kg |

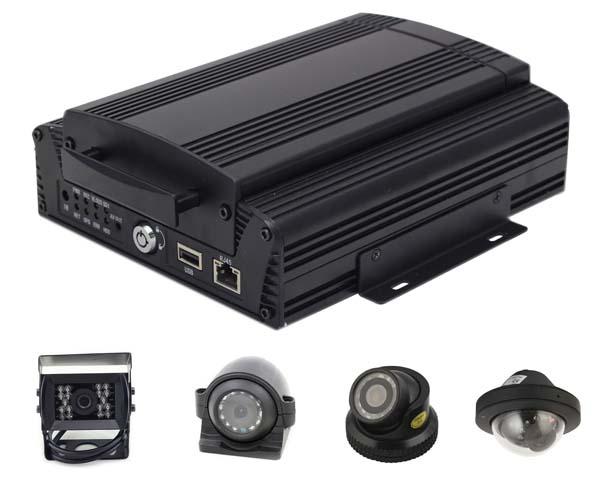

System Picture:
Remote Monitoring:
