RECODA RCDP4 3D DNR 800TVL pinhole micro Hidden Cameras in Cars , Low Lux
RECODA RCDP4 Low Lu x 3D DNR 800TVL
pinhole micro camera Use for private car,taxi
Main feature:
- Image sensor: 1/3’SONY double-scan CCD II
- Effective pixels: NTSC: 976(H)×494(V) PAL:976(H) X582(V)
- Synchronization: Internal Synchronization
- Scanning system : Interline-scan
Specification:
|
Model
|
RCDP4 |
|
Resolution
|
800 TVL |
|
OSD menu
|
YES |
|
Lens
|
2.5/3.7mm(Pinhole) |
|
WDR/BLC
|
WDR/D-WDR/HLC/BLC |
|
Privacy Masking
|
15 zones |
|
Motion Detection
|
4 zones |
|
DNR
|
3D |
|
Day/Night
|
Auto/Colors/ Black&White |
|
Gamma
|
0.45 |
|
S/N Ratio
|
≥50dB(AGC OFF) |
|
Min Illumination
|
Color:0.001lux;B/W:0.0005LUX,F1.2 |
|
Lens focus
|
3.7/2.5mm(Pinhole) |
|
Gain control
|
Auto/Manual |
|
Shutter Speed
|
1/50 ~ 1/100,000(NTSC), 1/60 ~ 100,000(PAL) |
|
White Balance
|
AUTO/PUSH/User1/User2/Manual/PUSH LOCK |
|
Acutance
|
0~15 |
|
D-Zoom
|
0~255 |
|
Language
|
Multi-languages |
|
Video output
|
1.0Vp-p,75Ω |
|
Input Voltage
|
DC12V±10% |
|
Power Consumption
|
1W(Max) |
|
Weight
|
150g |
|
Operating Temp
|
﹣15℃～＋50℃ |
|
Storage Hum
|
30%RH~80%RH |
|
Dimension
|
30x30x19mm |

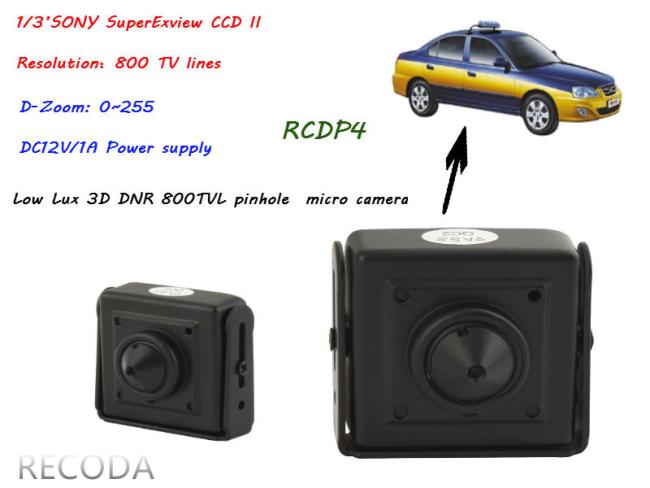

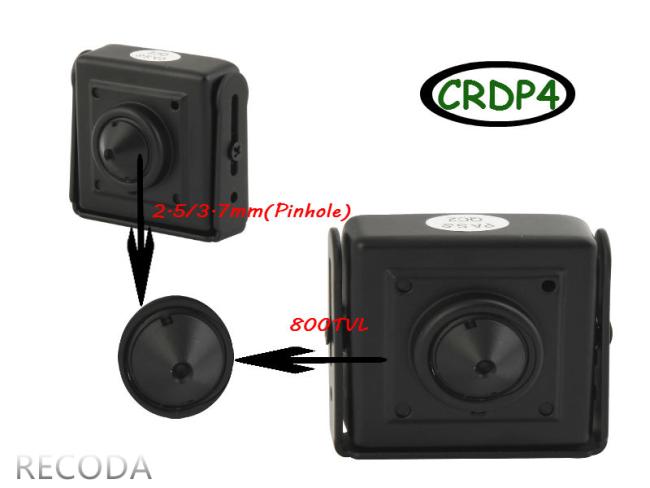

Image:
