Recoda C807 1080P AHD Mini Dome IP68 Truck Reversing Camera weatherproof with fixed lens
Recoda C807 Car Reversing Cameras 1080P AHD Mini
Dome, IP68, weatherproof with fixed lens.
Main Feature:
● Metal-cased IP68 weatherproof micro dome with fixed lens.
● Low power consumption.
● Easy installation on ceiling or wall, surface or flush mount.
● 10 Infrared LEDs.
● Audio available.
Specification:
| Model | C807 |
| Image Sensor | 1/2.8 Sony IMX222 |
| TV System | PAL/NTSC(OPTIOAL) |
| Picture Elements | 1920H x 1080 V |
| Sensitivity | 0 Lux (LED on) |
| Scanning System | progressive scan RGB CMOS |
| Synchronization | Internal |
| Infrared Spectrum | 850nm or 940 nm |
| S/N Ratio | More than 50 dB, (AGC Off) |
| Auto Gain Control (AGC) | Auto |
| White Balance | Auto |
| Electronic Shutter | Auto |
| Back Light Compensation | Auto |
| Infrared LED | 10LEDs |
| Infrared LED Range | 5 Meters |
| Video Output | AHD 1 Vp-p, 75Ω, |
| Audio Output | N/A |
| Mirror | N/A |
| Gamma Ratio | 0.45 |
| Auto-iris Lens Control | N/A |
| Lens | f3.6mm Megapiexel |
| Exterior Focus Adjustment | N/A |
| View Angle | 90° (D) |
| Pan Adjusting | +/-180 Degree |
| Tilt Adjusting | 0-62 Degree |
| Power Supply | 12V DC (9V~18V) |
| Power Consumption | 150 mA |
| Dimensions (ø X H) | 77 x 60.3 mm |
| Net Weight | 200 g |
| Weatherproof/Water Proof | Weatherproof (IP66 for top side) |
| Operating Temperature | -25°C to +60°C |

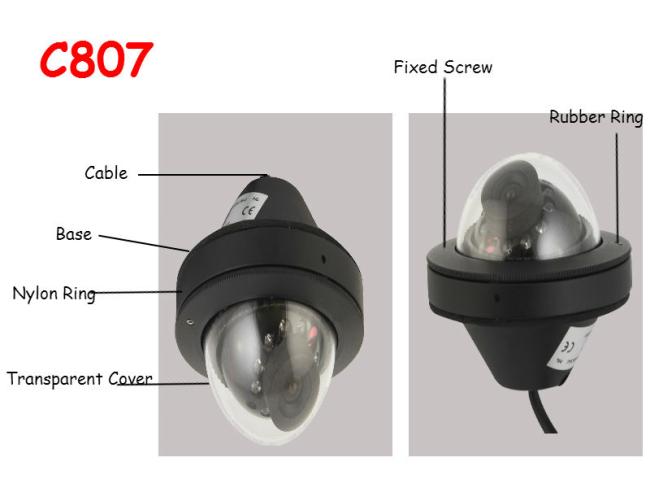

Operation procedures:
Use the attached hex key to loosen the hex head screw, then unscrew the top cover ~ if this is tight.
- Attach the mounting base to wall or ceiling, as required. Use the supplied screws to fix camera in position.
- Apply pressure to polycarbonate dome, and then move the ball to make the camera to the suitable position
- Connect the camera as follows:
12VDC power input and Video output to 4 din jack.
- Replace the transparent cover and the top cover.
- Re-tighten the hex-head screw to lock the dome camera.
