Hybrid 3G GPS WIFI 1080P Car DVR , vehicle video recorder for Buses / Coach
4 CH 1080P Car DVR Hybrid 3G GPS WIFI for Buses , Coach
Main Features:
1. High quality real time recording, 1080P720P/CIF/HD1/D1 Optional, quality adjustable;
2. Support 12VDC/2.5Amp output voltage,power supply for Camera/Screen etc;
3. Dual SD Card Support, total max 256 GB,protect DVR from shock & Dust damage;
4. Watchdog abnormal restart function,protect SD Card and Record;
5. Exclusive File System protect data completeness,prevent SD Card fragment;
6. Support GPS/BD 3G / 4G /WIFI /G-sensor Optional;
7. 6CH Alarm input(Door Open,Light,Turn direction,brake,reverse etc),can linkage kinds of alarm;
8. Easily Smart GUI Interface, saving time in device setting;

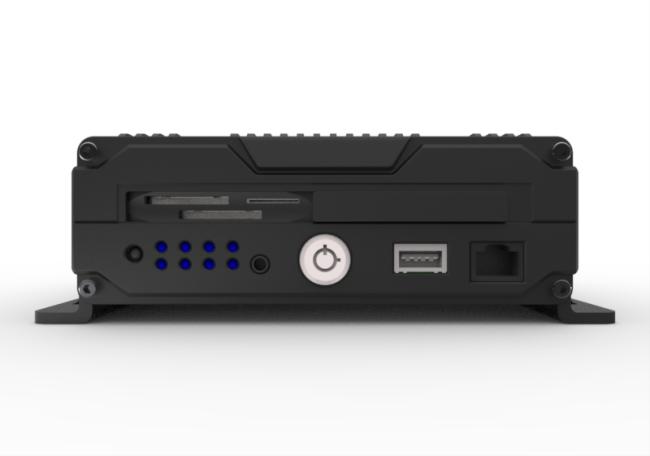

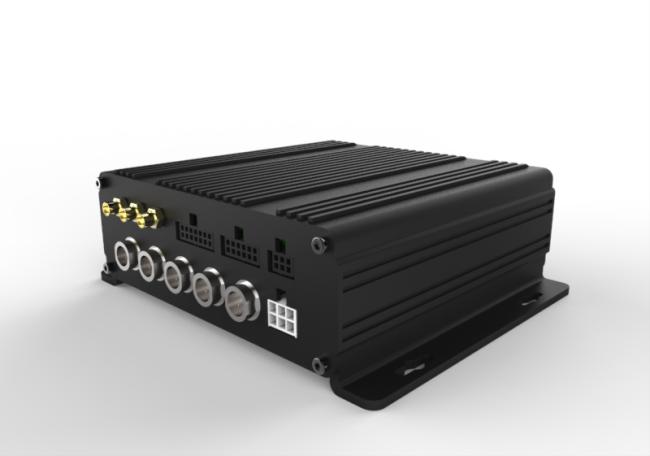

Product picture:
Product Parameter:
| Item | Parameter | |||
| OS | Linux | |||
| Language | Chinese/English/Customized | |||
| Video Compression | H.264 | |||
| OSD | Overlays information such as date time and vehicle ID | |||
| GUI | Graphical User Interface | Setup system parameters with the remote control. | ||
| Video Record System | Video Input |
4CH AHD input,CVI,TVI or CVBS |
||
| Video Output |
1 CVBS, 1.0Vp-p, 75Ω,Aviation,Support 1CH Full Screen, |
|||
| Preview |
Support 1 channel and 4 channels preview.,Support Manual |
|||
| Resolution | 1080P/720P/D1/HD1/CIF, MAX:4 channels of 1080P | |||
| Video Quality | 0-7 levels, 0 is the highest level. | |||
| Video Standard |
PAL: 100f/s , CCIR625 line,50field; |
|||
| Record Mode |
The default setting is auto recording after power on. |
|||
| Audio | Audio Input | 4CH ,Aviation Plug | ||
| Audio Output | 1CH,Aviation Plug | |||
| Compression | G.726 compression, 8KB/s speed | |||
| Alarm Input | 6Ch Alarm Input, kinds of alarm linkage support | |||
| Alarm Output | 2CH Alarm Output | |||
| Position | Support Built GPS/BD Module | |||
| Interface |
2CH RS232 to connect OBD, POS/Fuel Sensor/LED Advertisement Connection |
|||
| 1CH 485 Interface,Connect PTZ Camera | ||||
| G-Sensor | Support G-sensor | |||
| Storage | SD | Dual SD Card,each max 128GB SD Card loop recording | ||
| Upgrade | Support SD Card updating | |||
| File Format | H.264 | |||
| File System | Special FAT32 File System | |||
| Video Playback | Video Search | Search By Record Time/Record Type etc | ||
| Playback | Max support 4CH Replay /Stop/Fast/Slow at same time | |||
|
Support forward and backward play |
||||
|
Voltage & |
Power Management | Wide Voltage.Support Timed/Delay off | ||
| Voltage Input | DC:+10V ~ +36V | |||
| Voltage Output | +12V@2.5A,+5V@2.5A | |||
| Power Consumption | Normal Working ＜5W | |||
| Working Environment | Temperature | -20℃ to +70℃ | ||
| Humidity | 20% to 80% | |||
| Security | Password | User/Admin 2 Level Different Password | ||
| others | Size | 150(W) x57(H) x168(D) mm | ||
| Net Weight | 1.1kg | |||
10 years experience on development and manufacture of mobile dvr , have mora than 20,000 systems installed all over the world, such as UAE( for school bus), UK( for truck). Mexico( for special military vehicles), etc. also until now , we have already got CE, ROHS , FCC and IEC certificates.
We welcome customized requirements on software and firmware
