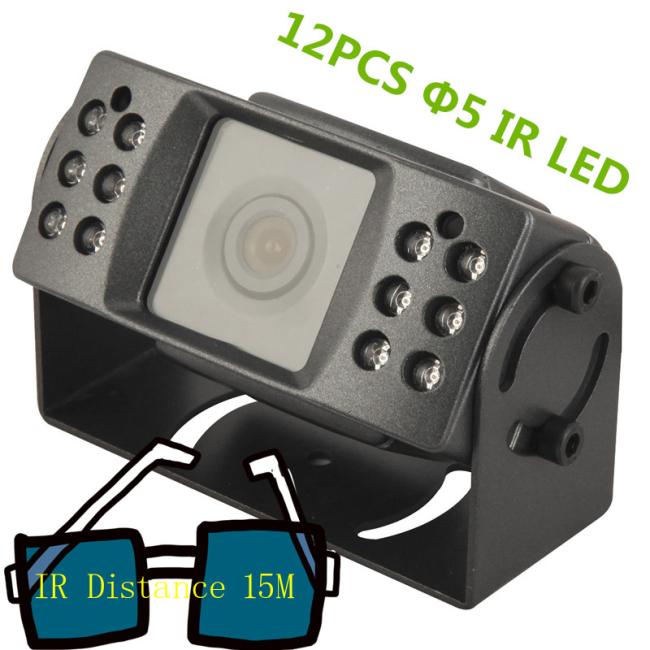

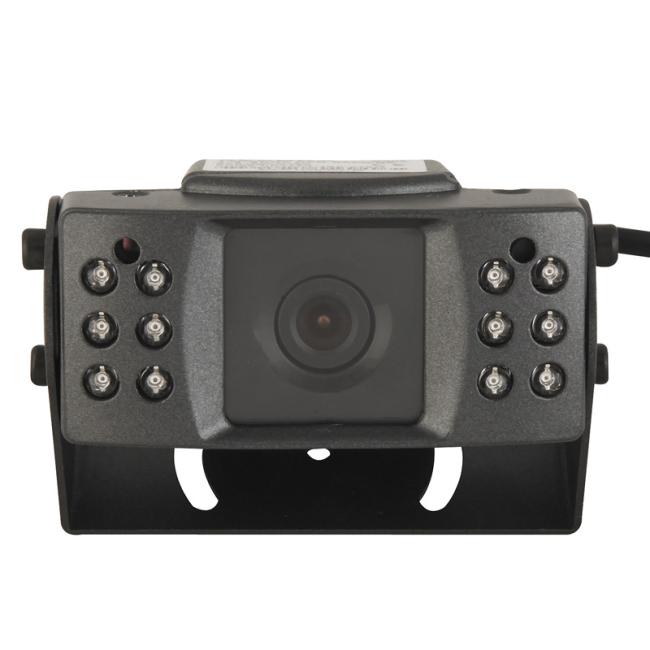

AHD infrared 1/3" SONY CCD Metal reverse car camera 700TVL 2 Megapixel
AHD infrared night vision 700TVL 2 Megapixel 1/3" SONY CCD Metal car camera
Model:RCDP4
1/3" SONY CCD Metal box
Resolution:700TVL
Effective Pixels:NTSC:510(H)×492(V); PAL:500(H)×582(V)
Scanning System:
NTSC:525 Lines,60 Field/sec,
PAL:625 Lines 50 Field/sec
IR Distance: 10 m(12 Infrared lamp)
Infrared Power: CDS Auto Control
Specifications:
| Model | C805 |
| Image Device | 1/3" SONY CCD Metal box |
| Resolution | 420 TV L-700TVL |
| Effective Pixels | NTSC:510(H)×492(V); PAL:500(H)×582(V) |
| Scanning System | NTSC:525 Lines,60 Field/sec, PAL:625 Lines 50 Field/sec |
| Sync. System | Internal |
| Gamma Consumption | 0.45 |
| SNR | ≥50dB |
| Electronic Shutter | On: NTSC 1/60~1/100,000Sec,PAL 1/50~1/100,000Sec; Off: NTSC 1/60 Sec, PAL 1/50 Sec |
| Minimum Illumination | 0 lux with built-in IR 24 LED ON |
| IR Distance | 10 m(12 Infrared lamp) |
| Infrared State | Under 10 Lux by CDS |
| Infrared Power | CDS Auto Control |
| Camera Lens | 6.03.62.8mm |
| Video Output | 1.0Vp-p 75 ohm |
| BLC | AUTO |
| Connecting Line | BNC/DC JACK |
| Operating Temperature/Humidity | -10℃～+50℃ RH95% Max |
| Storage Temperature/Humidity | -20℃～+60℃ RH95% Max |
| Power | DC12V |
