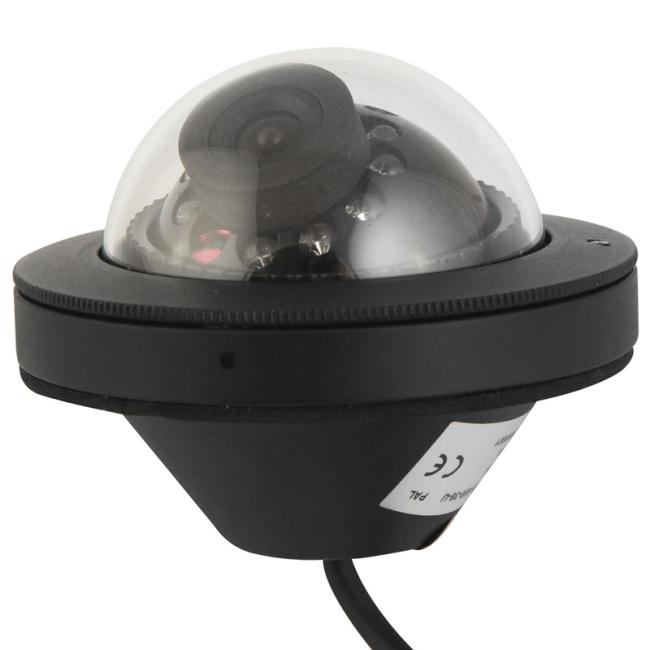

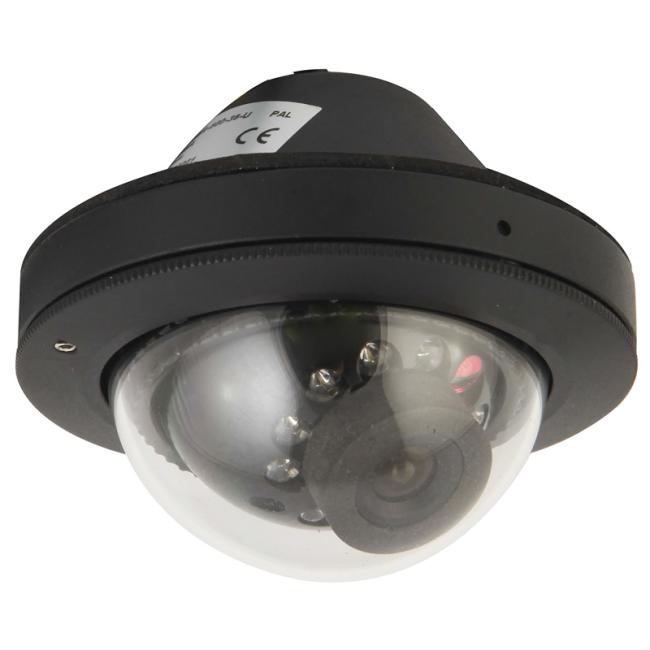

Night vision Car Reversing Camera 1.3 Megapixel vehicle reverse camera 1/3" CMOS Sensor
Night vision Car Reversing Camera 1.3 Megapixel vehicle reverse camera 1/3" CMOS Sensor
Model: C-807 AHD
This is a high quality AHD (Analog High Definition ) Color camera, using the latest CMOS technology, the camera can produce high definition image with little distortion.
Analog High Definition is a high video definition standard, through the coaxial cable, using the analog modulation technology to transfer progressive-scan HD Video signal. AHD system is same as traditional analog system , using common 75-3 coaxial cable to carry out as far as 500 meters HD video without any video signal loss.
Specifications:
| Model | CM07-AHD 1.3MP |
| Pick up Device | 1/3” CMOS Sensor AR0130 |
| TV System | PAL |
| Picture Elements | 1280(H)*960(V) |
| Effective pixels | 1.3M pixels |
| Day-night mode | External control (default) / Auto / color / black and white |
| Infrared Spectrum | N/A |
| S/N Ratio | More Than 44 dB, (AGC Off) |
| Auto Gain Control | Auto |
| White Balance | Auto |
| Electronic Shutter | AUTO/ 1/50(1/60)-1/100,000sec |
| Back Light Compensation | Auto |
| Infrared LED | N/A |
| Infrared LED Range | N/A |
| Video output | 1 Vp-p, 75ΩComposite, 4 ways Din Jack |
| Audio Output | N/A |
| Mirror | N/A |
| Lens | Standard f3.6mm Fixed Megapixel Lens |
| Lens Mount | M12XP0.5mm Thread |
| Pan Adjusting | +/-180 Degree |
| Tilt Adjusting | 0-62 Degree |
| Video footage to take up space | 1min≈32MB |
| Power Supply | 12V DC ±10% |
| Power Consumption | 150mA |
| Dimensions(L x W x H) | 73 x 58 mm |
| Net Weight | 168 g |
| Weatherproof | IP67 |
| Operating Temperature | -20°C to +50°C |
