1080 P 4 IN ONE 4 channel car dvr recorder HDD + SD CARD Support Real Time
1080 P 4 IN ONE 4 channel car dvr recorder HDD + SD CARD Support Real Time
Main Feature:
- Support HDD heating functions,can work in harsh environment;
- Support GPS/BD/G-Sensor Extension module;
- Realize real time monitor through 3G/4G;
- Support to connect OBD on the vehicles;
- Support IOS/Android Phone Remote monitor;
Specification:
|
Language: |
English/Chinese/Customized |
|
OS: |
Support Linux |
|
Graphical User Interface:
|
Setup system parameters with the remote control. |
|
Video Compression: |
H.264 Compression |
|
Video Input: |
4CH AHD input,CVI,TVI or CVBS aviation connector, 1.0Vp-p, 75Ω |
|
Video Output: |
1 CVBS, 1.0Vp-p, 75Ω,Aviation,Support 1CH Full Screen,4CH Screen view |
|
Preview: |
Support 1 channel and 4 channels preview.,Support Manual/Alarm Trigger full screen preview |
|
Resolution: |
1080P/720P/D1/HD1/CIF, MAX:4 channels of 1080P |
Video Standard:
- PAL: 100f/s , CCIR625 line,50field;
- NTSC: 120f/s, CCIR525 line,60field;
- CIF: 256Kbps ~ 1.5Mbps, 8 level video quality optional;
- HD1: 600Kbps ~ 2.5Mbps, 8 level video quality optional;
- D1: 800Kbps ~ 3Mbps, 8 level video quality optional;
- 720P: 4Mbps-6Mbps, multi level video quality optional
- 1080P:4Mbps-8Mbps,multi level video quality optional
|
Record Mode:
|
The default setting is auto recording after power on. Timed recording, alarm trigger recording and manual recording are supported. |
|
Audio Input: |
4CH Aviation Plug Input |
|
Audio Output: |
2CH,headphone connect at front panel, BNC Connect on Back panel |
|
Audio Compression:
|
G.726 compression, 8KB/s speed |
|
Alarm Input:
|
6CH Alarm Input,1CH AD Input,impulse speed input,Alarm Linkage |
|
Alarm Output: |
2CH Alarm Output,Support Light/Sound alarm sensor,Oil/Power cut off |
|
Image Quality: |
0-7 levels, 0 is the highest level. |
|
Interface: |
2CH RS232 to connect OBD, POS/Fuel Sensor/LED Advertisement Connection; 1CH 485 Interface,Connect PTZ Camera |
|
Wireless Transmission:
|
Support Built in 3G transmission,, WCDMA, CDMA2000,GPRS, EDGE; Built in 4G module optional, TDD-LTE, FDD-LTE |
|
GPS Position:
|
Support Built GPS/BD Module |
Storage:
- HDD : Max 2.5” 2TB HDD
- SD Card: Max 128GB SD Card Mirror Recording Keep Data Safety
- Update: Support USB Updating, SD Card Updating,OTA Remote Updating
- File Format: H.264
- File System: Special FAT32 File System
- USB: USB Interface on Front Panel for data back up by U Disk,Hard Disk
|
Record Replay: |
Video Search: |
Search By Record Time/Record Type etc |
|
Playback:
|
Max support 4CH Replay /Stop/Fast/Slow at same time; |
|
|
Support forward and backward play at the speed of: x 2,x4,x8,x16. |
|
Security: |
User/Admin 2 Level Different Password
|
|
Voice Call:
|
Support voice call each other |
|
TTS Voice Broadcast:
|
Support TTS voice broadcast function. |
|
Serial Expand: |
Support LED Advertisement Panel,Oil Sensor,POS,Bus Station Broadcaster,Car OBD,ect.external device |
|
Power Manage men
|
Wide Voltage.Support Timed/Delay off |
|
Input Voltage: |
DC:+10V - +36V |
|
Output Voltage: |
+12V~1.5A,+5V~1.5A |
|
Power: |
Working <5W |
|
Temperature:
|
-20℃ - +70℃ |
|
Humidity:
|
20% - 80% |
|
Size: |
218 (D)* 161(W)* 65(H) mm |
|
Net Weight: |
2.2 Kg |

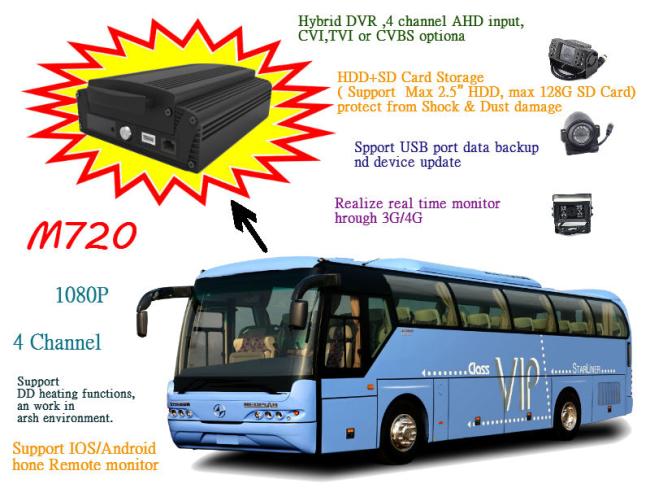

Image:
