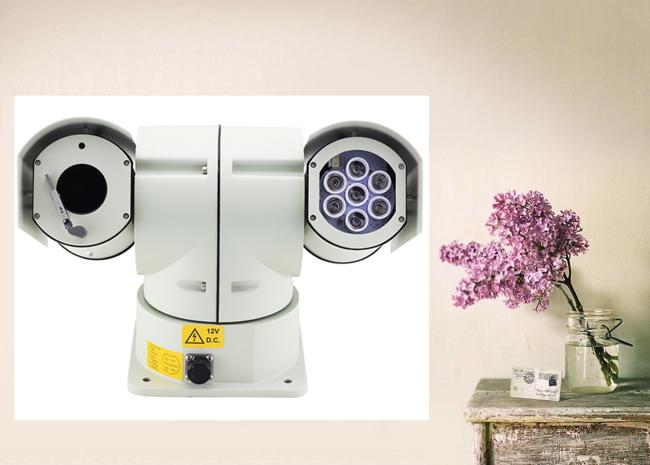

Infrared Night vision vehicle PTZ Camera rotate 360 security police 1/4"IT EXVIEW HAD CCD
Infrared Night vision vehicle PTZ Camera rotate 360 security police 1/4"IT EXVIEW HAD CCD
Model:C812
Especially for car environment design, safety vibration control.
1: adopting RS485 bus control and the remote wireless control.
2: the precision of the motor drive, stable running and responsive.
3:360°continuous rotation, no monitoring blind spots.
4: rotational speed according to the lens change times multiple automatic adjustment.
5: automatic focusing, automatic white balance.
6: backlight compensation function, a strong light environment can see all the objects; Screen shows the ball machine camera Angle position information
7: compatible with a variety of control protocol, baud rate is adjustable.
8: using the high strength aluminum shell, light weight, good waterproof performance, used in optical coating lenses at the same time, with increased light transmittance, dustproof, waterproof, and anti-static function.
specifications:
| Model | C812-HRM |
| Image Device | 1/4"IT EXVIEW HAD CCD |
| Camera Model | FCB-EX480C/CP |
| Effective Pixels | 752(H)×582(V) |
| Sync. System | Internal |
| Video Output | VBS 1.0Vp-p/75 ohm |
| white balance | A/M Automatic/manul |
| Scanning system | 15.625KHz(H) 50Hz(V) |
| Resolution | 420TVL/540TVL |
| SNR | ≥50dB |
| Electronic Shutter | 1/50~1/10,000s |
| Minimum Illumination | 0.07Lux |
| The Camera Functions | Automatic/manual focus, electronic shutter, automatic white balance, backlight compensation, automatic aperture |
| Imaging Lens | 18 times optical zoom. 12 and digital variable times F=4.1~73.8；F1.4~F0.3；2.8°~48° |
| Aperture & zoom | A/M Automatic/manul |
| Horizontal Rotation Range | Continuous rotate 360° |
| About Speed | 0.5～200/S |
| About Revolves The Scope | -90°～90° |
| Speed Up And Down | 0.5°～180°/S |
| Presetting Bit | 255 |
| Infrared Lamp | φ25×12,φ10×21 |
| IR Distance | 150m |
| About the line sweeps | On/off |
| Patrols The Path | Article 8, can be set to each of the 16 presets, cruising speed is adjustable, adjustable preset point time |
| Self-learning Function | Article 3, can record 1036 movement, can be embedded scan cruise and preset a action |
| Control Method | RS485,support Pelco-D,Pelco-P,Samsung,B01,A01,SAE,Kalatel |
| Protocol | 2400 ~ 19200 baud rate PELCO - D, P protocol control more |
| Screen Characters Menu | English OSD, can set the ball machine display information, change the camera function/brand, haeundae parameters, keyboard match, to restore the factory values |
| Quick Operation Function | A cruise, scanning, preset, wipers, switch, infrared lamp switch, the laser switch, 360 ° scan |
| Power | DC12V |
| Operating Temperature | -35℃-+55℃ |
| Waterproof Rate | IP66 |
