Industry HD 3G vehicle DVR recorder , Integrating WiFi GPS Voice Conversation
4- Channel Industry HD 3G Mobile DVR Integrating Wi-Fi GPS Voice Conversation
Main Features:
M705 series is a high-end mobile hard drive DVR dedicated for mobile surveillance market. Applying high-speed processor and embedded operating system and integrating various state-of-the-art technologies of IT industry

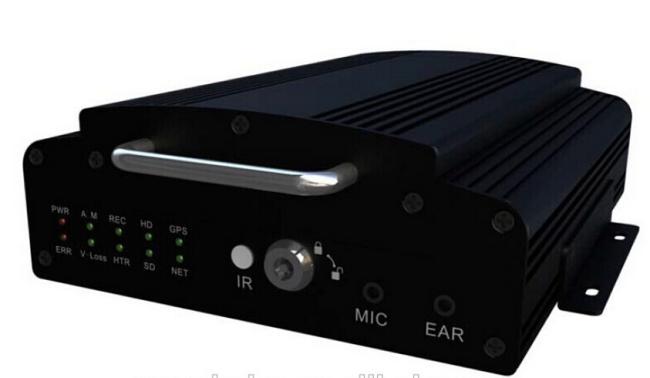

Product picture:
Product Parameter:
| Item | Description | |
| OS | Linux | |
| Graphics Operation Interface | System parameters can be set through external display and remote controller | |
| Security Management | 2-level management for user password, administrator password, supporting encrypted transmission | |
|
Video and Preview |
Video Input, Output |
4-channel video input, 1channel video output; 1.0Vp-p, 75Ω |
| OSD | Character superposition function, information superposition of time and date, device ID and GPS, etc. | |
|
Video Compression Format |
Compression coding. Applying Hisilicon hi-performance processor. | |
| Dual-Stream | Supported | |
|
Preview Function |
Preview of 1-channle, 4-image stitching, supporting full screen triggered by event and switching of stitched images | |
| Frame Rate |
PAL: 100 frames/s, up to 25 frames/s per channel; NTSC: 120 frames/s, up to 30 frames/s per channel |
|
| Resolution |
CIF, HD1 and D1 for selection, supporting 2 channels of D1+ 2 channels of CIF at the most |
|
| Quality | Grade 1 to grade 5 for selection (descending) | |
| Bit Rate |
CIF: 256Kbps ~ 1.5 Mbps, 8-level bit rates for selection HD1: 600Kbps ~ 2 Mbps, 8-level bit rates for selection D1: 800Kbps ~ 3Mbps, 8-level bit rates for selection |
|
| Audio |
Audio Input, Output |
4-channel input, 1-channel output |
|
Compression Format |
G.726 coding |

10 years experience on development and manufacture of mobile dvr , have mora than 20,000 systems installed all over the world, such as UAE( for school bus), UK( for truck). Mexico( for special military vehicles), etc. also until now , we have already got CE, ROHS , FCC and IEC certificates.
We welcome customized requirements on software and firmware
