4Ch GPS WIFI Full AHD HD DVR car camera with 2TB HDD / SD Card , H.264 Compression
4Ch GPS WIFI Full AHD 1080P H.264 Mobile DVR Support 2TB HDD And 128GB SD Card
Main Features:
HIS Solution,H.264 Compression,support 4ch 1080P AHD input and AHD Camera input. Exclusive pre-allocate File System protect data completeness,prevent SD Card fragment,ensure date stablely and completely.
6-36V wide voltage with low power consumption.
Unique UPS Technology ensures the integrality of record when power failure occurs,even can for 8-10s.HDD+SD Card Storage ( Support 2.5” HDD, max 128G SD Card) protect from Shock & Dust damage;support USB port data backup and device update;
Support HDD heating functions,can work in harsh environment.
Support GPS/BD/G-Sensor Extension modul;
Realize realtime monitor through 3G/4G;
Support Broadcast/Intercom/Text sent etc;can add oil sensor/temperature sensor/POS/LED Advertisement
Support IOS/Android Phone Remote monitor
Specifications:
| Item | Parameter | |||
| OS | Linux | |||
| Language | Chinese/English/Customized | |||
| Video Compression | H.264 | |||
| OSD | Overlays information such as date time and vehicle ID | |||
| GUI | Graphical User Interface | Setup system parameters with the remote control. | ||
| Video Record System | Video Input |
4CH AHD input, 2Ch Output |
||
| Preview |
Support 1 channel and 4 channels preview.,Support Manual /Alarm Trigger full screen preview |
|||
| Resolution | 1080P/720P/D1/HD1/CIF, MAX:4 channels of 1080P | |||
| Video Quality | 0-7 levels, 0 is the highest level. | |||
| Record Mode |
The default setting is auto recording after power on. Timed recording, alarm trigger recording and manual recording are supported. |
|||
| Audio | Audio Input | 4CH ,Aviation Plug | ||
| Audio Output | 1CH,Aviation Plug | |||
| Compression | G.726 compression, 8KB/s speed | |||
| Alarm Input | 6Ch Alarm Input, 2CH Alarm Output | |||
| Position | Support Built GPS/BD Module | |||
| Interface |
2CH RS232 to connect OBD, POS/Fuel Sensor/LED Advertisement Connection |
|||
| 1CH 485 Interface,Connect PTZ Camera | ||||
| G-Sensor | Support G-sensor | |||
| Storage | HDD + SD |
2TB Hard drive + 128GB SD Card |
||
| Upgrade | Support SD Card updating | |||
| File Format | H.264 | |||
| File System | Special FAT32 File System | |||
| Video Playback | Video Search | Search By Record Time/Record Type etc | ||
| Playback | Max support 4CH Replay /Stop/Fast/Slow at same time | |||
|
Support forward and backward play at the speed of: x 2,x4,x8,x16. |
||||
|
Voltage & Power |
Power Management | Wide Voltage.Support Timed/Delay off | ||
| Voltage Input | DC:+10V ~ +36V | |||
| Voltage Output | +12V@2.5A,+5V@2.5A | |||
| Power Consumption | Normal Working ＜5W | |||
| Working Environment | Temperature | -20℃ to +70℃ | ||
| Humidity | 20% to 80% | |||
| Security | Password | User/Admin 2 Level Different Password | ||
| others | Size | 218 (D)* 161(W)* 65(H) mm | ||
| Net Weight | 3kg | |||
Resolution:

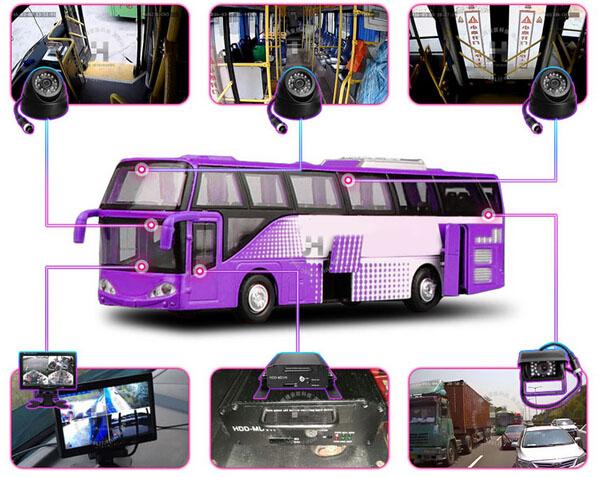

System Application:
