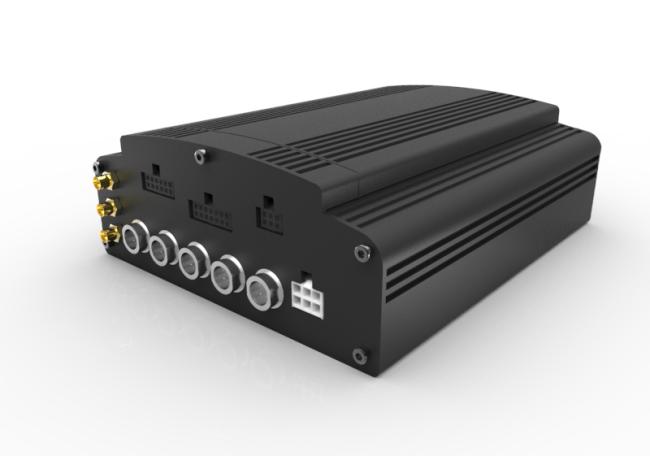

Truck Hybrid HDD 4 Camera Vehicle DVR 720P Support 3/4G WIFI GPS Function
Hybrid HDD 4 Camera Car DVR 1080p/720P support 3/4G WIFI GPS G-sensor function for truck
Car DVR Applications:
Buses, Coach, Logistic Trucks, Tractors, Police Cars, Taxi
Armored cars, Public security and law enforcement vehicles
Ambulances, Traffic duty vehicles and other fields.
MDVR Specification:
| Item | Parameter | |
| OS | Linux | |
| Language | English/Chinese/Customized | |
| Video Compression | H.264 Compression | |
| OSD | Overlays information such as date time and vehicle ID | |
| GUI | Graphical User Interface | Setup system parameters with the remote control. |
|
Video Record System |
Video Input |
4CH AHD input,CVI,TVI or CVBS aviation connector, 1.0Vp-p, 75Ω |
| Video Onput | 1 CVBS, 1.0Vp-p, 75Ω,Aviation,Support 1CH Full Screen,4CH Screen view | |
| Preview |
Support 1 channel and 4 channels preview., Support Manual/Alarm Trigger full screen preview |
|
| Resolution | 1080P/720P/D1/HD1/CIF, MAX:4 channels of 1080P | |
| Image Quality | 0-7 levels, 0 is the highest level. | |
| Video Standard |
PAL: 100f/s , CCIR625 line,50field; NTSC: 120f/s, CCIR525 line,60field; CIF: 256Kbps ~ 1.5Mbps, 8 level video quality optional; HD1: 600Kbps ~ 2.5Mbps, 8 level video quality optional; D1: 800Kbps ~ 3Mbps, 8 level video quality optional; 720P: 4Mbps-6Mbps, multi level video quality optional 1080P:4Mbps-8Mbps,multi level video quality optional |
|
| Record Mode |
The default setting is auto recording after power on. Timed recording, alarm trigger recording and manual recording are supported. |
|
| Audio | Audio Input | 4CH Aviation Plug Input |
| Audio Output | 2CH,headphone connect at front panel, BNC Connect on Back panel | |
| Compression | G.726 compression, 8KB/s speed | |
