IP66 Waterproof Car PTZ Camera Support Night Vision / Zoom Infrared , Metal Marerial
RECODA 2016 Car PTZ Camera C814 IP66 Waterpro of Zoom Infrared Laser
Main Fearture:
- All Metal case, high integration 16-bit processor, extremely low power consumption, super stability with osram high-intensity light-emitting chip.
- More optional zoom infrared laser, long night vision monitoring. smooth operation without vibration
- Industrial-grade Design, IP66 ,suitable for all kinds of bad weather.
Specification:
|
Item |
Description |
|
Power supply |
Normal dome:DC11V - DC12.8V 50/60Hz 2.0A Car surveillance PTZ:DC11V –DC18V 50/60Hz 2.0A |
|
Power consumption |
18W Heater:6W |
|
Preset position |
256 |
|
Zoom-rotation interaction |
The dome will adjust the manual control speed automatically according to the current zoom. |
|
Auto overturning |
The camera will rotate 180°automatically, when it reaches the vertical position. |
|
Pan scanning |
360°programmable |
|
Cruising track |
8 |
|
Pan speed(Max) |
300°/S |
|
Pan running speed |
0° -- 220°/S |
|
Pan range |
360°continuously |
|
Tilt range |
PTZ:-20—90° Dome:-95°-- 95° |
|
Tilt speed(Max) |
120°/S |
|
Tilt running speed |
0° -- 90°/S |
|
Communication |
RS485 |
|
Baud rate |
2400/4800/9600/19200 bps |
|
Fan / heater |
Auto control |
|
Infra Red distance |
80m (2 groups Infrared light) / 200 m (1 group infrared lamp with 1W linkage laser light) |
|
Relative humidity |
10-75%(without agglomeration) |
|
Work temperature |
Outdoor:–45℃ -- +60℃ |
|
Weight |
2.5KG |

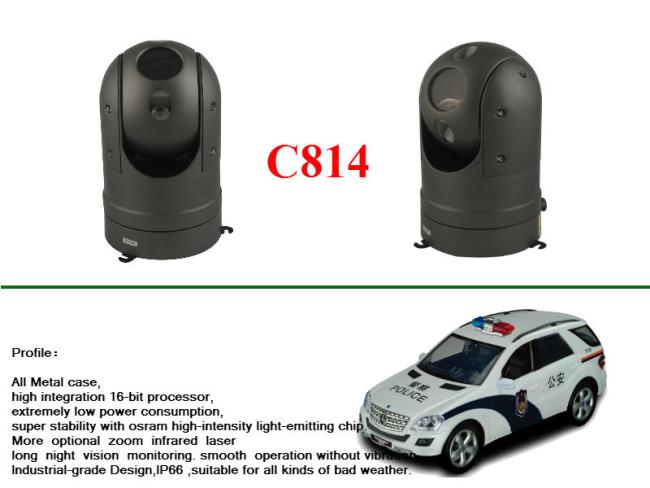

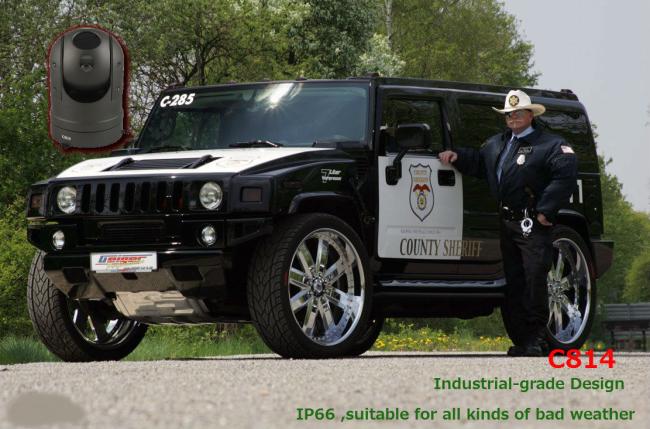

Image:
