Mobile Hidden Cameras In Cars / Infrared Thermal Camera Waterproof Support Color Image
RECODA 2016 New Item Hidden Cameras in Cars Infrared Thermal Camera For
Mobile
Vehicle Camera Main feature:
- Al metal-cased mini housing with standard fixed lens.
- Available in black finish.
- Low power consumption.
- Easy installation on ceiling or wall, surface or flush mount.
- Audio output.
Vehicle Camera Specification:
| Model | MT3R-701-235-U |
| Effective Pixel Array | 976Hx494V |
| Horizontal Resolution | 700TVL |
| Sensitivity | 0 Lux (LED On) |
| Scanning System | 2:1 Interlace |
| Synchronization | Internal |
| Infrared Spectrum | 850nm |
| Infrared LED | 6 LEDs with SMD type |
| IR range | 2 M |
| S/N Ratio | More Than 60 dB, (AGC Off) |
| Audio | Available |
| Switchable IR filter | No |
| Auto Gain Control | Auto |
| White Balance | Auto |
| Electronic Shutter | Auto |
| Back Light Compensation | Auto |
| Video Output | 1 Vp-p, 75ΩComposite |
| Gamma Ratio | 0.45 |
| Lens | Waterproof f2.35mm fixed iris |
| Horizontal angle of view | 145° |
| Pan Adjusting | +/-30 Degree |
| Tilt Adjusting | 0-90 Degree |
| Power Supply | 12V DC ±10% |
| Power Consumption | 190mA |
| Dimensions | 32.2(L) x 42.6(H) x 29.5 (W) mm |
| Net Weight | 51 g |
| Weatherproof | N/A |
| Operating Temperature | -25°C to +55°C |
Operation procedures:
- Attach the mounting bracket (4) to wall or ceiling, as required. Use the supplied screws to fix camera (5) in position ~ a firm mounting surface is essential for a stable installation.
- Connect the camera as follows:
DC Jack = 12vDC+/ 12vDC-,
BNC Jack = VIDEO OUTPUT.
RCA Jack = AUDIO OUTPUT
- Adjust camera position by loosening the fixed screw (3). Adjust the focus sharpness of the lens (1) by loosening the focus-lock screw (2).
- Re-tighten the all fixed screws.

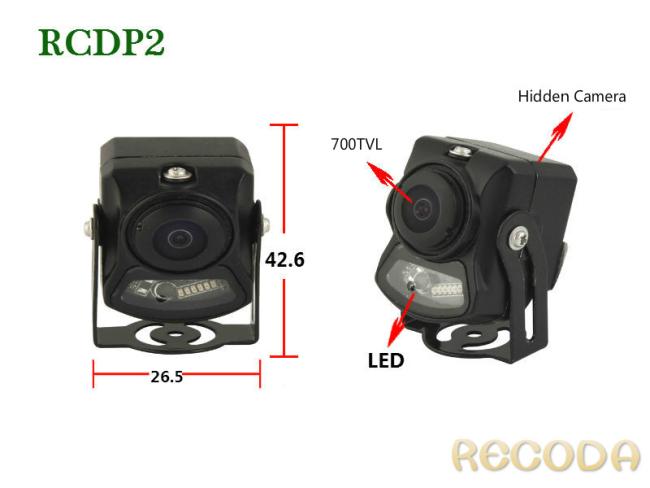

Vehicle Camera Image:
