High Resolution IR Car Reversing Camera For School Bus , 850nm Infrared Spectrum
Price:
negotiation
MOQ:
1 Unit
Delivery Time:
5 working day
Brand:
RECODA
Product Description
RECODA 2016 New Item Car Reversing Camera IR Day / Night Megapixel AHD
Camera CM02
Main Feature:
- High resolution, 1.3 Megapixel, 960P, 12VDC
- 12 Leds, with smart IR-CUT
- IR Day / Night Megapixel AHD Camera
- Waterproof IP67
Specification:
| Model | CM02-AHD ,1.3MP |
| Pick up Device | 1/3” CMOS Sensor AR0130 |
| Picture Elements | 1280(H)*960(V) |
| Effective pixels | 1.3M pixels |
| Day-night mode | External control (default) / Auto / color / |
| black and white | |
| Infrared Spectrum | 850nm |
| S/N Ratio | More than 48 dB, (AGC Off) |
| Auto Gain Control | Auto |
| White Balance | Auto |
| Electronic Shutter |
AUTO/ 1/50(1/60)-1/100,000sec |
| Auto | |
| Back Light Compensation | |
| Infrared LED | 12 LEDs |
| Infrared LED Range | 8 m |
| Video output | 1 Vp-p, 75Ωcomposite ,4 ways Din jack x1 |
| Audio Output | N/A |
| Mirror | N/A |
| Power Consumption | 170mA |
| Lens | Standard f3.6mm Fixed Megapixel Lens |
| Lens Mount | M12XP0.5mm Thread |
| Video footage to take up | 1min≈32MB |
| space | |
| Power Supply | 12V DC ±10% |
| Dimensions(L x W x H) | 76.4 x 60.5 x 56mm |
| Net Weight | 203g |
| Operating Temperature | -10°C to +50°C |

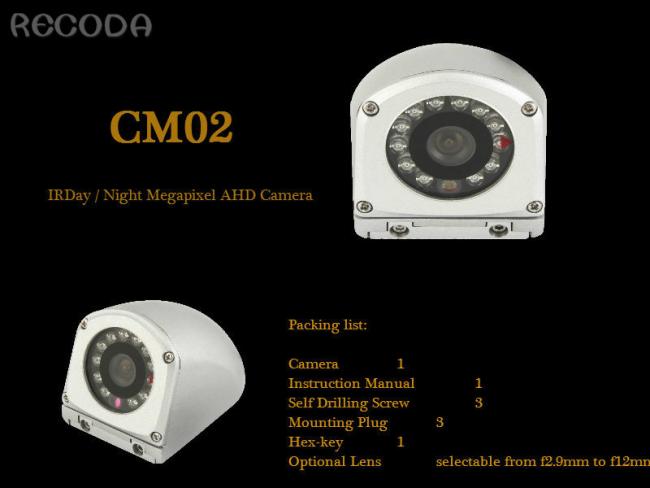

Image:
Operation procedures:
- Loosen the lock screws (3) by applied hex key, remove the mounting base (2) from the camera (1).
- Attach the mounting base (1) to the wall or ceiling, wherever you want to install the camera. Locate a wall stud or ceiling joint and secure the base by the supplied mounting screws (4).
- Connect the 4 ways male din jack to the female jack on the cable, when picture shown up on the monitor.
- Fix the camera on the mounting plate.
