Four Channel Recoda HD Mobile DVR Anti Shack For Vehicle , 1080P Resolution
RECODA HD Mobile DVR Live Video 1080P Resolution 4 Channel Anti Shack
For Vehicle
HDD DVR Main Feature:
Support on LIVE VIDEO checking；
Hybrid function, can be connect with different type of cameras.
High Resolution support on 1080P
1 year warranty
DVR Specification:
| Item | Parameter | ||
| OS | Linux | ||
| Language | English/Chinese/Customized | ||
| Video Compression | H.264 Compression | ||
| OSD | Overlays information such as date time and vehicle ID | ||
| GUI | Graphical User Interface | Setup system parameters with the remote control. | |
| Interface |
2CH RS232 to connect OBD, POS/Fuel Sensor/LED Advertisement Connection
|
||
| 1CH 485 Interface,Connect PTZ Camera | |||
| Wireless Transmission |
Support Built in 3G transmission,, WCDMA, CDMA2000,GPRS, EDGE; Built in 4G module optional, TDD-LTE, FDD-LTE |
||
| GPS Position | Support Built GPS/BD Module | ||
| HDD | Max 2.5” 2TB HDD | ||
| Storage | SD Card | Max 128GB SD Card Mirror Recording Keep Data Safety | |
| Update | Support USB Updating, SD Card Updating,OTA Remote Updating | ||
| File Format | H.264 | ||
| File System | Special FAT32 File System | ||
| USB | USB Interface on Front Panel for data back up by U Disk,Hard Disk | ||
| Record Replay | Video Search | Search By Record Time/Record Type etc | |
| Playback | Max support 4CH Replay /Stop/Fast/Slow at same time | ||
| Support forward and backward play at the speed of: x 2,x4,x8,x16. | |||
| Security | User/Admin 2 Level Different Password | ||
| Optional Functions | Voice Call | Support voice call each other | |
| TTS Voice Broadcast | Support TTS voice broadcast function. | ||
| Serial Expand |
Support LED Advertisement Panel,Oil Sensor, POS,Bus Station Broadcaster,Car OBD,ect.external device |
||
| Voltage & Power | Power Management | Wide Voltage.Support Timed/Delay off | |
| Input Voltage | DC:+10V - +36V | ||
| Output Voltage | +12V~1.5A,+5V~1.5A | ||
| Power | Working <5W | ||
| Working Environment | Temperature | -20℃ - +70℃ | |
| Humidity | 20% - 80% | ||
| Ohters |
Size
|
218 (D)* 161(W)* 65(H) mm | |
| Net Weight | 2.2 Kg | ||

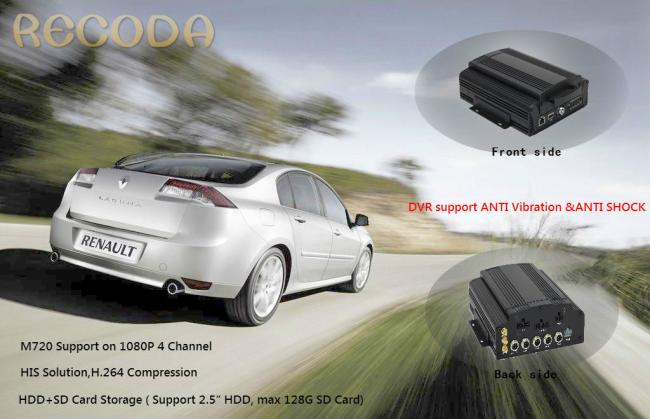

DVR Image:
