AHD / Analog Optional Car Reversing Camera , Rear View Mirror Camera IP68 For Truck
Price:
Negotiable
MOQ:
1
Delivery Time:
3-5 working days
Brand:
Recoda
Product Description
2MP Car Reversing Camera fit for front and rear view Weather proof IR for truck
C801
AHD car camera Product spec.:
- Backup or Front camera with auto shutter
- Super wide angle (180° )
- Performs in rugged conditions
- Distance label selectable to be open or closed
- Waterproof and weather resistant housing for outdoor use
- Night vision available, day/ night sensor for automatic adjustment
- IR distance: approx. 10-15m
- Infrared LED light: 18
- Mirror/ Normal image optional
| AHD camera Model | C801 |
| Image Device | 1/3" SONY SUPER HAD colours CCD |
| camera Resolution | 1/1.3/2 MP |
| Effective Pixels |
EIA:510(H)×492(V); CCIR:500(H)×582(V) |
| Scanning System | EIA:525 Lines,60 Field / sec, CCIR:625 Lines 50 Field / sec |
| Sync. System | Internal |
| Gamma Consumption | 0.45 |
| SNR | ≥48dB(AGC Off) |
| Electronic Shutter | On: EIA 1/60~1/100,000Sec,CCIR 1/50~1/100,000Sec; Off: EIA 1/60 Sec, CCIR 1/50 Sec |
| Minimum Illumination | 0.8 Lux(F:2.0),0 lux with built-in IR LED |
| IR Distance | 15 m(18 Infrared lamp) |
| AHD car camera Waterproof Level | IP66 |
| Operating Temperature/Humidity | -10℃～+50℃ RH95% Max |
| Storage Temperature/Humidity | -20℃～+60℃ RH95% Max |
| Power | DC12V±10% 600mA |
| Size | 75(W)X45(D)X75(H)mm |
| Net Weight | 300G |

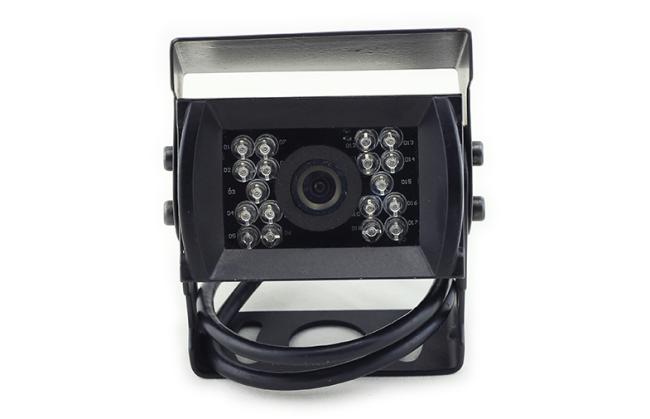

Product picture:
