960P Dual Lens 960P Front/ Rear View Night Vision Audio Car Camera 1.3 Megapixe
Price:
negotiation
MOQ:
1
Delivery Time:
3-5days after receiving your payment
Brand:
RECODA
Product Description
960P Dual Lens 960P Front/ Rear View Night Vision Audio
Car Camera
Features:
1.3Megapixel;
Aluminium allow housing;
140 degree Wide angle lens;
Cam 2 Option 120dB Real WDR
Strong light inhibition;
Cam1 Build-in IR LED;
Cam1 Audio output.
Specifications:
| Camera 1 | |
| Image Sensor | 1/3” CMOS AR0130 |
| TV System | PAL/NTSC (optional) |
| Picture Elements | 1280 (H) x 960 (V) |
| Sensitivity | 0 Lux (IR LED On) |
| Scanning System | Progressive scan RGB CMOS |
| Synchronization | Internal |
| S/N Ratio | More than 44dB (AGC Off) |
| Auto Gain Control (AGC) | Auto |
| Electronic Shutter | Auto |
| BLC | Auto |
| Infrared Spectrum | 940nm |
| Infrared LED | 6 LEDs |
| Video Output | 1 Vp-p, 75Ω,AHD |
| Audio | Available |
| Mirror | Optional |
| ICR | N/A |
| Noise Redution | 3D |
| Dymamic range | 83.5 dB |
| Lens | f2.5mm Megapixel |
| Pan Adjusting | 0-50° |
| Tilt Adjusting | 0-50° |
| Power Supply | 9-18V DC |
| Power Consumption | 110mA |
| Weatherproof/Water Proof | N/A |
| Operating Temperature |
-30°C to +70°C |
| Camera 2 | |
| Image Sensor | 1/3” CMOS AR0130 |
| TV System | PAL/NTSC (optional) |
| Picture Elements | 1280 (H) x 960 (V) |
| Sensitivity | 0.1 Lux/F1.2 |
| Scanning System | Progressive scan RGB CMOS |
| Synchronization | Internal |
| S/N Ratio | More than 44dB (AGC Off) |
| Auto Gain Control (AGC) | Auto |
| Electronic Shutter | Auto |
| BLC | Auto |
| Infrared Spectrum | N/A |
| Infrared LED | N/A |
| Video Output | 1 Vp-p, 75Ω,AHD |
| Audio | N/A |
| Mirror | Optional |
| ICR | N/A |
| Noise Redution | 3D |
| Dymamic range | 83.5 dB |
| Lens | f2.5mm Megapixel |
| Pan Adjusting | N/A |
| Tilt Adjusting | 0-80° |
| Power Supply | 9-18V DC |
| Power Consumption | 70mA |
| Weatherproof/Water Proof | N/A |
| Operating Temperature | -30°C to +70°C |

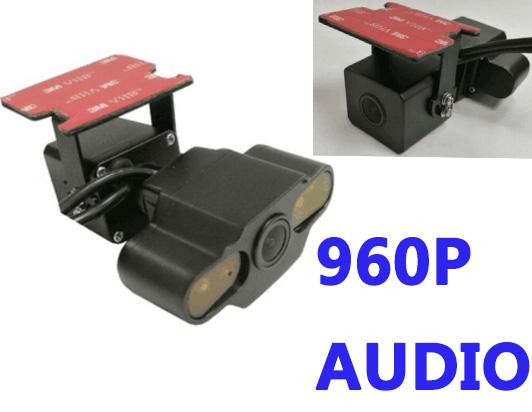

Product's Image:
Operation Procedures:
1. Adjust the position of (1) to change the angle of inner-forwarding camera 1.
2. Adjust the position of (2) to change the angle of out-forwarding camera 2.
3. Take off the 3M sticker of (3) to fix the whole camera to needed place.
4. Connect the cable as belows.
Packing list:
Camera 1
Instruction manual 1
Hex-key 1
