RECODA CR03W - AHD Waterproof Reversing Camera 170 Degree Super Wide View Ahd 960p Camera

Price Negotiable
Price: Negotiable
MOQ: 1 Unit
Delivery Time: 7 days after 1 year
Brand: RECODA
Product Description



RECODA CR03W-AHD Car Reversing Camera 170 Degree super wide view



AHD 960P camera





Main Features:





1. Support AHD coaxial HD output, clear image , 960P

2. No delay, no compression, low consumption, real-time transmission

3. Common use in vehicle HD large monitor,super HD image display.

4. Lens imported with original packaging, super wide angle 170°,no adjustment, no blind spot.

5. IP 67 waterproof grade, high reliability.

6. 8V~24V wide voltage design, power supply is more stable and safer





Specifications:





Model CR03W-AHD
Image sensor 1/3" progressive scan CMOS
Horizontal resolution 1.3Mega pixel
TV system PAL/NTSC
Effective pixel 1280(H)*960(V)
Low illumination 0.01Lux@(F1.2,AGC ON),0 Lux with IR
S/N Ratio 44dB
Auto Gain Control support
Back Light Comp support
White Banlance auto
Digital Noise Reduction 2D/3D-DNR
Electronic Shutter AUTO/1/50(1/60)-1(50,000Sec)
Video output AHD VIDEO(960P)
Output connector 4Pin aviation head cable (Default)
Lens/Angle of view 1.5mm/H=170°,M12*P0.5
Waterproof grade IP67
Operating Temperature/Humidity -40°C~+85°C/ Humidity <90%(No condensation)
Power supply DC12V±10%
Power consumption 0.6W
Dimension

32*23.5*23.5

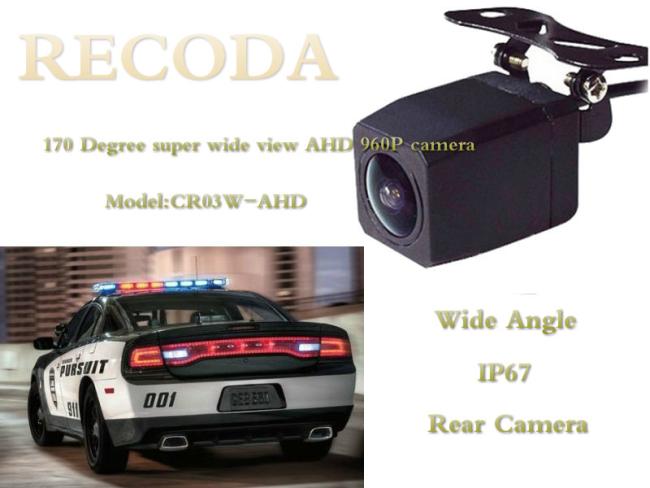

Products's Picture:









About RECODA:

RECODA is one of the leading vehicle surveillance system providers in China nowadays. We specialize in manufacturing, R&D of Mobile DVRs &Car Cameras for public transit, school buses, Ambulances, Trucks, Taxi, Vans & Police law enforcement vehicles and body-worn Camera Recorder.
Currently, all items are exported to America, Europe ,Australia and other Asian countries. RECODA have over30,000 systems installations all over the world.
All items were verified by European CE and ROHS, US FCC, IEC Security test.
With plenty skill workers, professional hardware and software engineer, and carefully component choosing, we are confident of our quality. Our mission is to provide you tested and qualified auto security products.
With over 10 years R&D team and full trained technical team to supply reliable products, effective after-sales service. We Looking for product regional or country agent . Once long term cooperation established, we will try our best to share benefit with you. Aim is simple: to share win-win future with all distributors worldwide.
