School Bus Hybrid HD Mobile DVR 8CH 1080P 4G GPS WIFI rs485 RS232 RJ45
School Bus Hybrid HD Mobile DVR 8CH 1080P 4G GPS WIFI rs485 RS232 RJ45
MDVR Advantages:
Power source for up to 48cameras.
Record quality footage for review, donload, and inspection.
Transimits SOS alarm via CMS software to the control center to react quickly.
MDVR Applications:
Buses, Coach, Logistic Trucks, Tractors, Police Cars, Taxi
Armored cars, Public security and law enforcement vehicles
Ambulances, Traffic duty vehicles and other fields.
MDVR Specification:
| Item | Parameter | |
| OS | Linux | |
| Language | English/Chinese/Customized | |
| Video Compression | H.264 Compression | |
| OSD | Overlays information such as date time and vehicle ID | |
| GUI | Graphical User Interface | Setup system parameters with the remote control. |
|
Video Record System |
Video Input | 8CH 1080P AHD input,aviation connector, 1.0Vp-p, 75Ω |
| Video Onput | 1 CVBS, 1.0Vp-p, 75Ω,Aviation,Support 1CH Full Screen,4CH Screen view | |
| Preview |
Support 1 channel and 4 channels preview., Support Manual/Alarm Trigger full screen preview |
|
| Resolution | 1080P/960P/720P/D1/HD1/CIF, MAX:4 channels of 720P | |
| Image Quality | 1-4 levels, 1 is the highest level. | |
| Video Standard |
PAL: 100f/s , CCIR625 line,50field; NTSC: 120f/s, CCIR525 line,60field; CIF: 256Kbps ~ 1.5Mbps, 8 level video quality optional; HD1: 600Kbps ~ 2.5Mbps, 8 level video quality optional; D1: 800Kbps ~ 3Mbps, 8 level video quality optional; 720P: 4Mbps-6Mbps, multi level video quality optional |
|

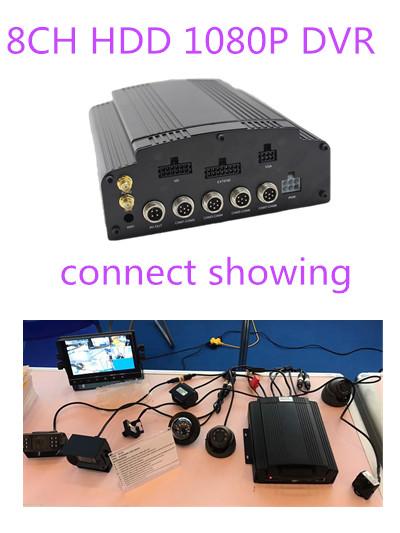

mobile DVR picture
Free CMS software:
