M510 Ambarella A12 4G Body Camera , 1440P Full HD Body Worn Camera
1440P full HD body worn camera Ambarella A12 4G Body worn amera
About the 4G body camera (M510) :
1 . Ambarella A12 Super Clear Chipset
2 . 3000 MAH Battery ,11hours work time , police or someone who used
the 4G body camera don't worry about the power can't enough in a day.
3 . True 1440P Super HD Video , the video resolution is so high that you can watch a clear scene. In some urgent situation, 1440P AHD video of the 4G body camera can help you get full hd evidence to tackle the trouble.
4 . One Touch Recording , it's quick and convenient to start recording. It will start recording, when you power on the body worn camera and press the recording button.
5 . 140°field of view , our 4G body worn camera can record a wide rang of area clearly
6 . Infrared Night Vision Option , the 4G body camera can record up to 10 meters with visible face detection in the evening or in the dark
7 . Included Software . As we have our own R&D team for software ,so we can customized make special software or firmware for our close distributor or big order
8 . IP 67 water , drop and shock resistant, it means that the 4G body camera can be used in many kinds of harsh environment , such as in a rain or snow day , the function of the 4G Body Camera will also go well
9 . 16GB / 32GB / 64GB / 128GB available , it can meet different needs
10 . Built-in 4G WIFI GPS Optional , we can manufacture 4G body cameras according your needs. The function of 4G WIFI and GPS can make people who use the body worn camera connect with the center
Specification :
| RECORDING | |
| Sensor | 5MP CMOS |
| Chipset | Ambarella A12A55 |
| Top pixel | 21 M(6144x3456 16:9) (5M/8M/10M/12M/16M/21M) |
| Video Resolution |
Multiple Recording Resolution 2560*1440P30/2304x1296 30p/ 1920x1080 30p /1440*1080 30p/1280x720 60p /1280x720 30p /848x480 60p/848*480 30p/720*480 30p |
| Video Format | H.264 .AVI/MPEG4 |
| Fast forward | 2X, 4X, 8X, 16X, 32X, 64X |
| REW | 2X, 4X, 8X, 16X, 32X, 64X |
| Audio | High Quality Build-in Microphone. |
| Audio Format | AAC2./MP3 |
| Water Mark | User ID, Time and date Stamp Imbedded into Video. |
| Camera | 21 Megapixel Camera option with optional burst shot(3 or 5 photos) |
| Camera Format | JPEG |
| Snap Shot | Capture Photos During Video Recording |
| Recording Time |
Continuous recording time: 540 minutes (battery full charged, IR closed, resolution ratio 640*480) |
| Storage Capacity | 16G(32G/64G) |
| Storage Level | Visual Indicator |
| Record Led | Red |
| One Button Recording | Support One Button Record |
| Activation prompt | Audible, Visual, and Tactile Vibration Confirm Activation of Record and Stop |
| Pre-record function | ≥10s pre-record. |
| Last-record function | ≥10s last-record |
| Video quality | Best/better/normal |
| Video section | 5min/10min/15min/30min/45min |
| Burst | 2/3/5/10/15/20 Shot burst picture taking |
| Red IR switch | Auto/manual |
| Motion detection | Auto/manual |
| Audio guide | Support |
| Chime | Support |
| GPS | Support (Build-in) optional |
| Language | Chinese/English/Others(OEM) |
| 4G | LTE/FDD Mode ,Real time Live View Stream, Point to Point |
| WiFi |
802.11 b/g/n application support , live view stream, playback video files ,download video , control and setting operation |
| Screen protection | 30s/1min/3min/5min |
| Timing photography | 5/10 Seconds |
| Brightness | Low/high |
| Auto turn off | 30s/1min/3min/5min |
| Key tone | Support |
| Sound volume | Support |
| File type | Police control/criminal inspection/public security |
| Slide | Support |
| VIDEO/IMAGE REVIEW | |
| LCD Screen | 2 inch TFT-LCD High-Resolution Color Display |
| Audio Playback | Yes |
| Video Output | HDMI 1.3 Port |
| Video Transfer | USB 2.0 |
| CAMERA | |
| Recording Angle | Wide Angle 140 degrees |
| Night Vision | Up to 10 Meters with Visible Face Detection |
| Waterproof | IP67 |
| Clip | High Quality Metal Clip with 360 degrees Rotation |
| PTT | Can Connect to Different Types of Radios |
| BATTERY | |
| Type | Built-in 2400mAH Lithium |
| Charging Time | 180 minutes |
| Battery Life | 10 Hours |
| Battery Level | Visual Indicator |
| OTHERS | |
| Unique ID number/unit | Include 5 digit device ID and 6 digit police ID |
| Password protect |
To set an administrator password to allow deletion via software. User can only view the videos but cannot delete it. |
| Dimension | 96 mm *62 mm *31mm (2.91” * 1.83” *0.93”) |
| Weight | 160g (5.64oz) |
| Working Temperature | -40～60 degrees Celsius |
| Storage temperature | -20～55 degrees Celsius |
| ACCESSORIES | |

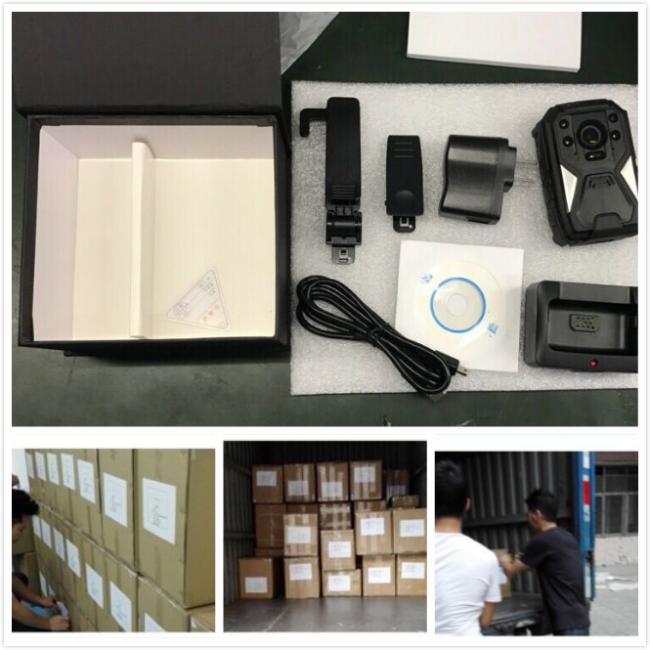

| Standard Accessories | USB cable, Charger, Manual, Driver CD, Universal metal clip, Vehicle mounting |

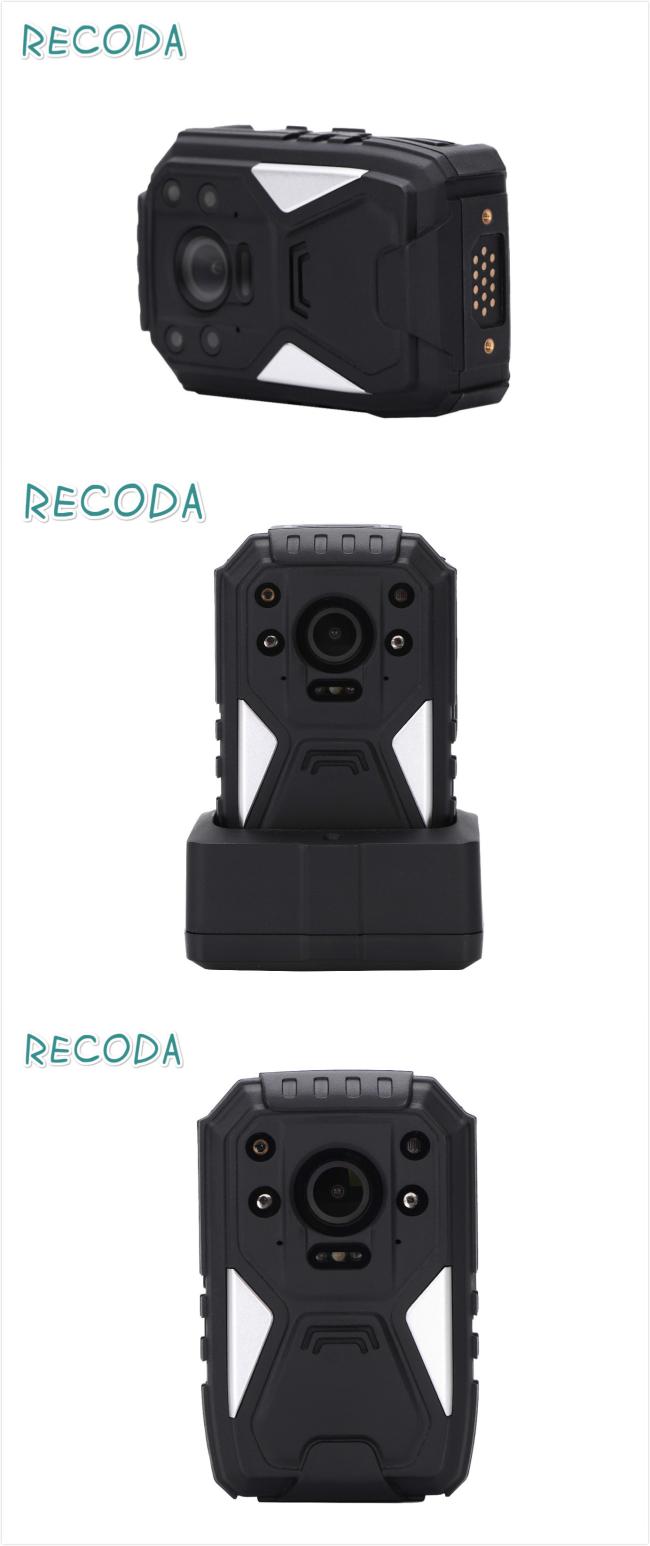

The image of 4G body camera
