M620 4CH 1080P AHD SD Card Mobile DVR with GPS 3G / 4G WIFI optional
4CH 1080P AHD SD Card Mobile DVR with GPS 3G / 4G WIFI optional
SD Card Mobile DVR main features
H.264 Video Compression
Support 4CH 1080P AHD Camera input
10-36V Wide Voltage, Lower power consumption
SD Card Storage ( Dual SD Card, each max 128GB )
Support GPS , 3G / 4G live view , WIFI /G-sensor Optional
Support to connect OBD on the vehicles
High anti vibration Aviation plug

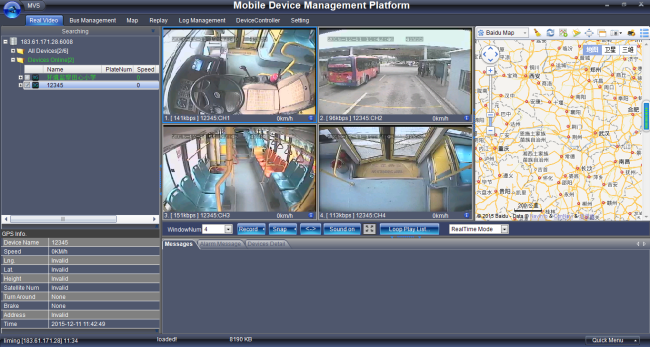

Free live view and tracking CMS platform
The details about these features

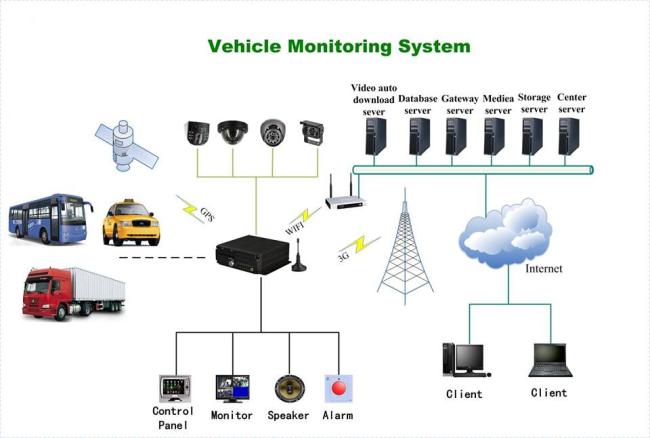

Recoda M620 SD Card Mobile DVR is a modernizated product . First of all , it supports dual SD Card Storage , and each sd card storage can obtain 128 GB max . The storage is enough to store some recording files . The resolution has upgraded , it can Support 4CH 1080P AHD Camera input , the recording secnes will be so clear . The SD Card Mobile DVR support 3G / 4G live view , it's convenient for users to monitor theact of driver , the situation in the vehicle . And according to your needs , you can choose the SD Card Mobile DVR whether support 3G / 4G , GPS , WIFI . Recoda can provide a customized service for you . One of the most important is that we can provide a free live view and tracking CMS platform . In this platform , it's free to connect any SD Card Mobile DVR that you want , our company will provide technical support .
SD Card Moible DVR Specification
| Item | Parameter | |||
| OS | Linux | |||
| Language | Chinese/English/Customized | |||
| Video Compression | H.264 | |||
| OSD | Overlays information such as date time and vehicle ID | |||
| GUI | Graphical User Interface | Setup system parameters with the remote control. | ||
| Video Record System | Video Input |
4CH AHD input,CVI,TVI or CVBS aviation connector, 1.0Vp-p, 75Ω |
||
| Video Output |
1 CVBS, 1.0Vp-p, 75Ω,Aviation,Support 1CH Full Screen, 4CH Screen |
|||
| Preview |
Support 1 channel and 4 channels preview.,Support Manual /Alarm Trigger full screen preview |
|||
| Resolution | 1080P/720P/D1/HD1/CIF, MAX:4 channels of 1080P | |||
| Video Quality | 0-7 levels, 0 is the highest level. | |||
| Video Standard |
PAL: 100f/s , CCIR625 line,50field; 1080P:4Mbps-8Mbps,multi level video quality optional |
|||
| Record Mode |
The default setting is auto recording after power on. Timed recording, alarm trigger recording and manual recording are supported. |
|||
| Audio | Audio Input | 4CH ,Aviation Plug | ||
| Audio Output | 1CH,Aviation Plug | |||
| Compression | G.726 compression, 8KB/s speed | |||
| Alarm Input | 6Ch Alarm Input, kinds of alarm linkage support | |||
| Alarm Output | 2CH Alarm Output | |||
| Position | Support Built GPS/BD Module | |||
| Interface |
2CH RS232 to connect OBD, POS/Fuel Sensor/LED Advertisement Connection
|
|||
| 1CH 485 Interface,Connect PTZ Camera | ||||
| G-Sensor | Support G-sensor | |||
| Storage | SD | Dual SD Card,each max 128GB SD Card loop recording | ||
| Upgrade | Support SD Card updating | |||
| File Format | H.264 | |||
| File System | Special FAT32 File System | |||
| Video Playback | Video Search | Search By Record Time/Record Type etc | ||
| Playback | Max support 4CH Replay /Stop/Fast/Slow at same time | |||
|
Support forward and backward play at the speed of: x 2,x4,x8,x16. |
||||
|
Voltage & Power |
Power Management | Wide Voltage.Support Timed/Delay off | ||
| Voltage Input | DC:+10V ~ +36V | |||
| Voltage Output | +12V@2.5A,+5V@2.5A | |||
| Power Consumption | Normal Working ＜5W | |||
| Working Environment | Temperature | -20℃ to +70℃ | ||
| Humidity | 20% to 80% | |||
| Security | Password | User/Admin 2 Level Different Password | ||
| others | Size | 150(W) x57(H) x168(D) mm | ||
| Net Weight | 1.1kg | |||
M620 SD Card Mobile DVR Pictures
