1.3MP AHD Dome Car PTZ Camera Metal Case For Military Field Surveillance
1.3MP / 2.0MP AHD Dome Vehicle Mounted Police Car PTZ Camera System
Feature:
This AHD speed dome Car PTZ camera is designed for practical and extreme applications, such as military field surveillance, security outdoor evidencing etc
Portable with compact design & high reliability;
WDR supported; 2D&3D Noise Reduction
1. Structure compact, installation is convenient;
2. IR Night-vision : 70-80m distance;

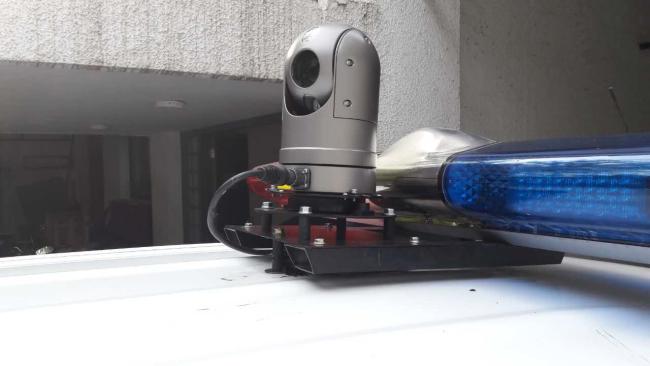

2. Two Types install methods :Fixed top mounted with powerful magnets or Top mounted with a vehicle shock-absorb
3. Industrial-grade Design, IP66 ,suitable for all kinds of bad weather.
4. All Metal case, high integration 16-bit processor, extremely low power consumption, super
stability with osram high-intensity light-emitting chip.
5. More optional zoom infrared laser, long night vision monitoring. smooth operation without vibration
AHD 1.3MP, AHD 2.0MP,IP130, IP200 optional
Description:
| Model | C814-AHD | |
| Image Sensor | 1.3 / 2.0Megapixels Sensor | |
| Video Resolution | 720P & 960P | |
| Features | weather-proof, anti-vibration and anti-corrosion | |
| Camera Lens | 18X Optical Zoom 4.7±10%~84.6±10%mm) | |
| Pan | Control speed | 0.05° - 120°/s, adjustable; |
| Preset speed | 50°/s | |
| Tilt | Control speed | 0.03° - 90°/s, adjustable; |
| Preset speed | 120°/s | |
| Low Illumination | Color 0.1 / B&W 0.01LUX | |
| Infrared Distance | Efficient 80M IR night vision | |
| Communication Protocol | VISCA,BAUD:9600bps PELCO-D/P,BAUD | |
| Composite video output | 1.0Vp-p(75Ω/BNC) | |
| Electronic Shutter | Auto / manual 1/50 ~ 1/10000 S | |
| Day & Night switching | Automatic / Color / B&W Mode；Automatic synchronization IR-CUT | |
| Mounting Type | Magnet / Fixed / Fixed with Damper | |
| Power Supply | DC12V ± 20% | |

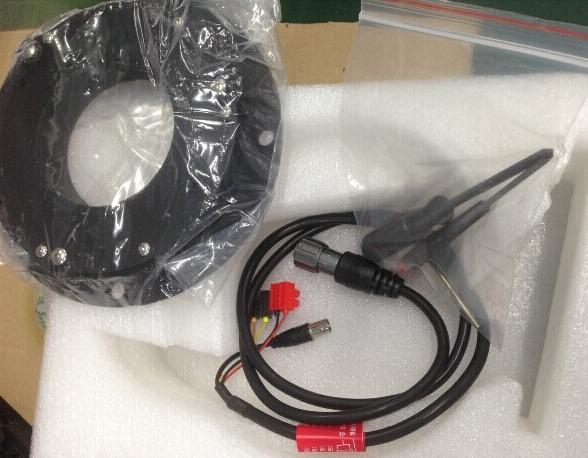

Product's Pictures:
Application:
