DS-20P 19 Inch LCD Monitor Mobile Vehicle DVR Camera Docking Station Recoda 20 Ports
Recoda 20 ports Police Body Worn Camera Docking Station with 19 Inch LCD Monitor
Docking station (DS-20P)
Features:
1. With 19 inch 1920*1280 resolution LCD Monitor to check the status for charging and recording output
2. Size:50CM*37CM*149CM
3. Locker:5 Floor
4. Station support:20 Units Maximum support 25 units
5. Support touch screen
6. Connect 20 body worn cameras to work together
7. With 8 removable Hard disk box ,support connect 2TB-10TB hard disk .
8. Srorage : 64GB Solid state disk for system + port lsi Array card, layers can be inserted hard disk box, you can insert 8 hard disk
9. RJ45 interface 100M network port
10. 600W module power supply 110 ~ 240W input
11. Install windows7 English operating system
12. Power cord convenient packaging wooden box
Specification:
| Item | specification |
| House | dimension 2.50CM*37CM*149CM(L*W*H) 20 usb ports |
| Screen size | 19 inch LED |
| Screen Resolution | 1920*1280 |
| Screen colur | 16.2M |
| Screen brightness | 250cd/m² |
| Touch Screen | Capacitive touch screen | ||
| Morthboard | J1900 Industrial Motherboard | ||
| CPU | Intel Turbo Boost | 2.42 GHZ double cores | |
| RAM | DDR3 1600L 4GB | ||
| SSD | SSD 64G | ||
| Hard drive bay | One bay for inserting a hard disk | ||
| Hard disk | optional hard drive 2T /4T/ 6T /8T/10T hard drive | ||
| Power | Industrial power supply output rating 600W | ||
| Interface | RJ45 interface 100M network port | ||
| Work temperature | subzero 20 ---+80 degree temperatures, | ||
|
Storage Temperature Storage Humidity |
subzero 20℃——60℃ | ||
| Humidity:10%~90% | |||
| Lan cable | RJ45 100M cable | ||
| Power cable | Optional power cable: China standard, European standard, American Standard, British Standard | ||
| Power supply | AC power source | 110-220V AC | |
| Operation system | Default optional XP/Win8/Win10 the system Win7 system | ||
| Docking station system | Optional installation docking station system | ||

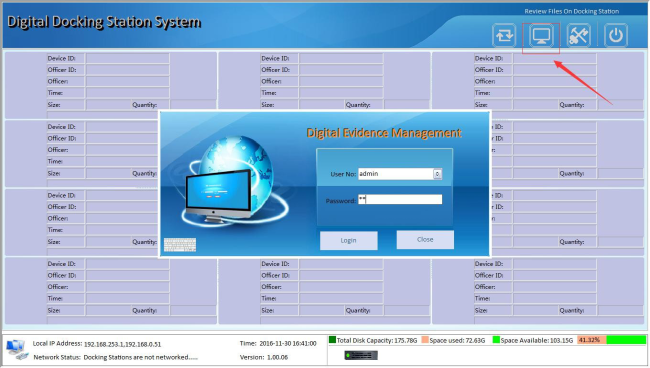

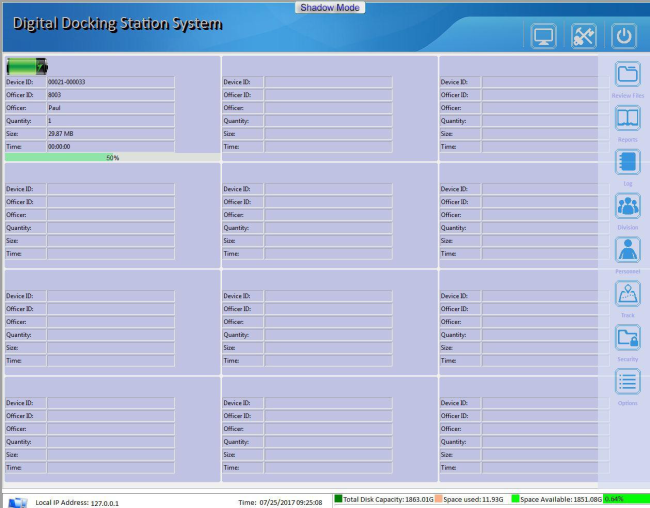

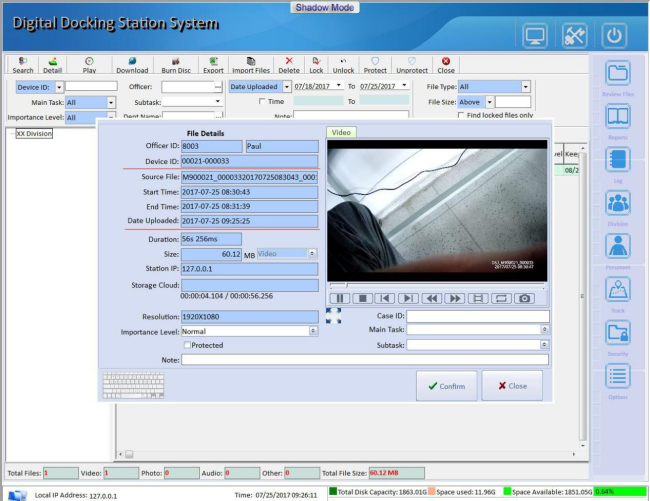

Software pictures
