720P AHD Mobile Vehicle DVR 4CH Wifi Auto Download Anti Shock With SD Card
Price:
Negotiation
MOQ:
1 Unit
Delivery Time:
3 DAYS AFTER RECEIVED PAYMENT
Brand:
RECODA
Product Description
720P AHD Mobile DVR 4CH With SD Card Mobile DVR GPS Optional Wifi Auto-download

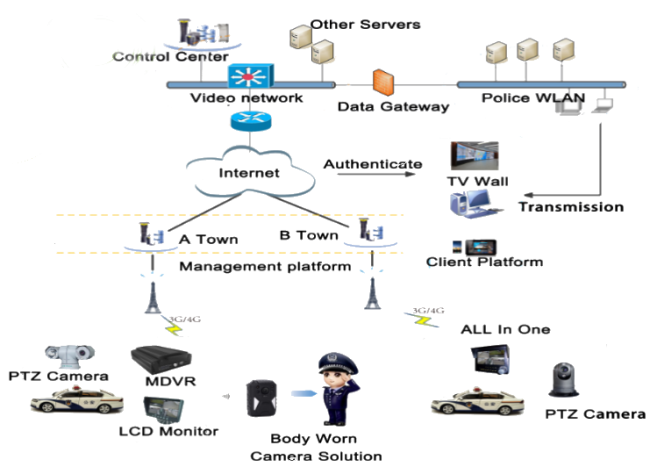

Solution:
Specification:
| Model | M610AHD |
| System | |
| OS | Linux |
| Language | Chinese/English/Customized |
| Video | |
| Video Input | 4CH 720P AHD input, aviation connector, 1.0Vp-p, 75Ω |
| Video Output | 1 CVBS, 1.0Vp-p, 75Ω,Aviation,Support 1CH Full Screen,4CH Screen |
| Video Compression | H.264 |
| Video Quality | 1-4 levels, 1 is the highest level. |
| Video Standard | PAL: 100f/s , CCIR625 line,50field; NTSC: 120f/s, CCIR525 line,60field; CIF: 256Kbps ~ 1.5Mbps, 8 level video quality optional; HD1: 600Kbps ~ 2.5Mbps, 8 level video quality optional; D1: 800Kbps ~ 3Mbps, 8 level video quality optional; 720P: 4Mbps-6Mbps, multi level video quality optional |
| Audio | |
| Audio Input | 4CH ,Aviation Plug |
| Audio Output | 1CH,Aviation Plug |
| Audio Compression | G.726 compression, 8KB/s speed |
| Display | |
| OSD | Overlays information such as date time and vehicle ID |
| Preview |
Support 1 channel and 4 channels preview, Support Manual /Alarm Trigger full screen preview |
| Graphical User Interface | Setup system parameters with the remote control. |
| Recording | |
| Resolution |
720P/D1/HD1/CIF, MAX:4 channels of 720P and 4 channels of D1 |
| Record Mode | The default setting is auto recording after power on.Timed recording, Alarm trigger recording and manual recording are supported. |
| Alarm | |
| Alarm Input | 6Ch Alarm Input, kinds of alarm linkage support |
| Alarm Output | 2CH Alarm Output |
| Playback | |
| Search Mode | Search By Record Time/Record Type etc |
| Playback Speed |
Max support 4CH Replay /Stop/Fast/Slow at same time Support forward and backward play at the speed of: x 2,x4,x8,x16. |
| Network | |
| 123 | |
| Ethernet | RJ-45 port (10/100M) |
| 3G/4G/WiFi | Optional |
| GPS | Built-in high accurate GPS module(optional) |
| G-Sensor | Support G-sensor |
| Storage | |
| SD Card | Dual SD Card, each max 128GB SD Card loop recording |
| Auxiliary Interface | |
| USB | 1 Port , USB 2.0 |
| RS485 | 1 Port, For PTZ control |
| RS232 | 2 Ports, For Temperature Sensor, Fuel Sensor ect |
| General | |
| Voltage Input | DC:+10V ~ +36V |
| Voltage Output | +12V@2.5A,+5V@2.5A |
| Power Consumption | Normal Working ＜5W |
| Power Management | Wide Voltage. Support Timed/Delay off |
| Temperature | -20℃ to +70℃ |
| Humidity | 20% to 80% |
| Size | 150(W) x57(H) x168(D) mm |
| Net Weight | 1.1kg |

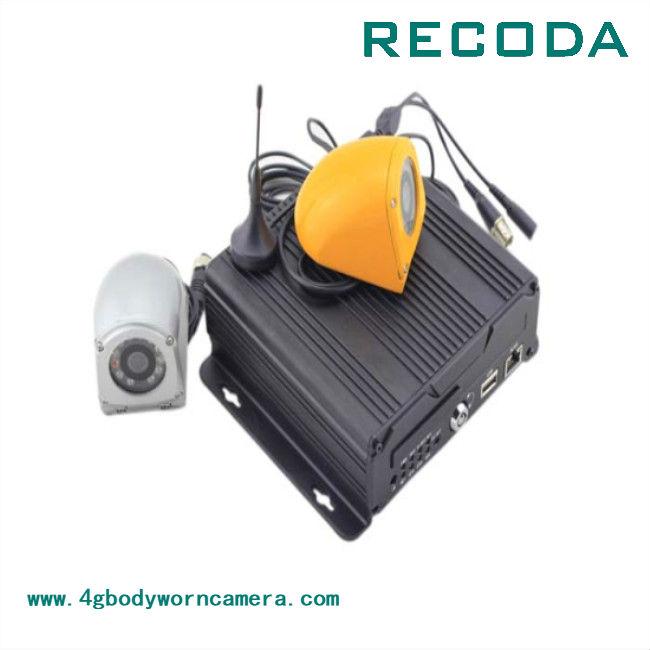

Image:
