M510 Wide Angle 1440P HD 4G Body Camera Live Streaming IP 67 Waterproof With GPS WIFI
1440P HD 4G live streaming body worn camera with GPS WIFI police body camera
Features of 4G body camera (M510) :
Recoda M510 Body Worn Camera can offer live transmission of video, audio, real-time alerts and GPS information via 4G, 3G and Wi-Fi connectivity.
The transmission element enables a remote connection to a body worn camera in the field, allowing an operator to view live video, communicate with the wearer and understand their position via GPS.
Alternatively, the wearer of the device can send an alert back to a control room, monitoring station or command centre with their live video, GPS location details and a request for assistance.
- Ambarella A12 Super Clear Chipset
![]()
32 Megapixel Camera![]()
3500 MAH Battery ,11hours work time![]()
True 1440P Super HD Video![]()
One Touch Recording![]()
140°field of view![]()
Infrared Night Vision Option![]()
Pre and Post Event Recording![]()
Included Software![]()
User ID,Date＆Time Stamp![]()
IP 67 water,drop and shock resistant![]()
16GB/32GB/64GB/128GB available![]()
Built-in 4G WIFI GPS Optional
32 Megapixel Camera
3500 MAH Battery ,11hours work time
True 1440P Super HD Video
One Touch Recording
140°field of view
Infrared Night Vision Option
Pre and Post Event Recording
Included Software
User ID,Date＆Time Stamp
IP 67 water,drop and shock resistant
16GB/32GB/64GB/128GB available
Built-in 4G WIFI GPS OptionalSpecification :
| RECORDING | |
| Sensor | 5MP CMOS |
| Chipset | Ambarella A12A55 |
| Top pixel | 21 M(6144x3456 16:9) (5M/8M/10M/12M/16M/21M) |
| Video Resolution |
Multiple Recording Resolution 2560*1440P30/2304x1296 30p/ 1920x1080 30p /1440*1080 30p/1280x720 60p /1280x720 30p /848x480 60p/848*480 30p/720*480 30p |
| Video Format | H.264 .AVI/MPEG4 |
| Fast forward | 2X, 4X, 8X, 16X, 32X, 64X |
| REW | 2X, 4X, 8X, 16X, 32X, 64X |
| Audio | High Quality Build-in Microphone. |
| Audio Format | AAC2./MP3 |
| Water Mark | User ID, Time and date Stamp Imbedded into Video. |
| Camera | 21 Megapixel Camera option with optional burst shot(3 or 5 photos) |
| Camera Format | JPEG |
| Snap Shot | Capture Photos During Video Recording |
| Recording Time |
Continuous recording time: 540 minutes (battery full charged, IR closed, resolution ratio 640*480) |
| Storage Capacity | 16G(32G/64G) |
| Storage Level | Visual Indicator |
| Record Led | Red |
| One Button Recording | Support One Button Record |
| Activation prompt | Audible, Visual, and Tactile Vibration Confirm Activation of Record and Stop |
| Pre-record function | ≥10s pre-record. |
| Last-record function | ≥10s last-record |
| Video quality | Best/better/normal |
| Video section | 5min/10min/15min/30min/45min |
| Burst | 2/3/5/10/15/20 Shot burst picture taking |
| Red IR switch | Auto/manual |
| Motion detection | Auto/manual |
| Audio guide | Support |
| Chime | Support |
| GPS | Support (Build-in) optional |
| Language | Chinese/English/Others(OEM) |
| 4G | LTE/FDD Mode ,Real time Live View Stream, Point to Point |
| WiFi |
802.11 b/g/n application support , live view stream, playback video files ,download video , control and setting operation |
| Screen protection | 30s/1min/3min/5min |
| Timing photography | 5/10 Seconds |
| Brightness | Low/high |
| Auto turn off | 30s/1min/3min/5min |
| Key tone | Support |
| Sound volume | Support |
| File type | Police control/criminal inspection/public security |
| Slide | Support |
| VIDEO/IMAGE REVIEW | |
| LCD Screen | 2 inch TFT-LCD High-Resolution Color Display |
| Audio Playback | Yes |
| Video Output | HDMI 1.3 Port |
| Video Transfer | USB 2.0 |
| CAMERA | |
| Recording Angle | Wide Angle 140 degrees |
| Night Vision | Up to 10 Meters with Visible Face Detection |
| Waterproof | IP67 |
| Clip | High Quality Metal Clip with 360 degrees Rotation |
| PTT | Can Connect to Different Types of Radios |
| BATTERY | |
| Type | Built-in 2400mAH Lithium |
| Charging Time | 180 minutes |
| Battery Life | 10 Hours |
| Battery Level | Visual Indicator |
| OTHERS | |
| Unique ID number/unit | Include 5 digit device ID and 6 digit police ID |
| Password protect |
To set an administrator password to allow deletion via software. User can only view the videos but cannot delete it. |
| Dimension | 96 mm *62 mm *31mm (2.91” * 1.83” *0.93”) |
| Weight | 160g (5.64oz) |
| Working Temperature | -40～60 degrees Celsius |
| Storage temperature | -20～55 degrees Celsius |
| ACCESSORIES | |
| Standard Accessories | USB cable, Charger, Manual, Driver CD, Universal metal clip, Vehicle mounting |

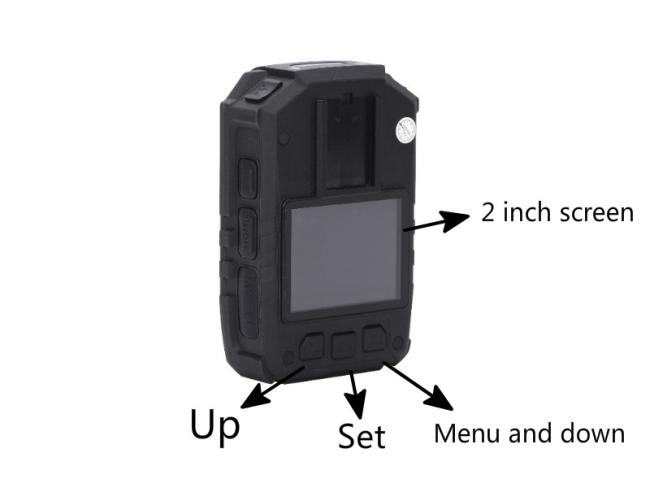

The image of 4G body camera
Recoda VMMS software
VMMS software was developed by RECODA software team. It is a PC software including: VMMS Client software ,server software ,playback software and auto download software.
Main Functions:
Remote real-time video monitoring via 4G or wifi.
GPS live tracking, historical track playback
Two way voice intercom,
Sending alarm information to client software
Remote video recording, remote video downloading,remote video playback,
Auto download via WIFI or 4G/3G
Remote upgrading and configuration
