C801-AHD Waterproof IP67 Front / Rear View Vehicle Surveillance Cameras IR Night Vision
Waterproof IP67 Front / Rear view Vehicle car Cameras IR night vision
Detailed Product Description
- 120 degree wide angle viewing helps to reduce accidents & injuries
- 18 IR LEDs up to 10 meters(Night Vision Automatic)
- Made of Aluminum-magnesium alloy, abrasion resistance
- Waterproof design, pass rigorous flooding test
- Easy to adjust the unit angle and easy to mount
- Applicable to most vehicles, like car, truck

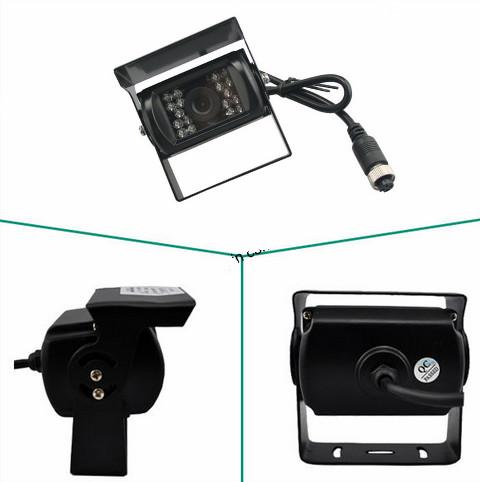

C801-AHD is the front/rear view camera used for outdoors. The C801-AHD vehicle mounted camera has super waterproof to resist the harsh environment. It has 1 megapixel ,1.3 megapixel and 2 megapixel to choose. And the Technical Specifications are as follow.
Specification
| Model NO | C801-AHD ( 1MP ) | C801-AHD ( 1.3MP ) | C801-AHD ( 2MP ) | ||
| Type | Front / Rear view waterproof camera | ||||
| Image Sensor | 1/4” CMOS Sensor AR0130 | 1/3”CMOS Sensor AR0130 | 1/3 CMOS Aptina 0230 | ||
| TV System | PAL/NTSC | ||||
| Effective pixels | 1MP | 1.3MP | 2MP | ||
| Picture Elements | 1280(H)*720(V) | 1280(H)*960(V) | 1280(H)*1080(V) | ||
| S/N Ratio | More Than 44 dB | More Than 44 dB | More than 72 dB, (AGC Off) | ||
| Infrared Spectrum | 850nm | N/A | 850nm | ||
| Min. Illumination | 0.01Lux(Color) / 0 Lux IR On | ||||
| White Balance | Auto | ||||
| Infrared LED | 18 LEDS | ||||
| Infrared LED Range | 10-15M | ||||
| Lens | Megapixel fixed Lens 3.6mm/6mm | ||||
| Pan Adjusting | N/A | ||||
| Tilt Adjusting | 0-60 Degree | ||||
| Power Consumption | 110mA | 80mA | 210mA | ||
| Input Voltage | DC12V±10% | ||||
| Weight | 435g | ||||
| Dimension | L69 x W76 x H78 mm | ||||
| Video Output | 1 Vp-p, 75ΩComposite, 4 ways Din Jack | ||||
| Operating Temp | -10°C to +50°C | ||||
| Waterproof Rating | IP68 | ||||
Our Company

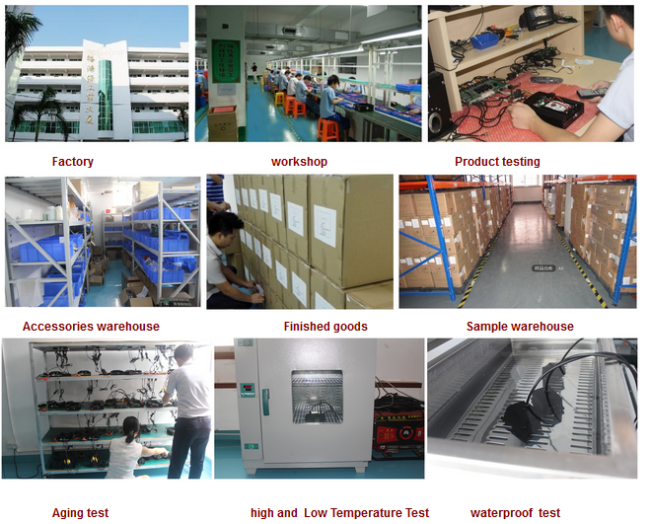

Shenzhen Recoda Technologies Limited, is one of the leading vehicle surveillance system developers & manufacturers in China nowadays. We specialize in manufacturing R&D of body worn camera recorder for police car and Law Enforcement agencies & Mobile DVRs for bus, taxi, police car for over 10 years. Currently, all items are exported to America, Europe, Australia and other Asian countries. Recoda have over 40,000 systems installations all over the world.
Our staff committed to the highest customer service and will work with you to assist with the selection of the right product every time, with quick, on-time delivery.
