Ambarella A7 Chipset 140 Degrees HDMI1.3 Police Body Worn Camera
HD Data Out Put Body Worn Camera IP 67 Waterproof With GPS
A feature-packed body-worn camera at an affordable price. Rugged and durable enough to handle the roughest conditions and recording crystal-clear HD night vision video, Recoda® is the body-worn camera system for everyone - because Truth matters.
Main Features
- Ambarella A7 Super Clear Chipset
- 32 Megapixel Camera
- 2900 or 4000 MAH Battery ,11hours work time
- True 1440P Super HD Video
- One Touch Recording
- 140°field of view
- Infrared Night Vision Option
- Pre and Post Event Recording
- Included Software
- User ID,Date＆Time Stamp
- IP 67 water,drop and shock resistant
- 16GB/32GB/64GB/128GB available
- Built-in GPS, 4G WIFI (Optional)
Specification :
| RECORDING | |
| Sensor |
5MP COMS HD LENS
|
| Chipset | Ambarella A7LA50 |
| Top pixel |
Up to 32M(7600x4275 16:9) (5M/8M/10M/12M/16M/21M)
|
| Video Resolution |
2304*1296 / 1920*1080 / 1440*1080 / 1280*720 /
848*480 / 720*480 30p
1280*720 / 848*480 60p
|
| Video Format | H.264 .AVI/MPEG4 |
| Fast forward | 2X, 4X, 8X, 16X, 32X, 64X |
| REW | 2X, 4X, 8X, 16X, 32X, 64X |
| Audio | High Quality Build-in Microphone. |
| Audio Format | AAC2./MP3 |
| Water Mark | User ID, Time and date Stamp Imbedded into Video. |
| Camera | 32 Megapixel Camera option with optional burst shot(3 or 5 photos) |
| Camera Format | JPEG |
| Snap Shot | Capture Photos During Video Recording |
| Recording Time |
Recording time is 11 hours (Fully charged battery,
Infrared off,Resolution is 720*480)
|
| Storage Capacity | 16G(32G/64G) |
| Storage Level | Visual Indicator |
| Record Led | Red |
| One Button Recording | Support One Button Record |
| Activation prompt | Audible, Visual, and Tactile Vibration Confirm Activation of Record and Stop |
| Pre-record function | ≥10s pre-record. |
| Last-record function | ≥10s last-record |
| Video quality | Best/better/normal |
| Video section | 5min/10min/15min/30min/45min |
| Burst | 2/3/5/10/15/20 Shot burst picture taking |
| Red IR switch | Auto/manual |
| Motion detection | Auto/manual |
| Audio guide | Support |
| Chime | Support |
| GPS | Support (Build-in) optional |
| Language | Chinese/English/Others(OEM) |
| 4G | LTE/FDD Mode ,Real time Live View Stream, Point to Point (Optional) |
| WiFi |
802.11 b/g/n application support , live view stream, playback video files |
| Screen protection | 30s/1min/3min/5min |
| Timing photography | 5/10 Seconds |
| Brightness | Low/high |
| Auto turn off | 30s/1min/3min/5min |
| Key tone | Support |
| Sound volume | Support |
| File type | Police control/criminal inspection/public security |
| Slide | Support |
| VIDEO/IMAGE REVIEW | |
| LCD Screen | 2 inch TFT-LCD High-Resolution Color Display |
| Audio Playback | Yes |
| Video Output | HDMI 1.3 Port |
| Video Transfer | USB 2.0 |
| CAMERA | |
| Recording Angle | Wide Angle 140 degrees |
| Night Vision | Up to 10 Meters with Visible Face Detection |
| Waterproof | IP67 |
| Clip | High Quality Metal Clip with 360 degrees Rotation |
| PTT | Can Connect to Different Types of Radios |
| BATTERY | |
| Type | Built-in 2400mAH Lithium |
| Charging Time |
5-5.5 hours
|
|
Continuous use
time
|
11-12 hours
|
| Battery Level | Visual Indicator |
| OTHERS | |
| Unique ID number/unit | Include 5 digit device ID and 6 digit police ID |
| Password protect |
To set an administrator password to allow deletion via software. |
| Dimension | 96 mm *62 mm *31mm (2.91” * 1.83” *0.93”) |
| Weight | 160g (5.64oz) |
| Working Temperature | -40～60 degrees Celsius |
| Storage temperature | -20～55 degrees Celsius |
| ACCESSORIES | |
| Standard Accessories | USB cable, Charger, Manual, Driver CD, Universal metal clip, Vehicle mounting |
PICTURES:
Recoda VMMS software
VMMS software was developed by RECODA software team. It is a PC software including: VMMS Client software ,server software ,playback software and auto download software.
Other Functions:

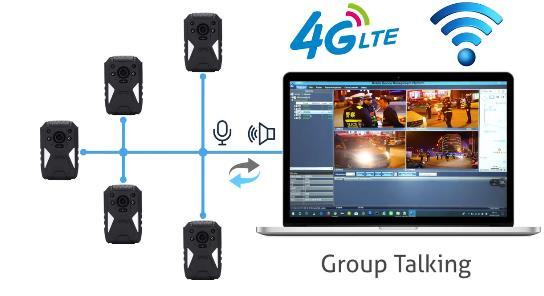

1. Live Video

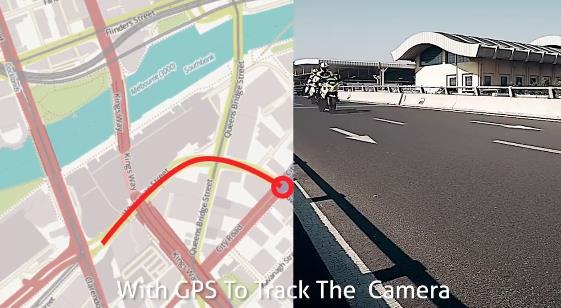

2. GPS Tracking
3. Video remote playback
4. 4G data flow statistics.
5. Map fencing
6. Video pop up when alarm
7. Cut oil remotely
8. Track PlayBack
9. PTT function
10. Wifi date remote Download
