1W 3D DNR 800TVL Pinhole Hidden Camera CCD Analog
MOQ:
1
Delivery Time:
Negotiable
Brand:
Recoda
Product Description
Low Lux 3D DNR 800TVL pinhole micro hidden camera Sony Lens CCD Analog Camera
Model:RCDP4.
1/3’SONY SuperExview CCD II
Resolution:800 TV lines
Low Lux ,Minimum Illumination: Colour:0.001lux;B/W:0.0005LUX,F1.2
Super WDR,D-WDR, HLC,BLC
OSD Menu, Defog, Motion Detection, Privacy Mask
3D DNR
D-Zoom: 0~255
DC12V/1A Power supply
| Model | RCDP4 |
|
Image sensor |
1/3’SONY double-scan CCD II |
|
Effective pixels |
NTSC: 976(H)×494(V) |
| PAL:976(H) X582(V) | |
| Scanning system | Interline-scan |
| Synchronization | Internal Synchronization |
| Resolution | 800 TVL |
| OSD menu | YES |
| Lens | 2.5/3.7mm(Pinhole) |
| WDR/BLC | WDR/D-WDR/HLC/BLC |
| Privacy Masking | 15 zones |
|
Motion Detection |
4 zones |
| DNR | 3D |
| Day/Night | Auto/Colors/ Black&White |
| Gamma | 0.45 |
|
S/N Ratio |
≥50dB(AGC OFF) |
| Min Illumination | Colour:0.001lux;B/W:0.0005LUX,F1.2 |
| Lens focus | 3.7/2.5mm(Pinhole) |
| Gain control | Auto/Manual |
|
Shutter Speed |
1/50 ~ 1/100,000(NTSC), 1/60 ~ 100,000(PAL) |
| White Balance | AUTO/PUSH/User1/User2/Manual/PUSH LOCK |
| Acutance | 0~15 |
| D-Zoom | 0~255 |
| Language | Multi-languages |
|
Video output |
1.0Vp-p,75Ω |
|
Input Voltage |
DC12V±10% |
| Power Consumption | 1W(Max) |
| Weight | 150g |
| Operating Temp | ﹣15℃～＋50℃ |
| Storage Hum | 30%RH~80%RH |

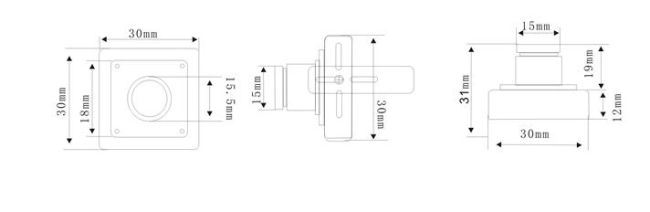

| Dimension |
30x30x19mm
|
