HD 80mA 850nm 6mm Lens Vehicle Mounted Cameras car recorder camera
1. New AHD Vehicle Front / Rear / Side View Waterproof 720P / 1080P Car Camera

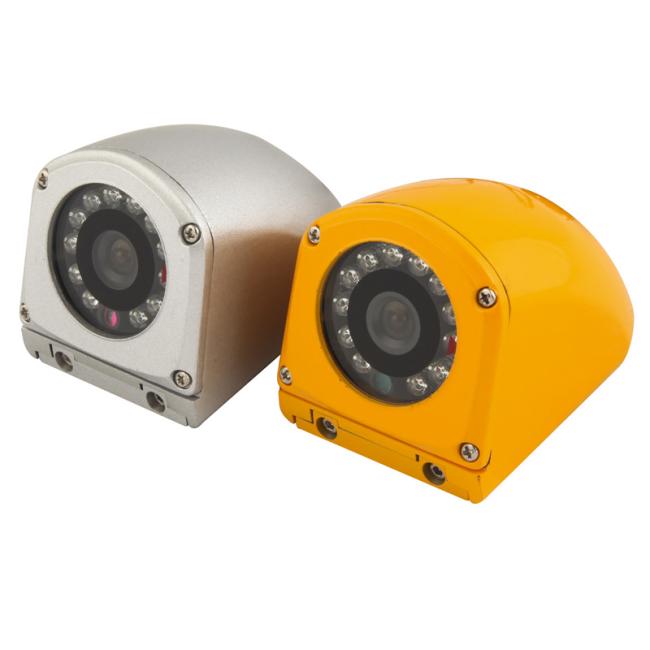

The Micro Exterior camera is ideal for tight spots and side views such as on the underside of mirrors or on fenders. The unique slim cable connection fits through tight panel gaps, increasing versatility during installation and retains an OEM look. The Micro Exterior camera can be rotated 360°, allowing one model to be used for both left and right side applications.
Specifications:
| Model NO | CM03-AHD ( 1MP ) | CM03-AHD ( 1.3MP ) | CM03-AHD ( 2MP ) | ||
| Type | Side view 1080P car camera | ||||
| Image Sensor | 1/4” CMOS Sensor AR0130 | 1/3”CMOS Sensor AR0130 | 1/2.9” CMOS Sensor SONY322 | ||
| TV System | PAL/NTSC | ||||
| Effective pixels | 1MP | 1.3MP | 2MP | ||
| Picture Elements | 1280(H)*720(V) | 1280(H)*960(V) | 1920H x 1080 V | ||
| S/N Ratio | More Than 44 dB | More Than 44 dB | More than 50 dB | ||
| Infrared Spectrum | 850nm | N/A | 850nm or 940 nm | ||
| Min. Illumination | 0.01Lux(Color) / 0 Lux IR On | ||||
| White Balance | Auto | ||||
| Infrared LED | 10 LEDS | ||||
| Infrared LED Range | 8M | ||||
| Lens | Megapixel fixed Lens 3.6mm/6mm | ||||
| Power Consumption | 110mA | 80mA | 160mA | ||
| Input Voltage | DC12V±10% | ||||
| Weight | 265g | ||||
| Dimension | 90 (L) ×75 (w) ×60 (H) mm | ||||
| Video Output | 1 Vp-p, 75ΩComposite, 4 ways Din Jack | ||||
| Operating Temp | -10°C to +50°C | ||||
| Waterproof Rating | IP68 | ||||
FAG
Q1.How to order from us
1. Please confirm the model numbers and quantities that you would like to purchase
2. We will send you a Proforma Invoice to specify net cost of mentioned goods and other relevant charges once you confirm the order.
3. After you arrange the payment and send us your bank slip, we will put your order down to production, and let you know the ready date in 2 days.
4. When the goods are finished, we will send them by air express, or by sea, or other available shipping methods appointed by customers, and let you know the tracking number and estimated time of arrival.
Q2.Do you offer free sample?
Yes, we offer free samples. But you would pay sample fee firstly and sample fee will be returned when massive order is placed.
Q3.How does you ensure the quality of products
All goods are 100% inspected before shipping, we do at least 5 test, including In-coming raw material test, sample test then bulk produce, functional test, burn-in test, appearance inspection.
Q4.Lead Time
1. Sample order can be delivered from our factory in 3 working days.
2. General order can be delivered from our factory in 3-5 working days.
3. Big order can be delivered from our factory in 15-35 working days at most.
Q5.Technical Support
We have strong R&D team to support our customers, and if you have any question for the technology of our products, please email to us, reply will be sent to you immediately;
Also if you have any doubt for the information on our website or any feedback for the quality of our products, please email to us, and thanks for your all comments in advance.
.
