4CH Hard Drive Mobile Vehicle DVR Full HD 1080P Car DVR With GPS WIFI
M720 is a 1080P AHD Mobile vehicle DVR Support 4 cameras in 1080P resolution with 3G/ 4G GPS and WIFI optional,It is a 4-channel MDVR, and it is a dual storage mode of hard disk and SD Card.
Main Features:
- HIS Solution,H.264 Compression,support 4ch 1080P AHD input.
- Hybrid DVR ,4 channel AHD input,CVI,TVI or CVBS optional
- Exclusive pre-allocate File System protect data completeness,prevent SD Card fragment,ensure date stablely and completely.
- 10-36V wide voltage with low power consumption.
- Unique UPS Technology ensures the integrality of record when power failure occurs,even can for 8-10s.HDD+SD Card Storage ( Support Max2.5” HDD, max 128G SD Card) protect from Shock & Dust damage;support USB port data backup and device update;
- Support HDD heating functions,can work in harsh environment.
- Support GPS/BD/G-Sensor Extension module;
- Realize real time monitor through 3G/4G;
- Support to connect OBD on the vehicles
- Support Broadcast/Intercom/Text sent etc;can add oil sensor/temperature sensor/POS/LED Advertisement Panel;
- Support IOS/Android Phone Remote monitor
Product Parameter:
| Item | Parameter | ||
| OS | Linux | ||
| Language | English/Chinese/Customized | ||
| Video Compression | H.264 Compression | ||
| OSD | Overlays information such as date time and vehicle ID | ||
| GUI | Graphical User Interface | Setup system parameters with the remote control. | |
|
Video Record System |
Video Input |
4CH AHD input,CVI,TVI or CVBS aviation connector, 1.0Vp-p, 75Ω |
|
| Video Onput | 1 CVBS, 1.0Vp-p, 75Ω,Aviation,Support 1CH Full Screen,4CH Screen view | ||
| Preview |
Support 1 channel and 4 channels preview., Support Manual/Alarm Trigger full screen preview |
||
| Resolution | 1080P/720P/D1/HD1/CIF, MAX:4 channels of 1080P | ||
| Image Quality | 0-7 levels, 0 is the highest level. | ||
| Video Standard |
PAL: 100f/s , CCIR625 line,50field; NTSC: 120f/s, CCIR525 line,60field; CIF: 256Kbps ~ 1.5Mbps, 8 level video quality optional; HD1: 600Kbps ~ 2.5Mbps, 8 level video quality optional; D1: 800Kbps ~ 3Mbps, 8 level video quality optional; 720P: 4Mbps-6Mbps, multi level video quality optional 1080P:4Mbps-8Mbps,multi level video quality optional |
||
| Record Mode |
The default setting is auto recording after power on. Timed recording, alarm trigger recording and manual recording are supported. |
||
| Audio | Audio Input | 4CH Aviation Plug Input | |
| Audio Output | 2CH,headphone connect at front panel, BNC Connect on Back panel | ||
| Compression | G.726 compression, 8KB/s speed | ||
| Alarm Input | 6CH Alarm Input,1CH AD Input,impulse speed input,Alarm Linkage | ||
| Alarm Output | 2CH Alarm Output,Support Light/Sound alarm sensor,Oil/Power cut off | ||
| Interface |
2CH RS232 to connect OBD, POS/Fuel Sensor/LED Advertisement Connection
|
||
| 1CH 485 Interface,Connect PTZ Camera | |||
| Wireless Transmission |
Support Built in 3G transmission,, WCDMA, CDMA2000,GPRS, EDGE; Built in 4G module optional, TDD-LTE, FDD-LTE |
||
| GPS Position | Support Built GPS/BD Module | ||
| HDD | Max 2.5” 2TB HDD | ||
| Storage | SD Card | Max 128GB SD Card Mirror Recording Keep Data Safety | |
| Update | Support USB Updating, SD Card Updating,OTA Remote Updating | ||
| File Format | H.264 | ||
| File System | Special FAT32 File System | ||
| USB | USB Interface on Front Panel for data back up by U Disk,Hard Disk | ||
| Record Replay | Video Search | Search By Record Time/Record Type etc | |
| Playback | Max support 4CH Replay /Stop/Fast/Slow at same time | ||
| Support forward and backward play at the speed of: x 2,x4,x8,x16. | |||
| Security | User/Admin 2 Level Different Password | ||
| Optional Functions | Voice Call | Support voice call each other | |
| TTS Voice Broadcast | Support TTS voice broadcast function. | ||
| Serial Expand |
Support LED Advertisement Panel,Oil Sensor, POS,Bus Station Broadcaster,Car OBD,ect.external device |
||
| Voltage & Power | Power Management | Wide Voltage.Support Timed/Delay off | |
| Input Voltage | DC:+10V - +36V | ||
| Output Voltage | +12V~1.5A,+5V~1.5A | ||
| Power | Working <5W | ||
| Working Environment | Temperature | -20℃ - +70℃ | |
| Humidity | 20% - 80% | ||
| Ohters |
Size
|
218 (D)* 161(W)* 65(H) mm | |
| Net Weight | 2.2 Kg | ||

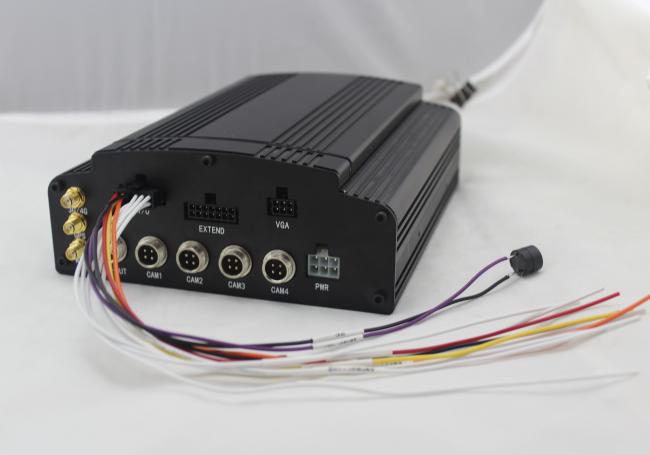

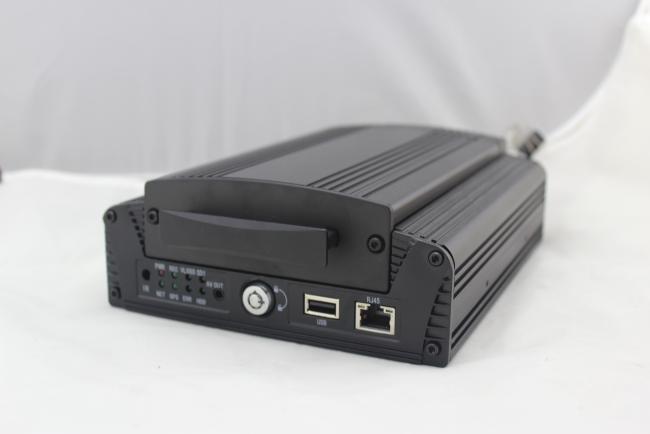

Mobile DVR Details:

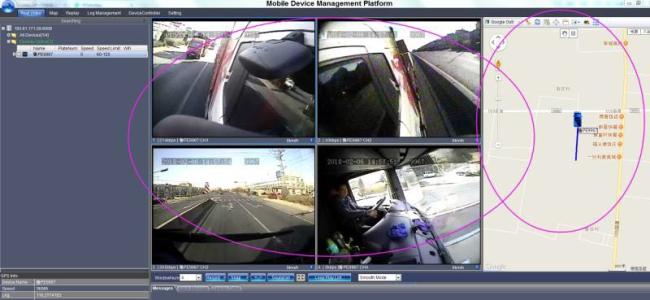

About Recoda software:
We have our R&D team to write our own functional CMS software, so we can customized to make special software or firmware for our close distributor or big order.
Recoda software includes Client software, player software, downloading software.
Welcome to test our mobile DVR software before ordering.
