NTSC 8CH 1080P HD Mobile DVR 4G WiFi GPS MDVR For Car Bus

Price Negotiable

Price: negotation

MOQ: 1

Delivery Time: For sample, 3-5days after receiving the payment. For bulk, depen

Brand: Recoda

Product Description

8CH 1080P HD Mobile DVR 4G WiFi GPS MDVR With Car/Bus/Truck/Vehicles

Main Features

Support HDD heating functions,can work in harsh environment.
Support GPS/BD/G-Sensor Extension module;
Realize real time monitor through 3G/4G;
Support to connect OBD on the vehicles
Support Broadcast/Intercom/Text sent etc;can add oil sensor/temperature sensor/POS/LED Advertisement Panel;

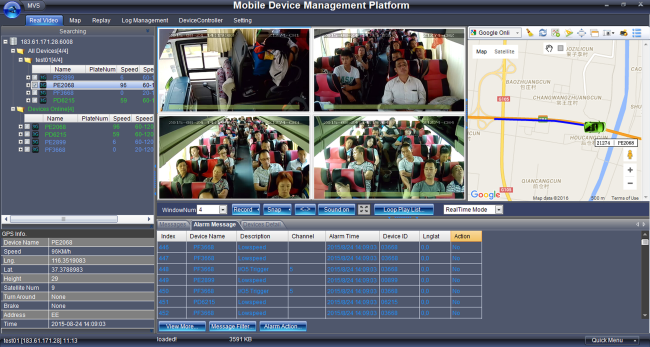

Support IOS/Android Phone Remote monitor

Technical Specification

Item			Parameter
OS			Linux
Language			English/Chinese/Customized
Video Compression			H.264 Compression
OSD			Overlays information such as date time and vehicle ID
GUI	Graphical User Interface		Setup system parameters with the remote control.
Video Record System	Video Input		8CH AHD input,CVI,TVI or CVBS aviation connector, 1.0Vp-p, 75Ω
	Video Onput		1 CVBS, 1.0Vp-p, 75Ω,Aviation,Support 1CH Full Screen,4CH Screen view
	Preview		Support 1 channel and 4 channels preview., Support Manual/Alarm Trigger full screen preview
	Resolution		1080P/720P/D1/HD1/CIF, MAX:8 channels of 1080P
	Image Quality		0-7 levels, 0 is the highest level.
	Video Standard		PAL: 100f/s , CCIR625 line,50field; NTSC: 120f/s, CCIR525 line,60field; CIF: 256Kbps ~ 1.5Mbps, 8 level video quality optional; HD1: 600Kbps ~ 2.5Mbps, 8 level video quality optional; D1: 800Kbps ~ 3Mbps, 8 level video quality optional; 720P: 4Mbps-6Mbps, multi level video quality optional 1080P:4Mbps-8Mbps,multi level video quality optional
	Record Mode		The default setting is auto recording after power on. Timed recording, alarm trigger recording and manual recording are supported.
Audio	Audio Input		8CH Aviation Plug Input
	Audio Output		2CH,headphone connect at front panel, BNC Connect on Back panel
	Compression		G.726 compression, 8KB/s speed
Alarm Input			6CH Alarm Input,1CH AD Input,impulse speed input,Alarm Linkage
Alarm Output			2CH Alarm Output,Support Light/Sound alarm sensor,Oil/Power cut off
Interface			2CH RS232 to connect OBD, POS/Fuel Sensor/LED Advertisement Connection
			1CH 485 Interface,Connect PTZ Camera
Wireless Transmission			Support Built in 3G transmission,, WCDMA, CDMA2000,GPRS, EDGE; Built in 4G module optional, TDD-LTE, FDD-LTE
GPS Position			Support Built GPS/BD Module
		HDD	Max 2.5” 2TB HDD
Storage		SD Card	Max 128GB SD Card Mirror Recording Keep Data Safety
		Update	Support USB Updating, SD Card Updating,OTA Remote Updating
		File Format	H.264
		File System	Special FAT32 File System
		USB	USB Interface on Front Panel for data back up by U Disk,Hard Disk
Record Replay		Video Search	Search By Record Time/Record Type etc
		Playback	Max support 4CH Replay /Stop/Fast/Slow at same time
			Support forward and backward play at the speed of: x 2,x4,x8,x16.
Security			User/Admin 2 Level Different Password
Optional Functions		Voice Call	Support voice call each other
		TTS Voice Broadcast	Support TTS voice broadcast function.
		Serial Expand	Support LED Advertisement Panel,Oil Sensor, POS,Bus Station Broadcaster,Car OBD,ect.external device
Voltage & Power		Power Management	Wide Voltage.Support Timed/Delay off
		Input Voltage	DC:+10V - +36V
		Output Voltage	+12V~1.5A,+5V~1.5A
		Power	Working <5W
Working Environment		Temperature	-20℃ - +70℃
		Humidity	20% - 80%
Ohters		Size	218 (D)* 161(W)* 65(H) mm
		Net Weight	2.2 Kg
