C807-AHD 150mA NTSC IR Dome Camera 1.3MP 2MP Waterproof
IR Dome Camera waterproof Vehicle Surveillance Cameras Metal AHD 1.3MP / 2MP
Product Description
The C807-AHD is a high-performance camera specially designed for mobile video surveillance in buses, trains, taxi and emergency vehicles. The camera has protection against dust and water, and can withstand tough conditions such as vibrations, shocks, bumps and temperature fluctuations. The vehicle mounted camera is designed for quick and reliable installation. The 1.3MP or 2MP C807-AHD vehicle mounted camera can be choosed. The vehicle dome camera has low power consumption.
Features of C807-AHD Vehicle Mounted Camera
- Metal-cased IP68 weatherproof micro dome with fixed lens.
- Low power consumption.
- Easy installation on ceiling or wall, surface or flush mount.
- 10 Infrared LEDs. 5M IR Range
- 1.3MP, 2MP Optional
Specification
Model |
C807-AHD ( 2MP ) | C807-AHD ( 1.3MP ) |
| Type | Metal infrared dome camera | |
| Image Sensor | 1/2.8 Sony IMX222 | 1/3” CMOS Sensor AR0130 |
| TV System | PAL/NTSC(OPTIOAL) | |
| Picture Elements | 1920H x 1080 V | 1280(H)*960(V) |
| Sensitivity | 0 Lux (LED on) | |
| Scanning System | progressive scan RGB CMOS | |
| Synchronization | Internal | |
| Infrared Spectrum | 850nm or 940 nm | 850nm |
| S/N Ratio | More than 50 dB, (AGC Off) | More Than 44 dB, (AGC Off) |
| Auto Gain Control (AGC) | Auto | |
| White Balance | Auto | |
| Electronic Shutter | Auto | |
| Back Light Compensation | Auto | |
| Infrared LED | 10LEDs | |
| Infrared LED Range | 5 Meters | |
| Video Output | AHD 1 Vp-p, 75Ω, | |
| Audio Output | N/A | |
| Mirror | N/A | |
| Gamma Ratio | 0.45 | |
| Auto-iris Lens Control | N/A | |
| Lens | f3.6mm Megapixel | |
| Exterior Focus Adjustment | N/A | |
| View Angle | 90° (D) | |
| Pan Adjusting | +/-180 Degree | |
| Tilt Adjusting | 0-62 Degree | |
| Power Supply | 12V DC (9V~18V) | |
| Power Consumption | 150 mA | |
| Dimensions (ø X H) | 77 x 60.3 mm | |
| Net Weight | 200 g | |
| Weatherproof/Water Proof | Weatherproof (IP66 for top side) | |
| Operating Temperature | -25°C to +60°C | |

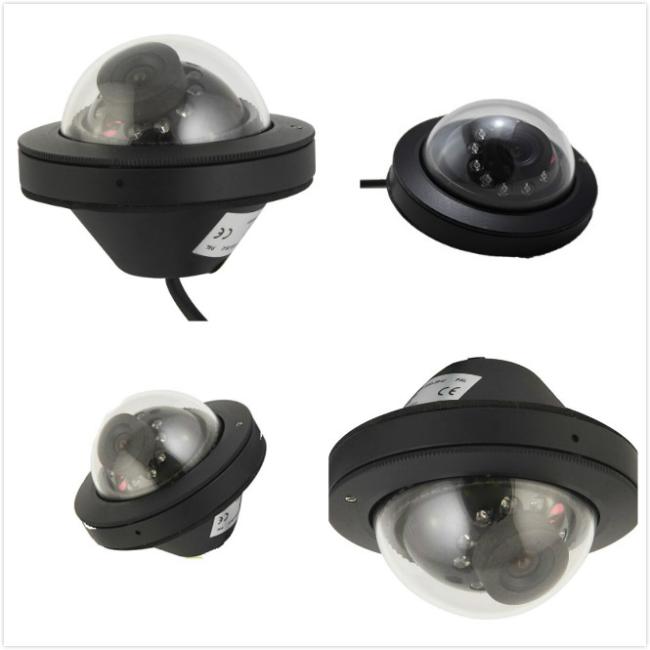

Product Pictures
