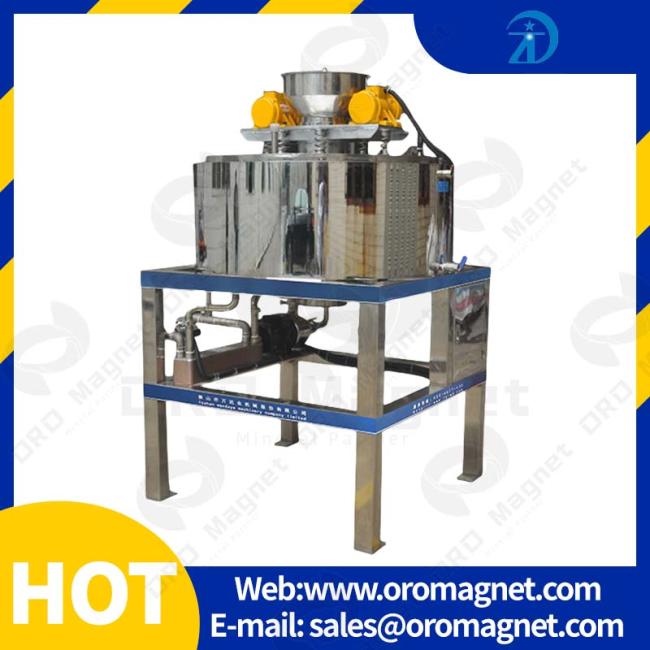

380v 30000gs Metal Magnetic Separation Equipment For Dry Quartz Powder
We are the Leading Manufacturer,Supplier and Exporter of Magnetic Drawer Housing in China, Foshan city, which is Manufactured from high quality stainless steel, these products are highly appreciated for their excellent performance, easy installation, and low maintenance. These drawer magnet units are available with multiple rows for effective operations. The individual rows can be removed for cleaning purposes. In addition to this, our customers can avail this product at standard prices.
Applications:
- Coal Industries
- Abrasive Industries
- Chemical Industries
- Paper and Pulp Industries
- Ceramic Industries
- Rubber Industries
- Petroleum Industries
- Animal Feed Industries
- Recycling Industries
- Mineral Processing
- Electromagnetic Separator have a deep penetrating magnetic field.
- Electromagnetic Separator needs low maintenance and are easy to install and operate.
- Electromagnetic Separator can function smoothly even in the hazardous environments.
- No manual cleaning is required and reduces downtime for the end user.
Technical parameter
| Model | 3A160 | 3A220 | 7A300 |
11A220 |
11A430 | 15A220 | 20A600 |
| Magnetic field strength(t) | 2 | 2 | 3 | 3 | 3 | 5 | 3 |
| Input voltage(VAC) | 380 | 220 | 380 | 380 | 380 | 380 | 380 |
| Maximun output current(A) | 15 | 7 | 20 | 20 | 20 | 30 | 40 |
| Maximum coil power(KW) | 3 | 3 | 7 | 11 | 11 | 15 | 20 |
| Insulation category | E | E | E | E | E | E | E |
| Cooling method | water and oil cooling | water and oil cooling | water and oil cooling | water and oil cooling | water and oil cooling | water and oil cooling | water and oil cooling |
| Magnetic lumen diameter(mm) | 160 | 220 | 300 | 220 | 430 | 220 | 600 |
| Yield(m3/h) | 0.5-1.5 | 1-3 | 1.5-4 | 0.5-3 | 1.5-6 | 1-3 | 3-8 |
| Dimension(mm) |
700*700 *1450 |
860*860 *1540 |
1320*1320 *2500 |
1300*110 *1800 |
1500*1500 *2500 |
1350*1100 *1850 |
1500*1500 *2000 |
| Main machine weight(kg) | 450 | 490 | 1020 | 1130 | 1210 | 1500 | 2000 |
| Usage | 60-300 mesh feedstock of iron elimination | ||||||
