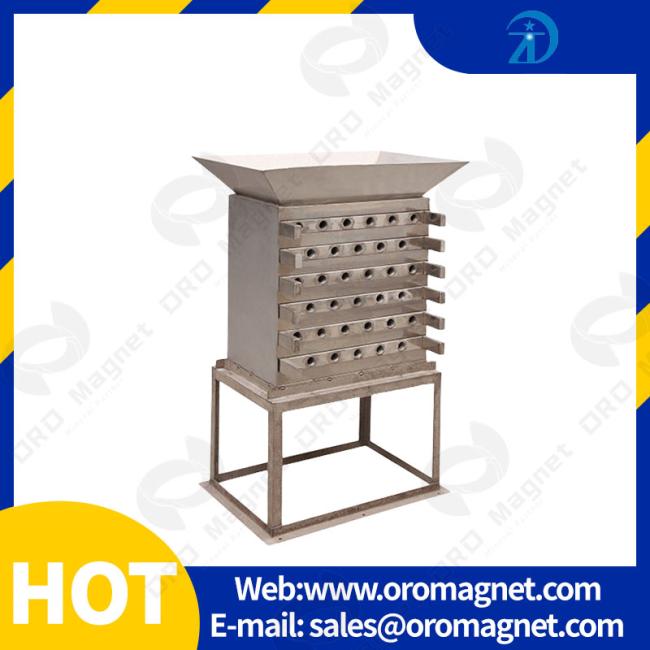

Rare Earth 5 Layer Drawer Magnets For Superior Contaminant Capture

Product Features

• Temperature-compensated, Rare Earth magnets for superior high temperature operation.
• Built out of rugged 11-gauge stainless steel housing built to support symmetrical compression loads of 10,000 pounds.
• The drawer gasket is cut from Ethylene Propylene Diene (EPDM), resisting heat aging and compression set and offers much greater durability than sponge rubber.
• Units are built with welded stainless steel housings for easy cleaning and durability.
• High-torque nylon knobs resist breakage.
• Stainless steel center drawer guide makes removal and re-installation of the magnet drawer quick and easy, for cleaning and maintenance.
• Most powdered colorants and resins slide off without sticking.
• Superior cartridge geometry increases reach-out and holding power.
• Robust construction prolongs cartridge life.

Operation process

(1) The drawer magnets can be fitted simply in existing pipe line or outlet of various equipments like pulverizers, blenders etc.
(2) Generally each unit comprises of permanent magnetic grids mounted one above the other.
(3) For special applications there are systems with multiple grids.
(4) The grids are easily removable for cleaning.
(5) Normally the ferrite or rare earth and NdFeB magnets are used in the drawer magnets.
(6) Certain types of drawer magnets handle a wide range of separation tasks in gravity conveying systems

Technology parameter

Application scope

(1) Mining industries
(2) Pharmaceuticals industries
(3) Food processing industries
(4) Industries dealing with powdery substance
(5) Cement, gypsum and other types of small scale industries.
