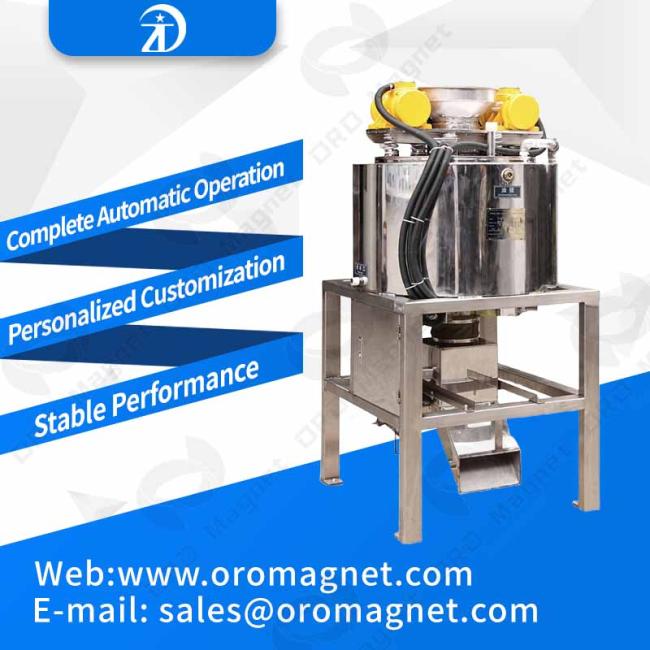

5T 380ACV 30DCA  Eletromagnetic separator for Dried-powder double cooling

Product characteristic

1. Can design different magnetic field intensity as the property of raw ores.

2. Doesn’t need to come over the gravity and resistance of the raw material.

3. With the mechanical vibrating equipment.

4. Efficiency of iron remove.

Operation process

Feed the dry powder from the hopper, meanwhile make the separator state at the magnetizing and run a vibrator. After a period ,stop feeding, cut off the magnetic device, run the other vibrator(keep the two vibrator running), poke the raffle of drain of material funnel into the iron discharge. Then discharge the magnetic material absorbed on the magnetic media relying on the vibrating force.

Application scope

Electromagnetic dried-powder separators are applied in process the fine mineral particle, the magnetic fine ferrous mineral particle such as  hematite, chromite, polianite; and also fine nonferrous metals mineral particle, for example wolframite; fine rare earth mineral particle, for example eremite; and fine nonmetallic mineral particle such as feldspar, quartz, kaolin.

Electromagnetic dried-powder separators are suitable for using at the drought and water shortage area.

Technical parameter
